Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
263
4

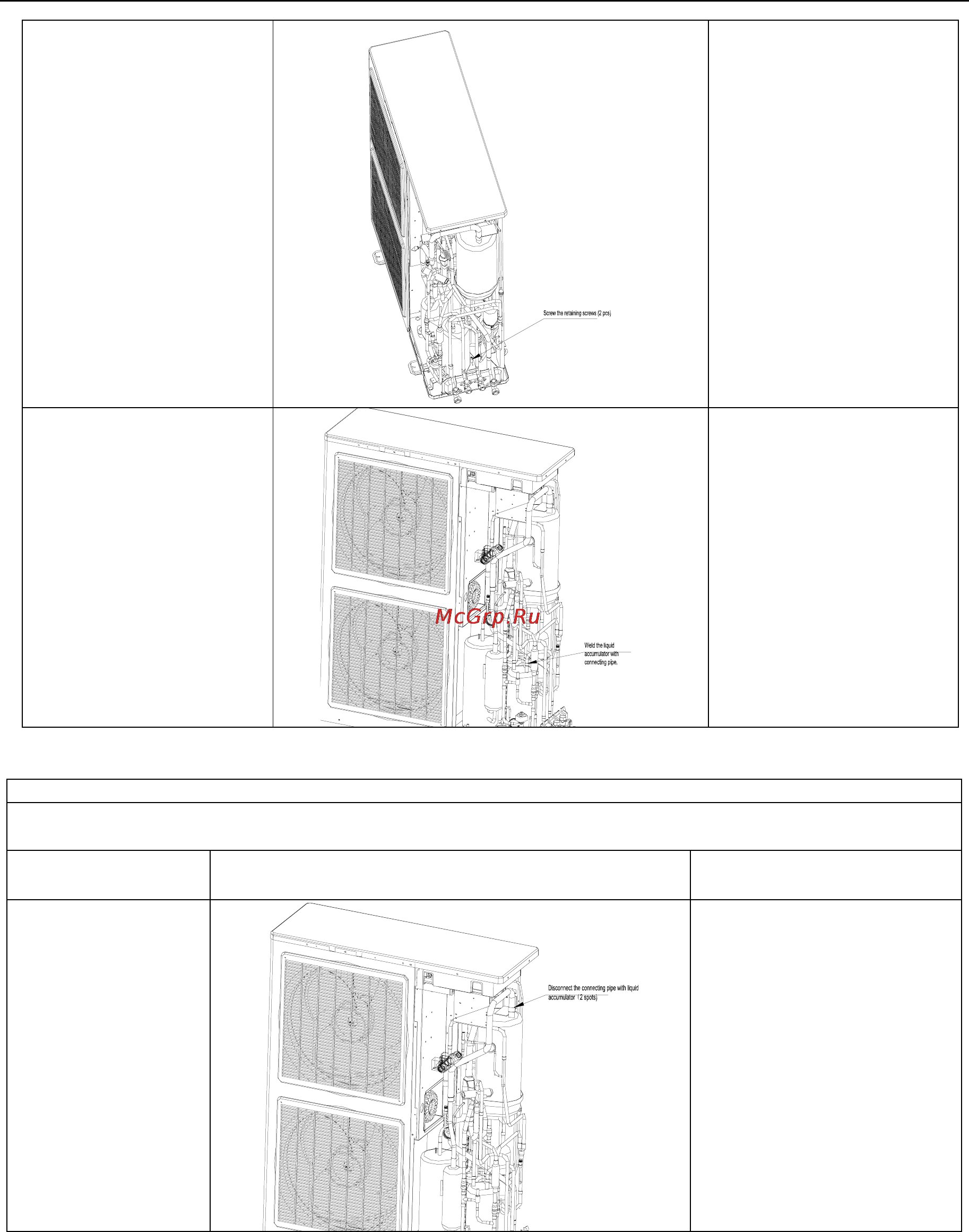

． Screw retaining screws
of liquid accumulator
●Screw retaining screws
of liquid accumulator
5 ． Weld the liquid
accumulator with
connecting pipe.
● Connect the liquid
accumulator and
connecting pipe
Note: keep the fire away
from other components
when welding.
Disassembly and Assembly of Gas-Liquid Separator
Remarks：Make sure that there isn’t any refrigerant in pipe system and the power supply is cut off before
removal of the gas liquid separator.
Step Illustration Handling Instruction
1. Disassembly of
gas liquid separator
●Unsolder two spots on gas-
liquid separator and then
unplug connecting pipe
Note: keep the fire away from
other components when
welding.
