Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
265
Disassembly and Assembly of Oil Separator
Remarks：Make sure that there isn’t any refrigerant in pipe system and the power supply is cut off before
removal of the oil separator.

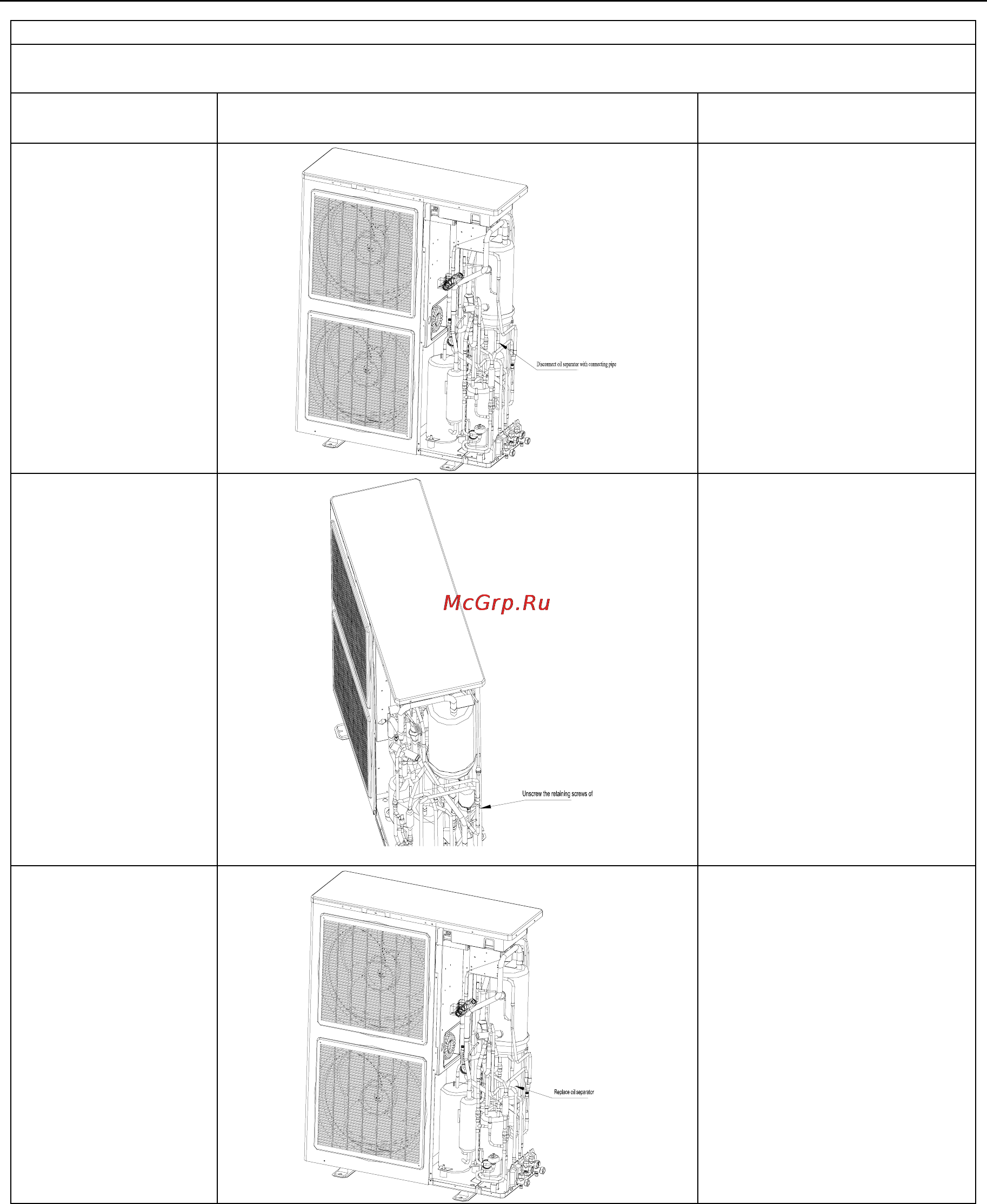

Step Illustration Handling Instruction
1. Disconnect oil
separator with
connecting pipe
● Unsolder three spots
connecting oil separator and
unplug the connecting pipe.
Note: keep the fire away from
other components when
welding.
2 ． Unscrew the
retaining screws of
oil separator
● Unscrew the retaining
screws of oil separator
3 ． Replace oil
separator
●Replace oil separator
