Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
266
4

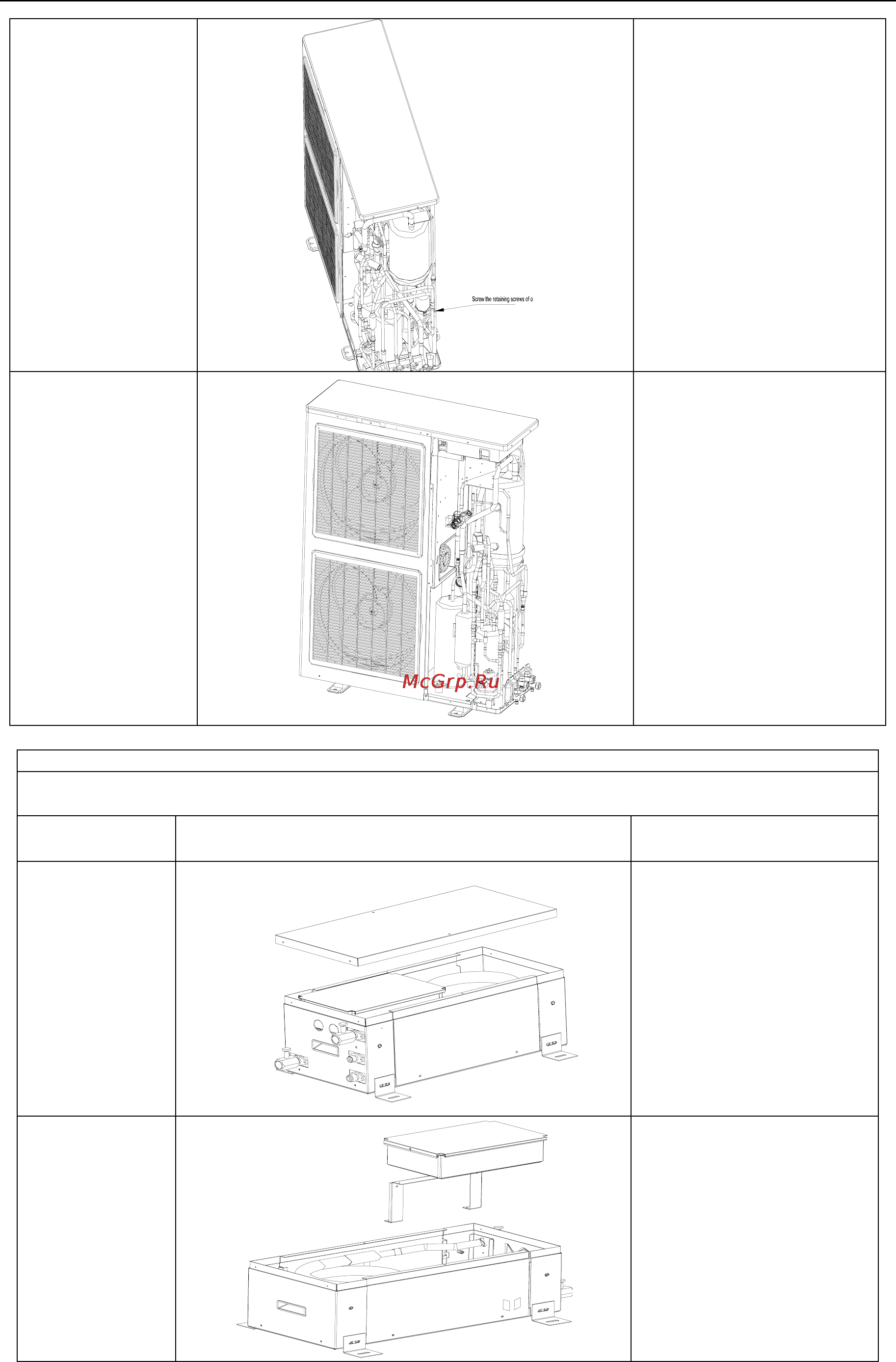

Screw the
retaining screws of
oil separator
Screw the retaining screws
of oil separator
5 Weld the oil
separator with
connecting pipe
Weld the oil separator with
connecting pipe.
Note: keep the fire away from
other components when
welding.
Disassembly and Assembly of Water Pump of Hydro-box
RemarksMake sure that there isn’t any refrigerant and water in pipe system and the power supply is cut off
before removal of hydro-box.The steps can be adjusted according to the practical situation
Step Illustration Handling Instruction
1 Remove the
top cover of
hydro-box
Unscrew the bolts and
remove hydro-box
Hold the top cover
2 Remove the
electric box and
one support of
electric box
Unscrew the bolts to
remove electric box of
hydro-box and its supports
Prevent them from
dropping off
