Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
267
3

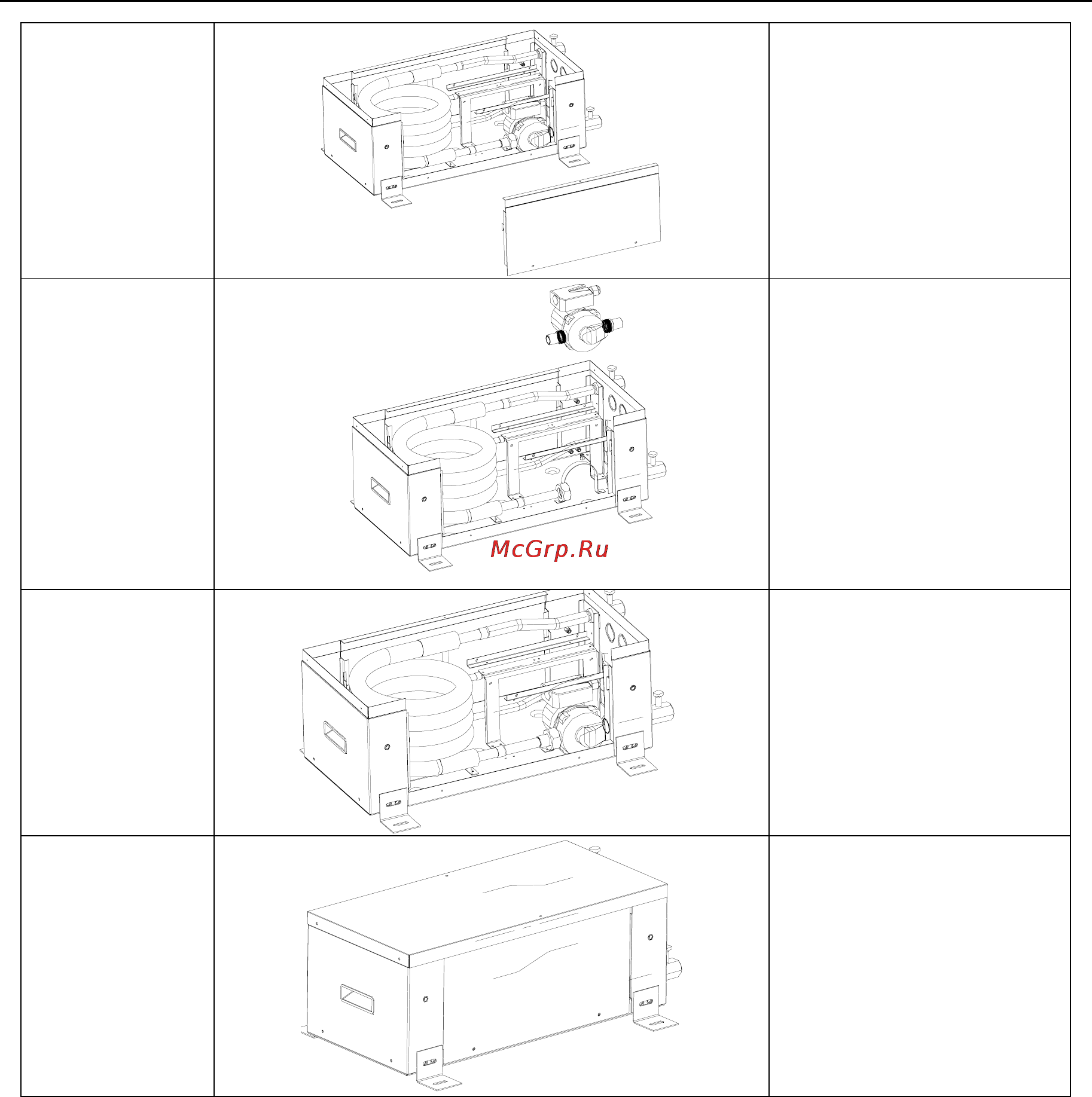

． The removal
of side plate shall
be based on
practical
situation.
● When the unit is in
suspension setting, remove
the side plate for
convenience of servicing.
4． Unscrew the
nuts on both
ends of water
pump to remove
it.
● Unscrew the nuts by
spanner.
5． Install a new
water pump and
screw the nuts.
●Install a new water pump
and screw the nuts.
6． Assemble the
electric box, its
support and the
side plate.
●Assemble the electric box,
its support and the side
plate.
