Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
268
4.2.2The Unit with Top Air Outlet GMV-Pds224W/Na-M.GMV-Pds280W/Na-M
Disassembly and Assembly of External Casing
Remark :

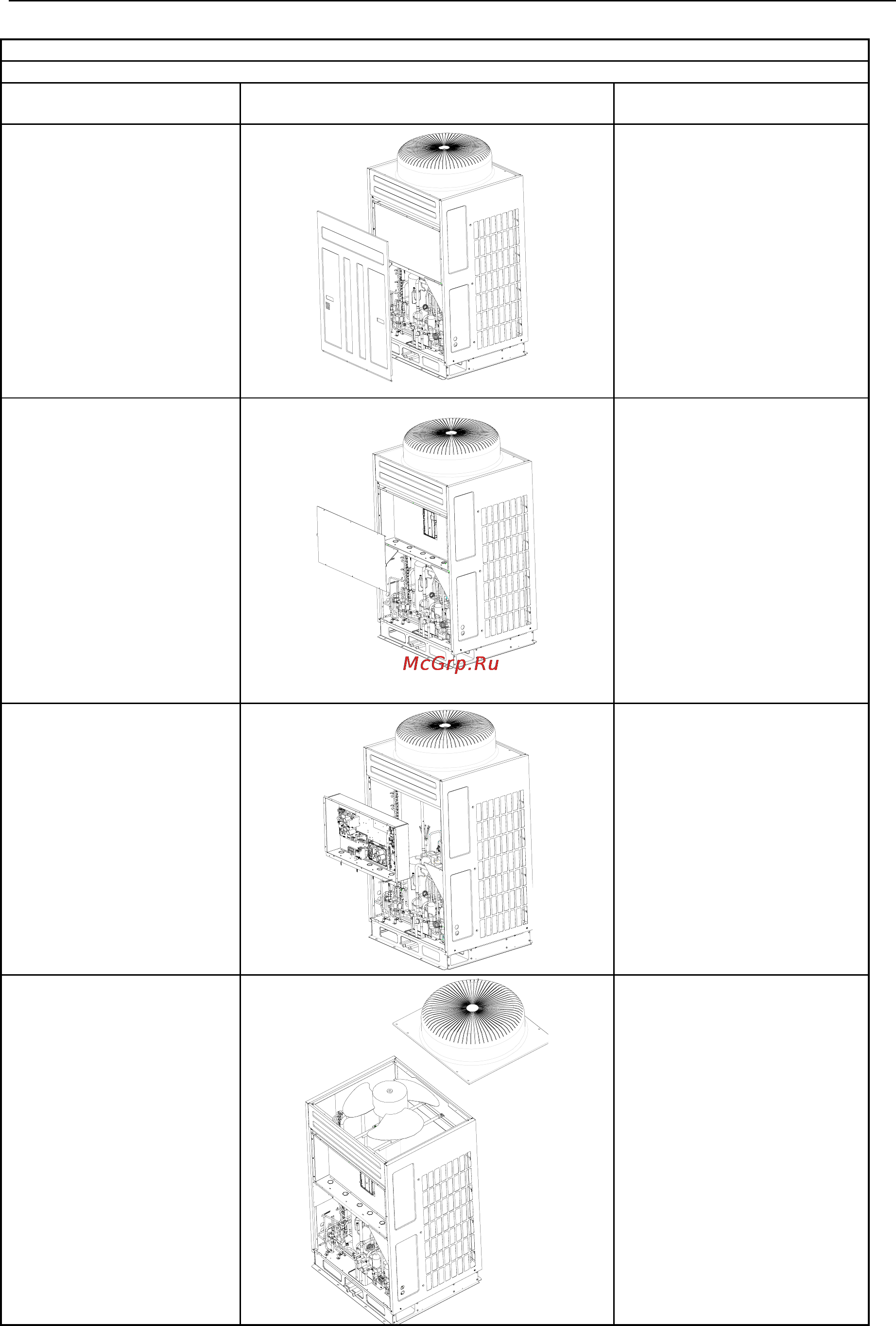

Step Illustration
Handling Instruction
1． Disassembly of the front
plate
①Unscrew the bolts.
②Remove the front plate
2．Disassembly of the cover
of electric box
①Unscrew srcews.
②Remove cover of electric
box
3 ． Disassemble electric
box
①Unplug each power cord
and communication wire from
mainboard.
②Unscrew bolts.
③Disassemble electric box
4． Disassemble dome
①Unscrew bolts
②Remove dome.
