Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
269
4

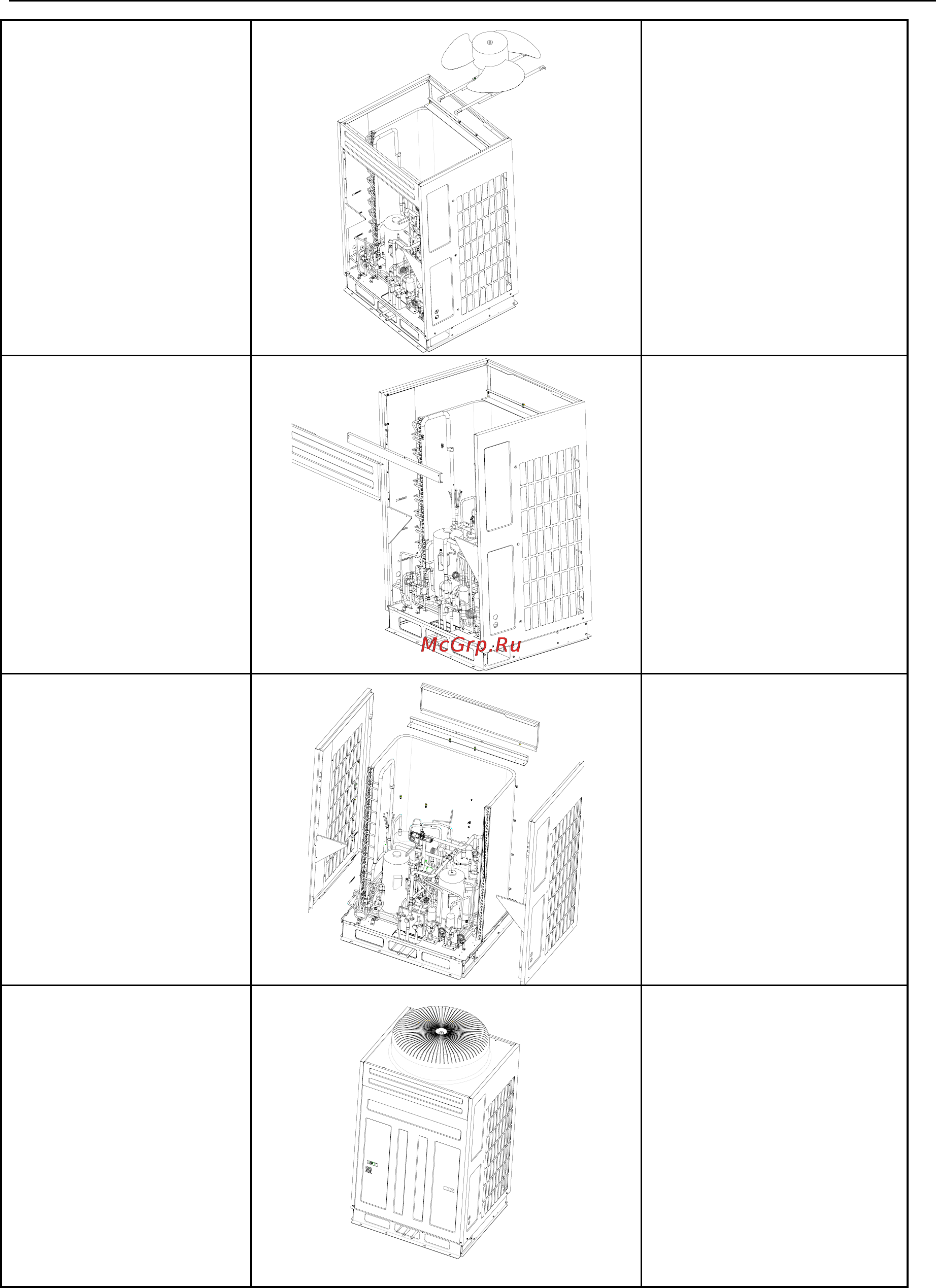

． Disassemble fan assy.
①Unscrew bolts
②Remove fan assy.
5． Disassemble front plate
1 and front lining board
sub-assy
①Unscrew the bolts
②Remove front plate 1
③Disassemble bolts
④ Remove the front lining
board sub-assy.
5． Disassemble left side
plate, right side plate, rear
lining board sub-assy and
rear cover plate.
①Unscrew bolts.
②Remove left side plate and
right side plate.
③Remove the bolts of rear
lining board sub-assy and rear
cover plate.
④Remove rear lining board
sub-assy and rear cover plate.
7． Assemble the unit by
reversed steps
●Assemble the unit by
reversed steps and inspect it.
