Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
271

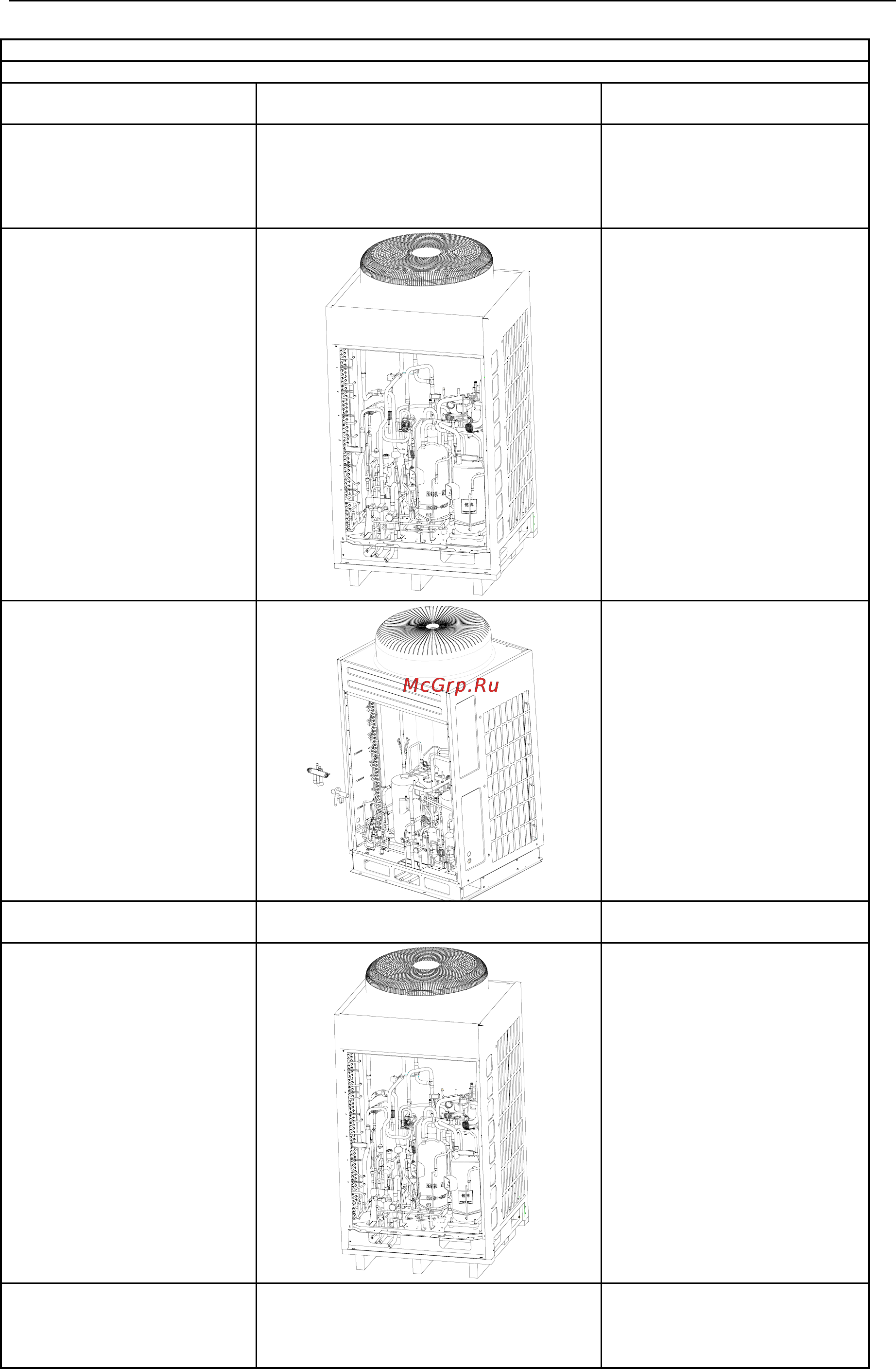

Disassembly and Assembly of 4-way valve
Remark :
Step Illustration
Handling Instruction
1. Remove the coil of 4-way
valve
①Use screwdriver to remove the
screws fixing the coil
②Remove the coil of 4-way
valve.
2．Use welding gun to
unsolder the four pipes
connected to 4-way valve
①Unsolder the pipe which
connects the 4-way valve (see
welding points in the picture)
3. Remove 4-way valve ①. Remove 4-way valve.
4. Install new 4-way valve ①Place 4-way valve on correct
position
5. Connect pipeline with
4-way valve.
① Re-weld the 4-way valve with
pipeline.
6. Install the coil of 4-way
valve
① Place the coil of 4-way valve
correctly.
② Tighten the screws with
screwdriver.
