Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
272

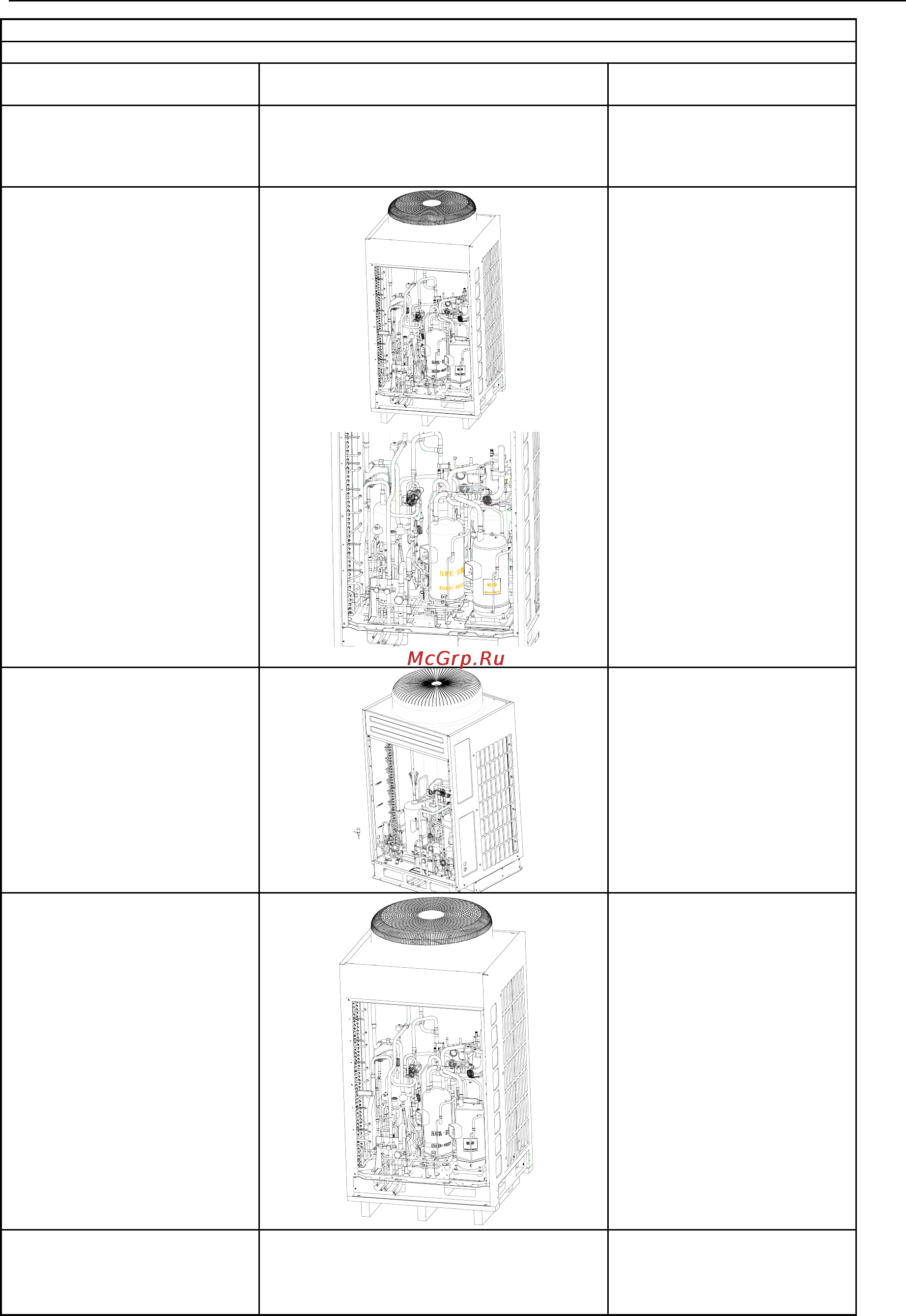

Disassembly and Assembly of electronic expansion valve
Remark :
Step Illustration Handling Instruction
1 ． Remove the coil of
electronic expansion valve
①Remove the coil of
electronic expansion valve
2 ． unsolder the pipes
connected to electronic
expansion valve
①Use welding gun to
unsolder the pipes
connected to electronic
expansion valve
3. Replace the electronic
expansion valve
①Install the new electric
expansion valve in correct
position.
4. Weld the electric expansion
valve with pipeline.
① Weld the electric
expansion valve with
pipeline.
5. Install the coil of electronic
expansion valve
①Install the coil of electronic
expansion valve
