Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
273

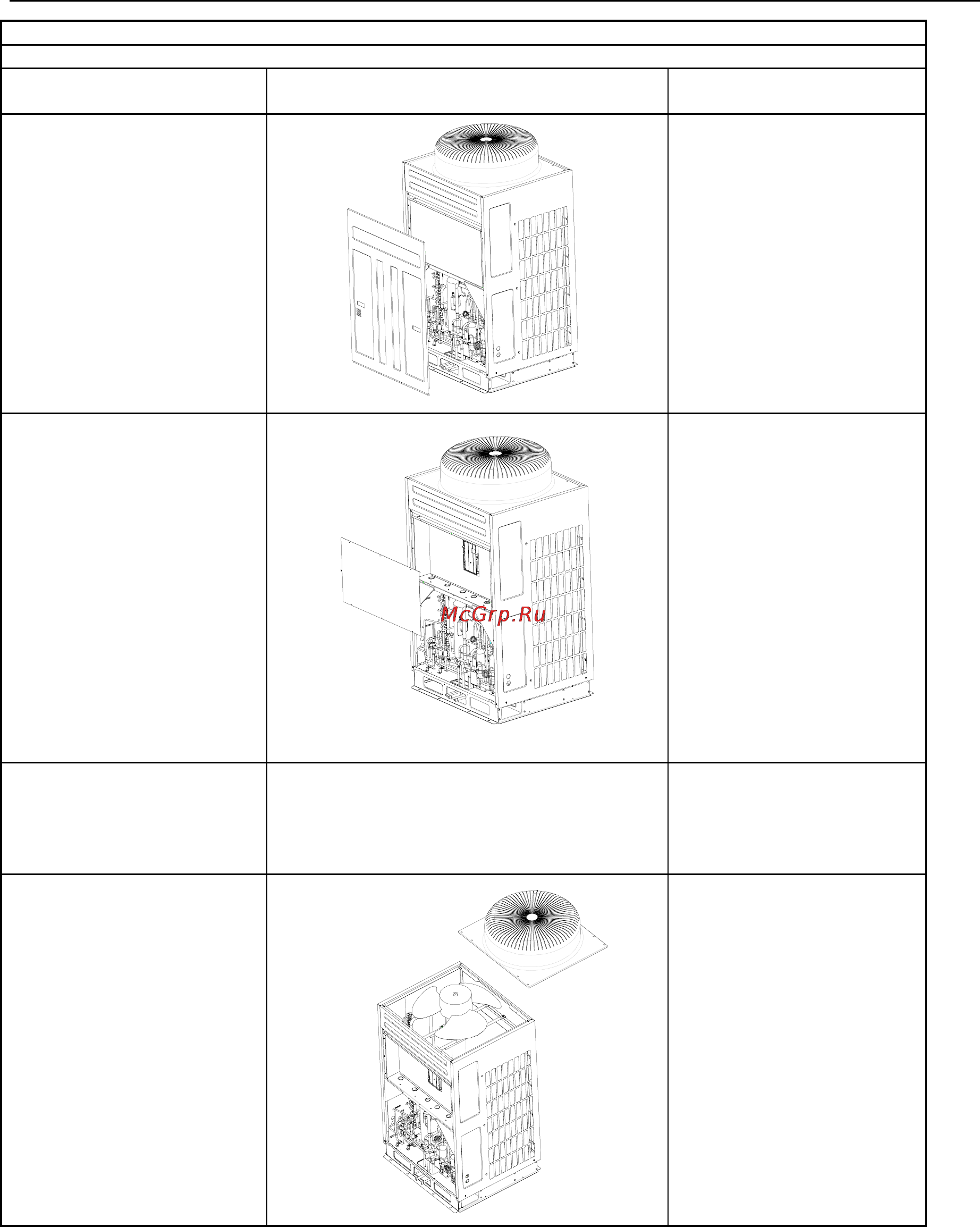

Disassembly and Assembly of Fan and Fan Motor
Remarks :
Step Illustration Handling Instruction
1 ． Disassembly of front
plate
①Remove the bolts
②Disassemble the front
plate.
2． Disassembly of cover of
electric box
①Remove the bolts
②Disassemble the cover of
electric box
3． Disassembly of power
cord of fan
①Unplug the power cord of
fan from mainboard
②Disassemble it from wire
bundle and clip
4． Disassembly of dome
①Remove the bolts
②Disassemble the dome.
