Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
280
z Duct-Type Unit
（9.0 kW～14 kW）
Removal and Assembly of Fan Motor
Remarks: Before removing the fan, make sure to cut off the power firstly.

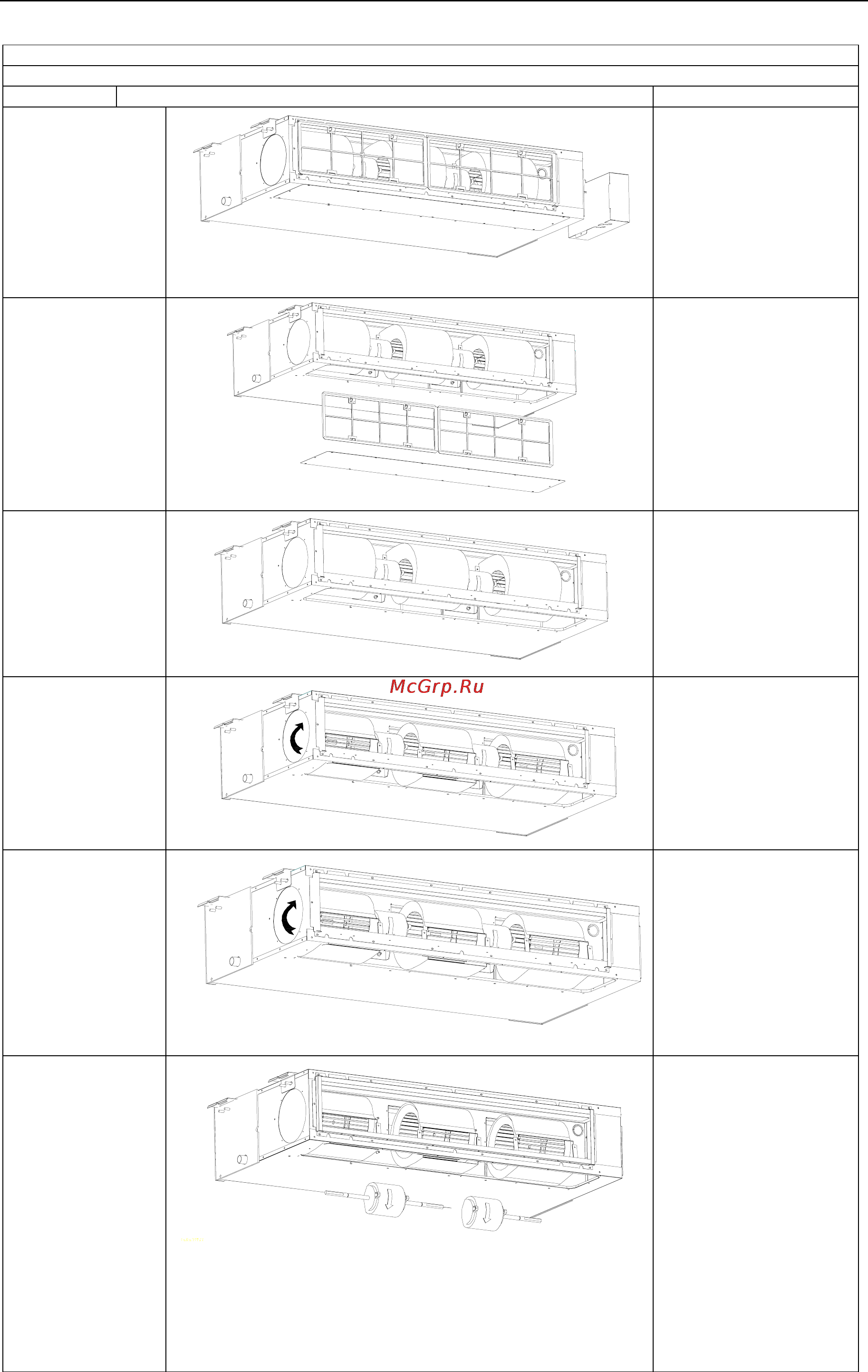

Step Illustration Handling Instruction
1. Unplug the
motor cables
●Cut off the power
supply of indoor unit.
Use screwdriver to
remove the electric box
cover and unplug the
motor cables in electric
box.
2. Remove the
filter sub-assembly
and return air inlet
cover board
●Remove the filter
sub-assembly from the
return air inlet frame and
use screwdriver to
remove the return air
inlet cover board.。
3. Remove the
screws on fan
sub-assembly.
●Remove the screws on
fan sub-assembly.
4. Overturn the
propeller housing
●Rotate the propeller
housing to the return air
inlet opening according
to arrow direction.
5. Loosen the fan
and motor.
●Use inner hexagonal
spanner to loosen the
screws on fan and
remove the clamp fixing
the motor.
6. Replace the
motor
●Firstly, disengage the
motor from motor
support. Then,
sequentially disengage
the fan sub-assembly
form the motor shaft.
Remove the motor from
the return air inlet and
replace with new motor.
In which, for the motor
with automatic motor
support, the motor
support shall be
removed in advance
and then changed to the
unit.
