Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
281
7. Assemble the
unit in reverse to
the disassembly
procedures
●Assemble the unit in
reverse to the
disassembly procedures
and energize it for
testing.

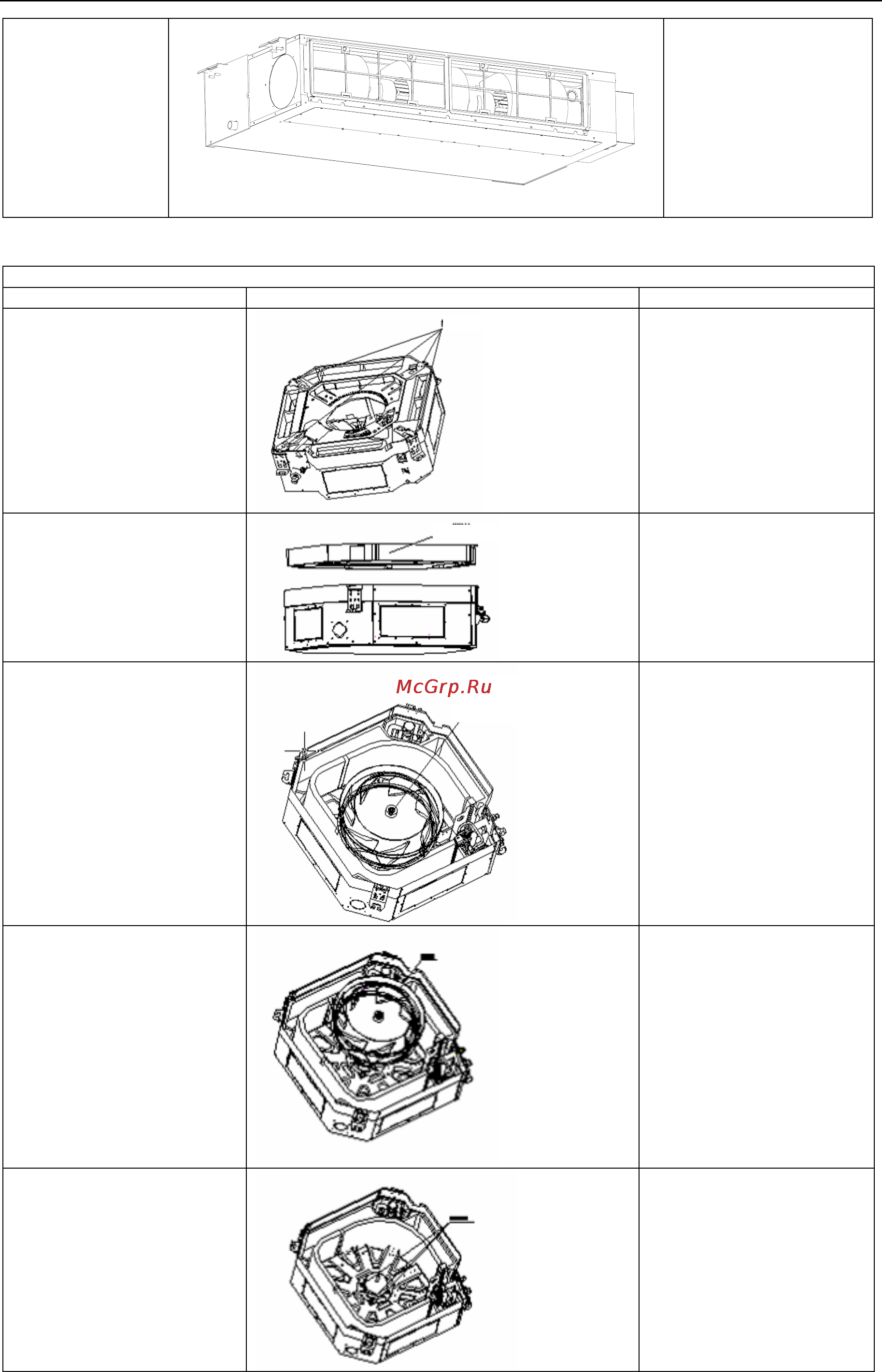

4.3.2Cassette-type Unit
Removal and Assembly of Fan Motor
Step Illustration Handling Instruction
1. Loosen the screws fixing
the water tray
● Use screwdriver to
loosen the screws fixing the
water tray
2. Remove the water tray
●Remove the water tray
3. Loosen the bolts fixing the
fan
● Use spanner to loosen
the bolts fixing the fan.
4. Remove the fan
●Remove the fan
5. Loosen the screws fixing
the motor
● Use screwdriver to
loosen the screws fixing the
motor
