Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
282

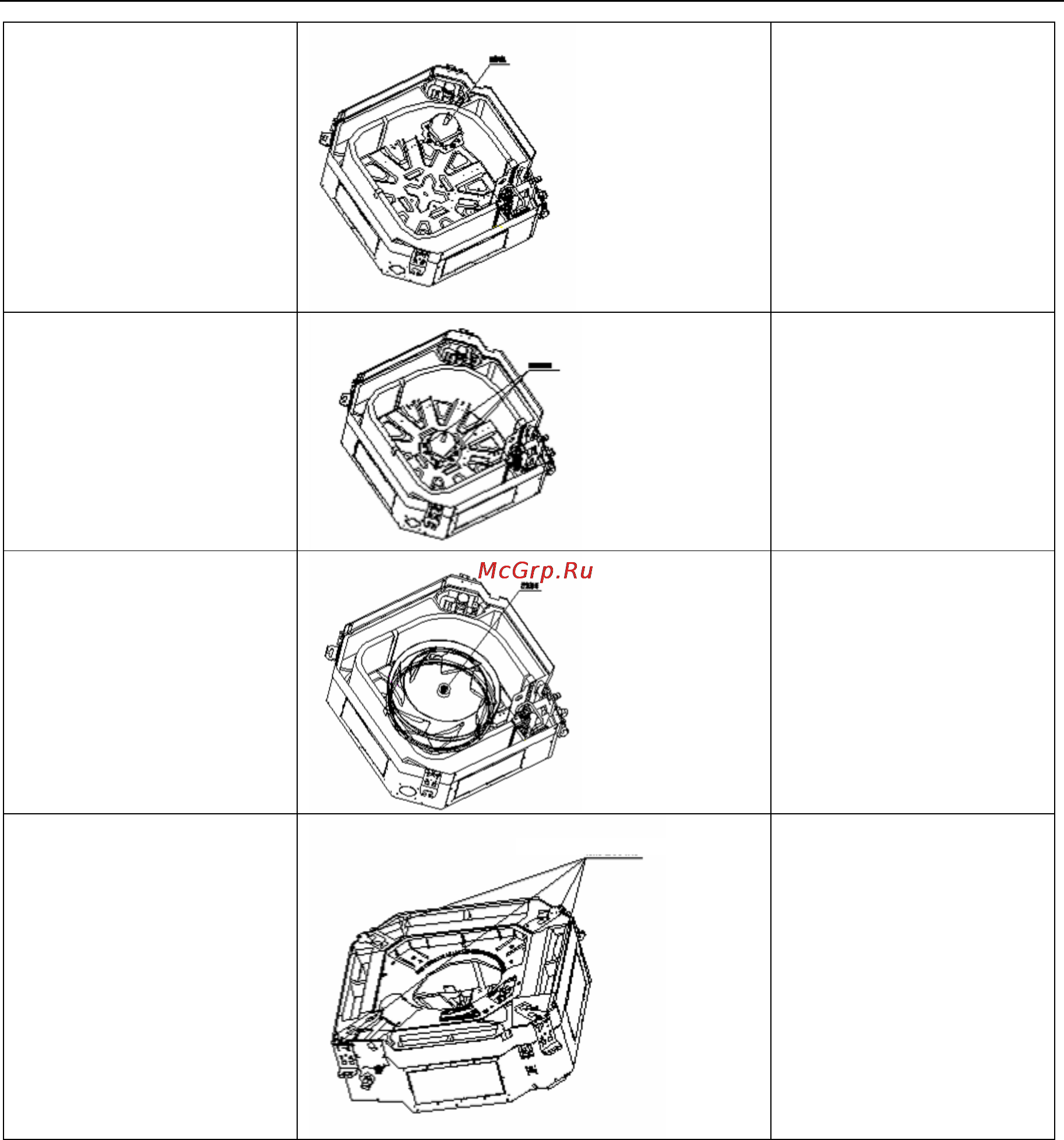

6. Remove the motor and
replace it
●Remove the motor and
replace it
7. Tighten the screws fixing
the motor
● Use screwdriver to
tighten the screws fixing the
motor.
8. Mount the fan and tighten
the fixing bolts
●Mount the fan and use
spanner to tighten the bolts
fixing the fan.
9. Mount the water tray and
tighten the screws
● Use screwdriver to
loosen the screws fixing the
water tray
Ti
g
hten these screws
