Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
89
Parameter
Inquiry
By pressing the inquiry key, the wired controller will enter
into inquiry, in which case the operating parameter code of
the machine is displayed
9 Antifreeze
Display the antifreeze running state of Hydro indoor unit
and water tank
10
Floor
Heating
--
This function is not provided for this model
Applied for
RQD5GB-K.RQ5GB-K.RQD8GB-K.RQ8GB-K.RQD20LA-M.RQD30LA-M.RQ20LA-K.RQ30LA-K：

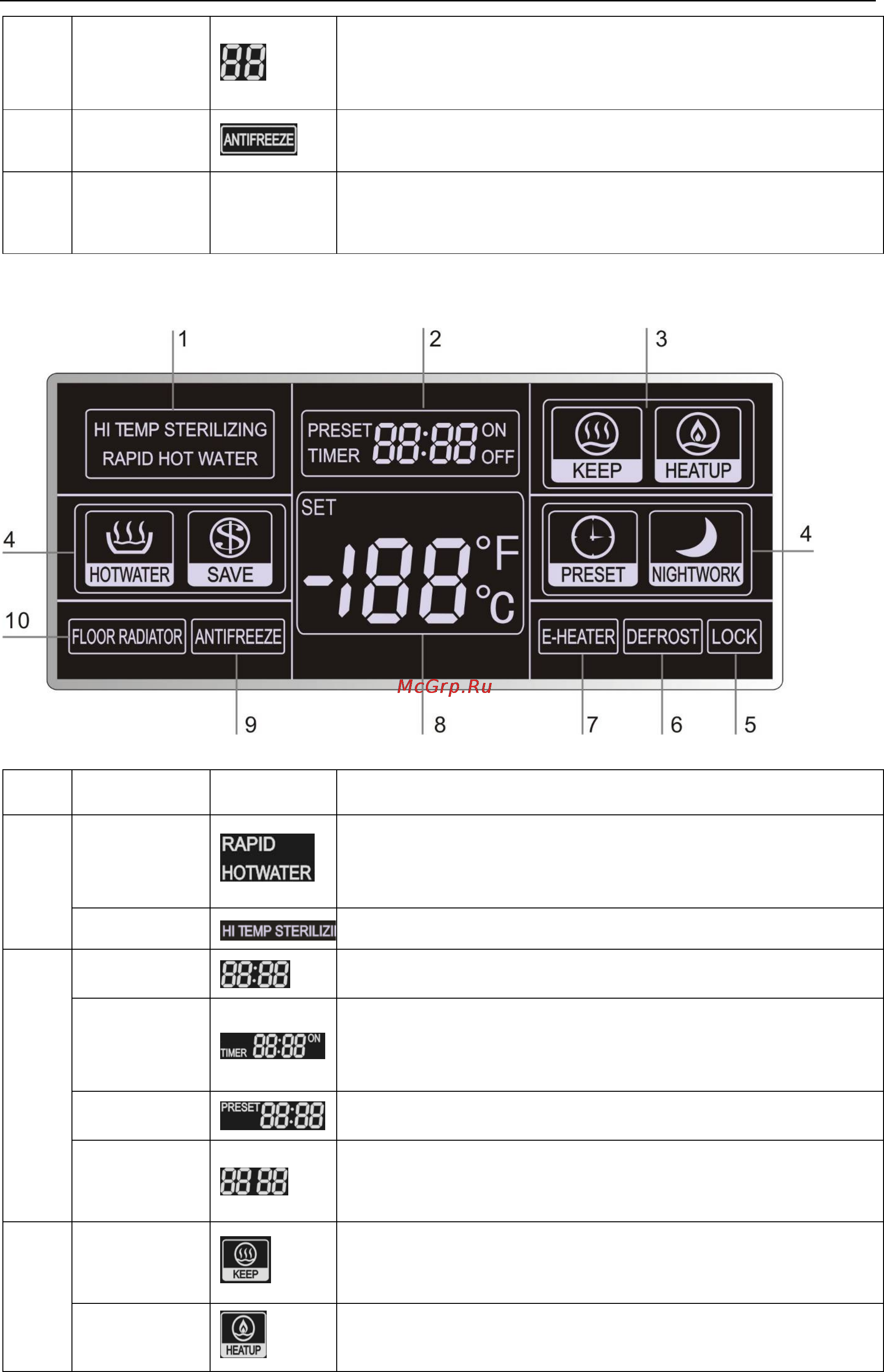

Graphic Illustration of Wired Controller LCD
No. Display Icon
Meaning
1
Quick
Heating
Under instant water heating mode, it is allowed to activate
the auxiliary electric heating tube to heat the water in a
short time
2
System Time
Display the current time
Timer
Display the AUTO OFF time under instant heating and
energy-saving mode. Display the AUTO ON time under
OFF state.
Preset Time
Display the preset water heating time under preset mode.
Parameter
Inquiry
Display the operating parameter code and value under
inquiry state
3
Thermal
Insulation
Displayed when the temperature is reached or the
compressor is not started under ON state.
Heating
Displayed when the compressor is started
