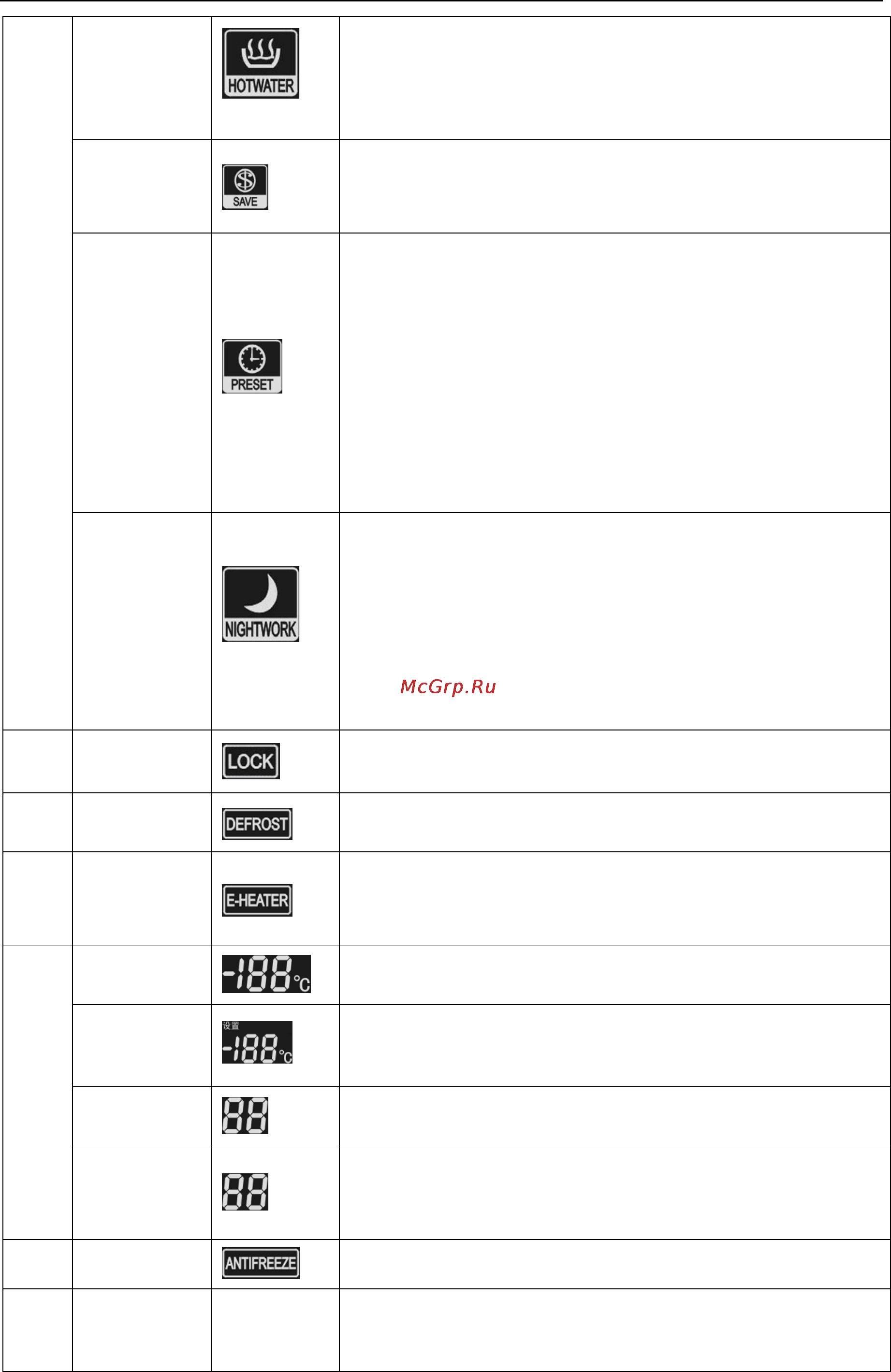

Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
90
4
Instant
Heating
Mode
Immediately start water heating function according to
preset temperature
Energy
Saving Mode
Immediately start water heating function according to
preset temperature, but the upper limit of preset
temperature is restricted
Preset Mode
Preset the water heating time, so that the water heater wil
l
be started “N” hours before the preset time. The advanc
e
start time “N” is decided jointly by environment temperatur
e
and correction value of preset advance time, and the start
/
stop of the compressor is decided according to th
e
difference between preset water temperature and actua
l
water temperature. The water heater will be stopped 1 hou
r
after the preset time. After started, the machine will ru
n
cyclically every day.
Night Mode
Fix the preset water heating time at 00:00~06:00, so that th
e
water heater will be started in this time section. The start
/
stop of the compressor is decided according to th
e
difference between preset water temperature and actua
l
water temperature. If exceeding this time section, the wate
r
heater will be stopped. After started, the machine will ru
n
cyclically every day.
5 Lock
Deactivate the key operation, in which case any key will be
disabled.
6 Defrost
Display the defrost state of Hydro-box
7
Auxiliary
Heating
Display the start / stop of auxiliary electric heating. When
the outdoor unit is failed, the auxiliary heating icon will
flash.
8
Water Temp.
Display the water temperature
Set
Temperature
Set the target temperature of water
Error Code
Display the machine abnormality code
Parameter
Inquiry
By pressing the inquiry key, the wired controller will enter
into inquiry, in which case the operating parameter code of
the machine is displayed
9 Antifreeze
Display the antifreeze state of Hydro -box
10
Floor
Heating
--
This function not provided for this model
