Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
292

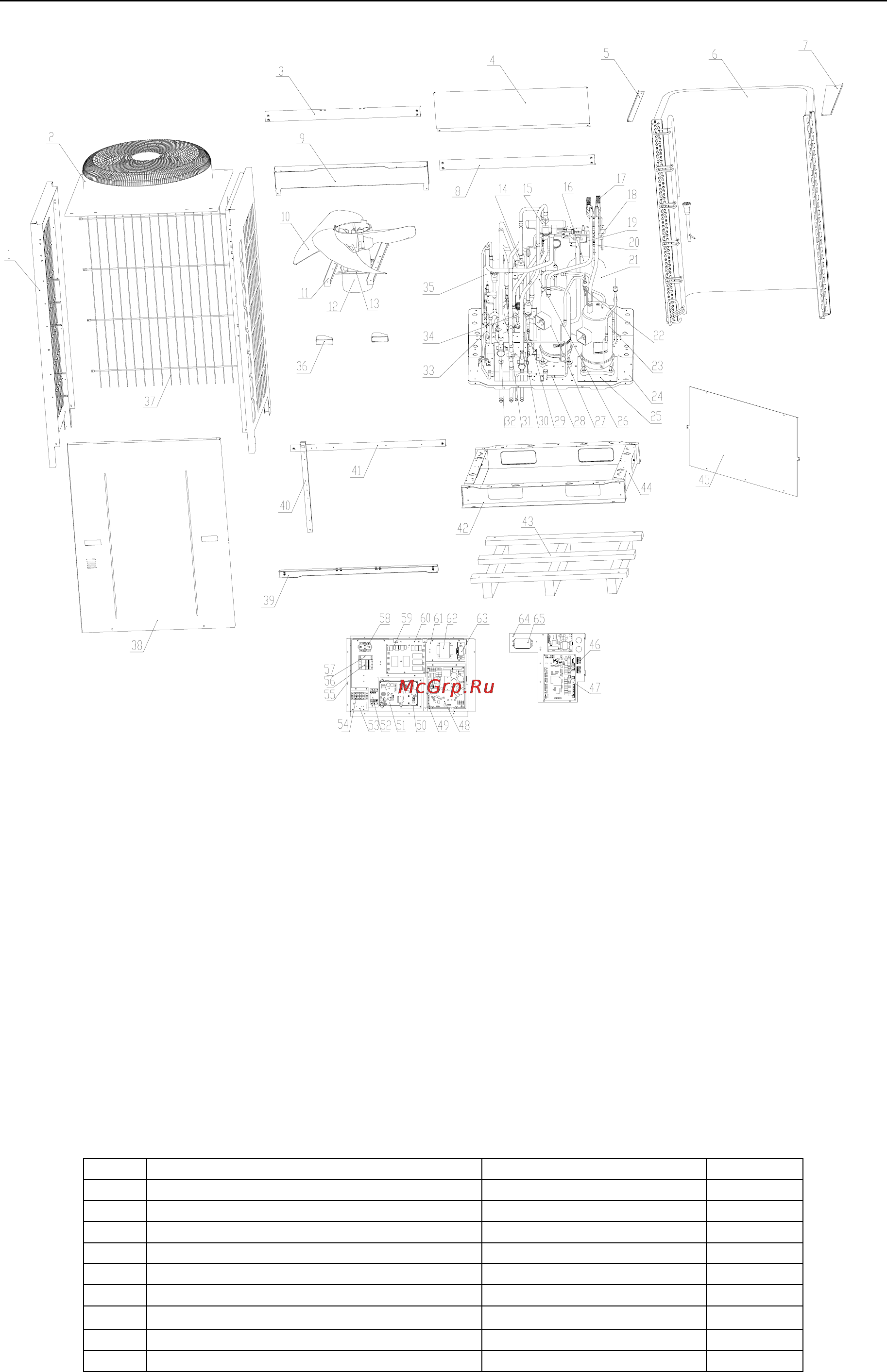

No. Part Name Code Qty
1 Left side panel sub-assy 01313256P 1
2 Leading cover(VPd280)(apricot ash) 26904101 1
3 Back cover plate 01313261P 1
4 front cover plate 01264142P 1
5 Windshield(left) 01354102 1
6 Condenser assy 01124172 1
7 Windshield（right） 01354103 1
8 Fixing support sub-assy NO.2 01324120P 1
9 Fixing support sub-assy NO.1 01324221P 1
