Chapter5 QoS Configuration
5-2
Queue Technique
The central content of congestion management is as the following.
How to make a scheduling strategy of resource when congestion occurs determines
processing order of message forwarding. For congestion management, queue technic
is usually used. Use queue algorithm to classify flow and then use one priority
algorithm to send flow out. Each queue algorithm is used for specific network flow
problem. And it influences allocation of bandwidth resource, delay and jitter
importantly.
Queue Scheduling Algorithm Supported of QSW-2800
SP Priority Queue

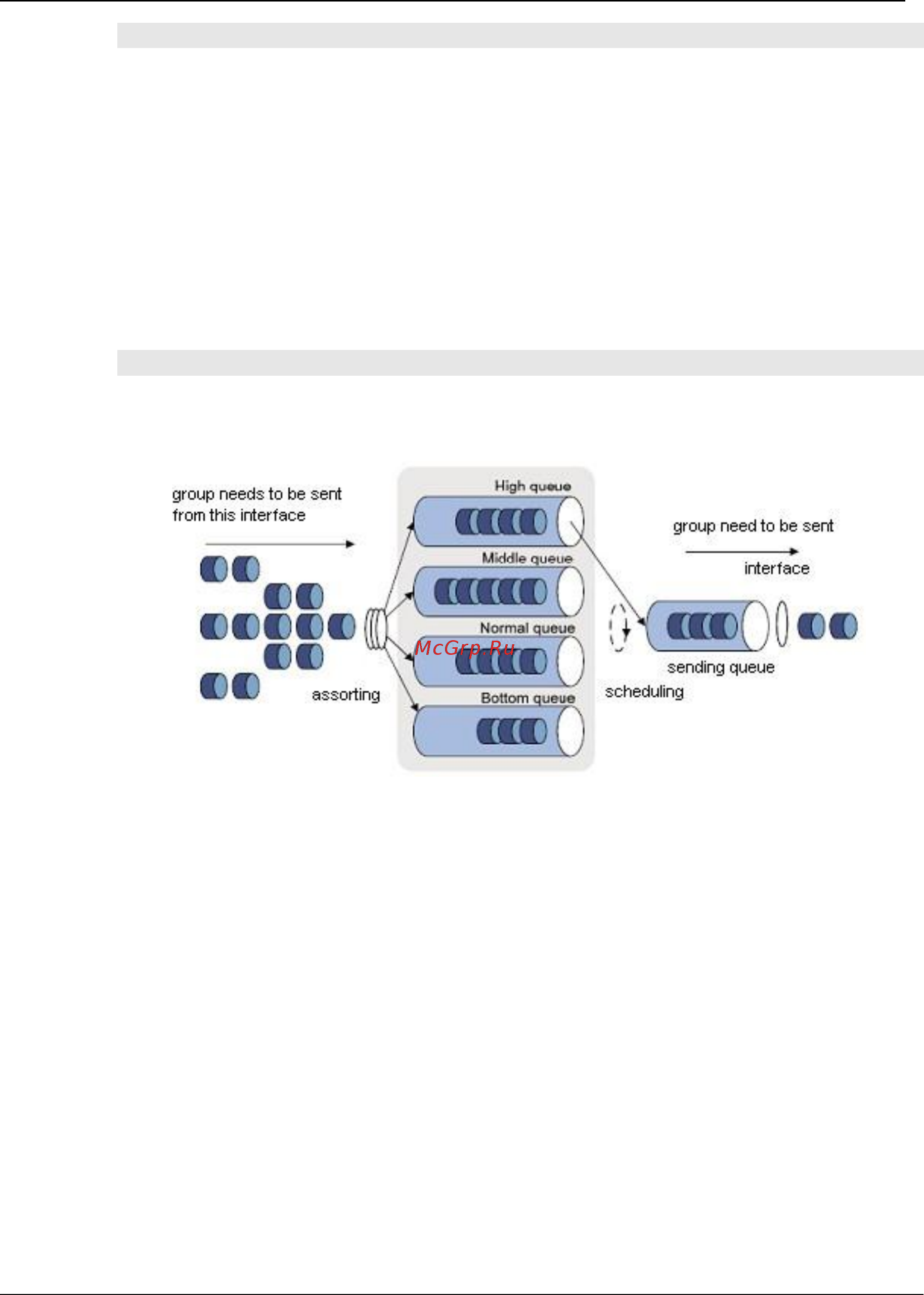

Figure 5-1 SP Queue Scheduling
When using SP (Strict Priority), the packet of higher priority queue is first sent out
in strict accordance with priority from high to low order. When higher queue is
empty, then send packet of lower priority queue.
Put key service into higher priority queue and non-key service into lower priority
queue to guarantee that packet of key service can be sent out first and packet of
non-key service can be sent out in the free space of data processing of key
service. Usually, Switch chip supports the maximum number of eight queues.
RR Scheduling Queue
