Chapter8 Reliability Configuration
8-11

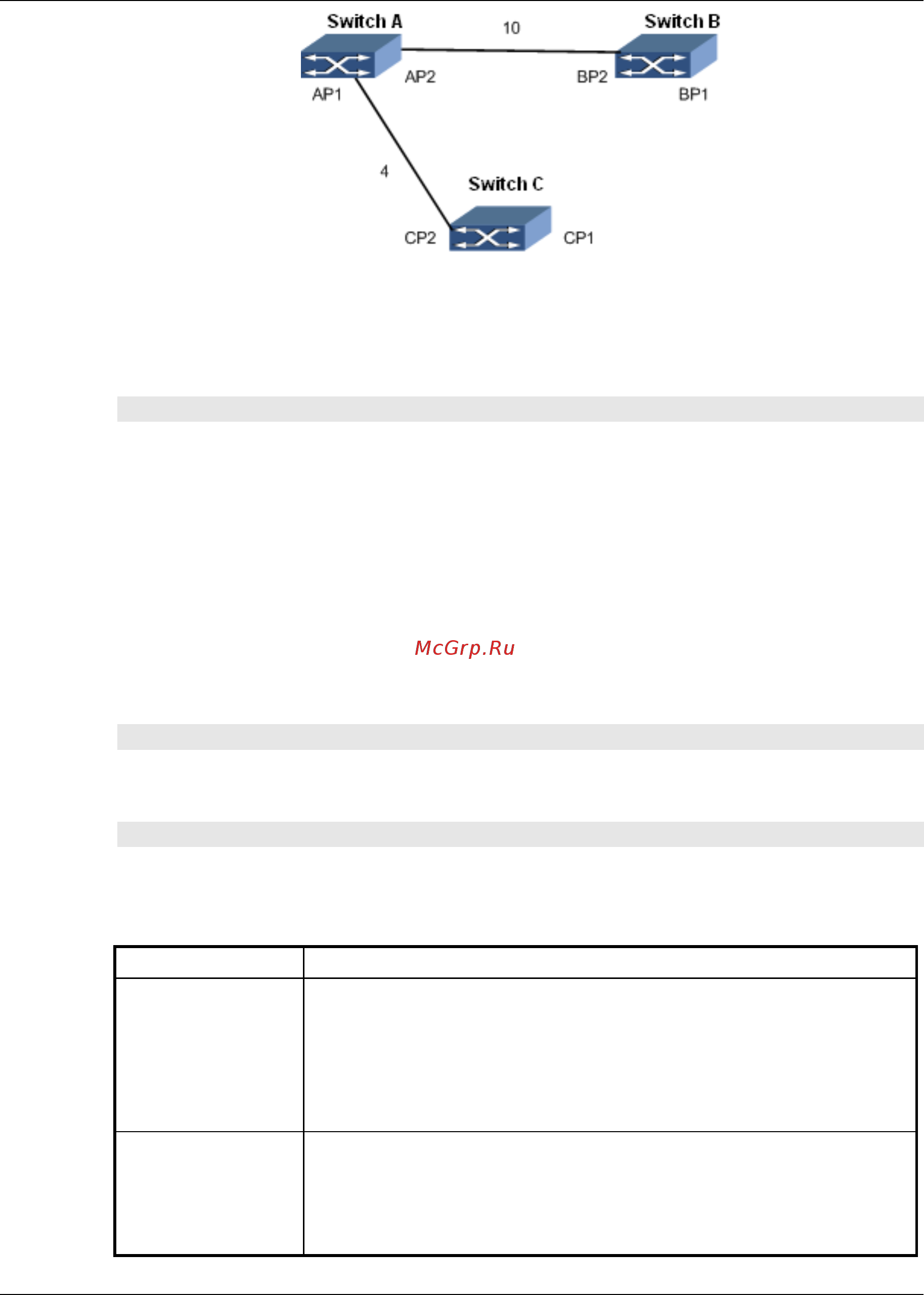

Figure Flow Forwarding Path after Calculation
8.2.4 Configure Device to Join Designated MST Domain
Background Information
As long as the same configuration, the two switches belong to the same domain.
MST domain name
MSTI and VLAN mapping relationship
MST domain revision level
Before configuring Switch to join designated MST domain, it needs to configure
physical attribute of interface and interface VLAN characteristic.
Purpose
This section introduces how to configure Switch to join MST domain.
Process
According to different destination, please execute corresponding steps. Refer to the
following table.
Objective
Procedure
Configure STP
working mode of
Switch
1. Use command of configure to enter Global Configuration View;
2. Use command of stp to enter STP Configuration View;
3. Use command of stp mode { stp | rstp | mstp | default } to configure
STP working mode of Switch;
4. End.
Configure MST
domain
1. Use command of configure to enter Global Configuration View;
2. Use command of stp to enter STP Configuration View
3. Use command of stp config-name string to configure MST domain
name;
