Chapter1 Basic Configuration
1-32
Before TFTP configuration, the network administrator needs to configure IP
addresses of TFTP client side and server side, and make sure that the routing
between client and server is available.
The QSW-2800 Switch supports TFTP functionality under two types of network
address, IPv4 and IPv6.

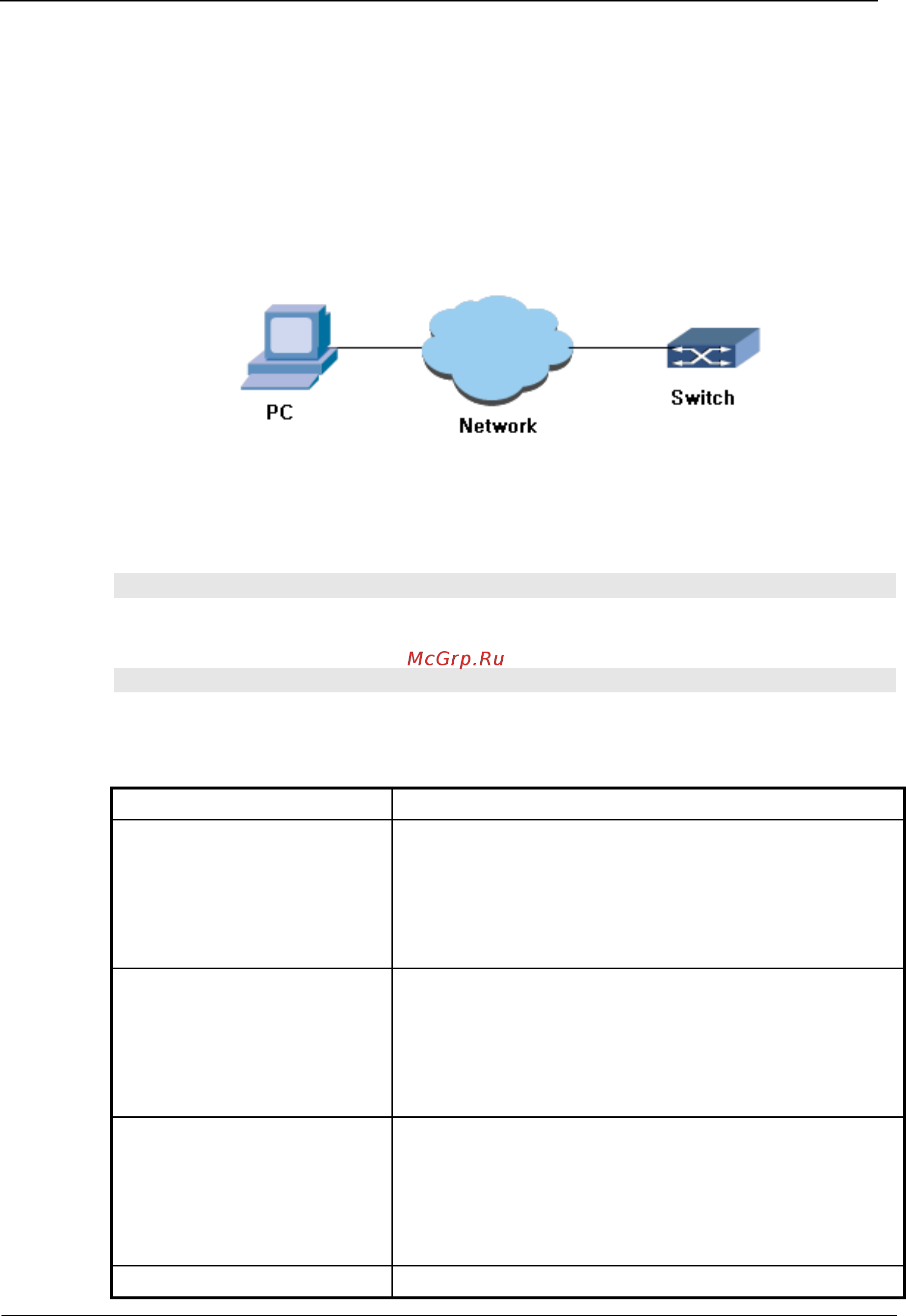

Figure TFTP Configuration Topology (1)
1.4.2.2 Configure TFTP Server On-Off
Purpose
This section introduces how to open or close TFTP server of the switch.
Process
According to the different purposes, execute corresponding step. Please refer to the
following table.
Purpose
Process
Start device TFTP server
function
1. Use command of configure to enter the Global
Configuration View;
2. Use command of ttftpd to start device TFTP server
function;
3. Done.
Start device TFTP6 server
function
1. Use command of configure to enter the Global
Configuration View;
2. Use command of ttftpd6 to start device TFTP6 server
function;
3. Done.
Close device TFTP server
function
1. Use command of configure to enter the Global
Configuration View;
2. Use command of no ttftpd to close device TFTP server
function;
3. Done.
Close device TFTP6 server
1. Use command of configure to enter the Global
