Chapter1 Basic Configuration
1-19
The SSH login will be successful by above configuration steps, referring to Figure 1-

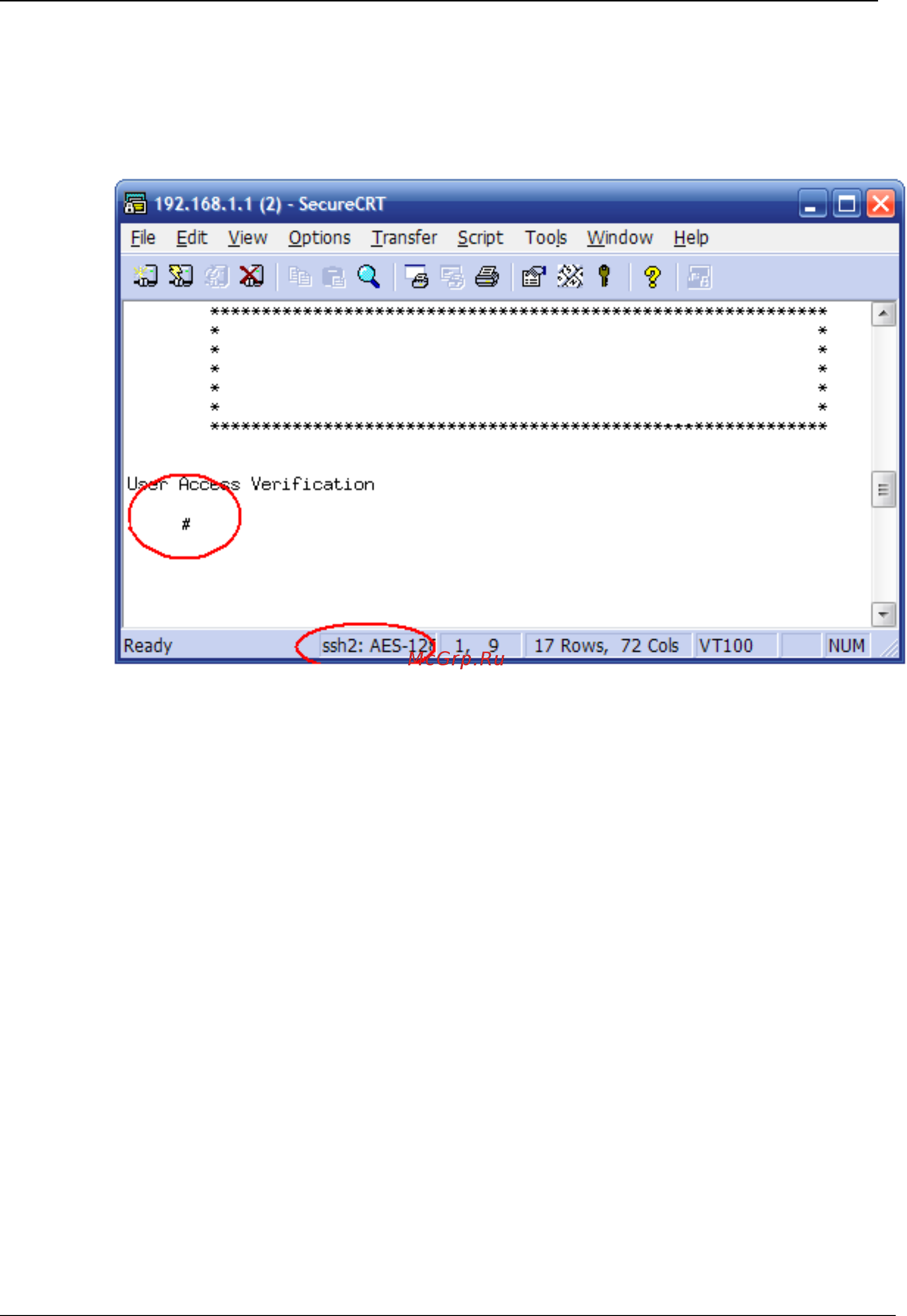

30 A Successful SSH Login via Public Key:
Figure A Successful SSH Login via Public Key
1.4 Device File Upload and Download
1.4.1 FTP Configuration
1.4.1.1 FTP Introduction
File Transfer Protocol (FTP) is a universal method of file transmission in the Internet
and IP network. The file transmission provided by FTP is to copy a complete file from
a system to another. The FTP supports limited file types (ASCII, binary, etc.) and file
structures (byte flow oriented or record). Most users regularly prefer to Email and Web
for file transmission at present however, FTP is still in wide spread use. The FTP
protocol belongs to application layer protocol in TCP/IP protocol suite that it is applied
for file transmission between remote server and local host. The FTP services that
QSW-2800 Switch provides are including:
