Chapter2 Layer 2 Ethernet Configuration
2-22
Active link has the ability of load sharing.
Network Topology

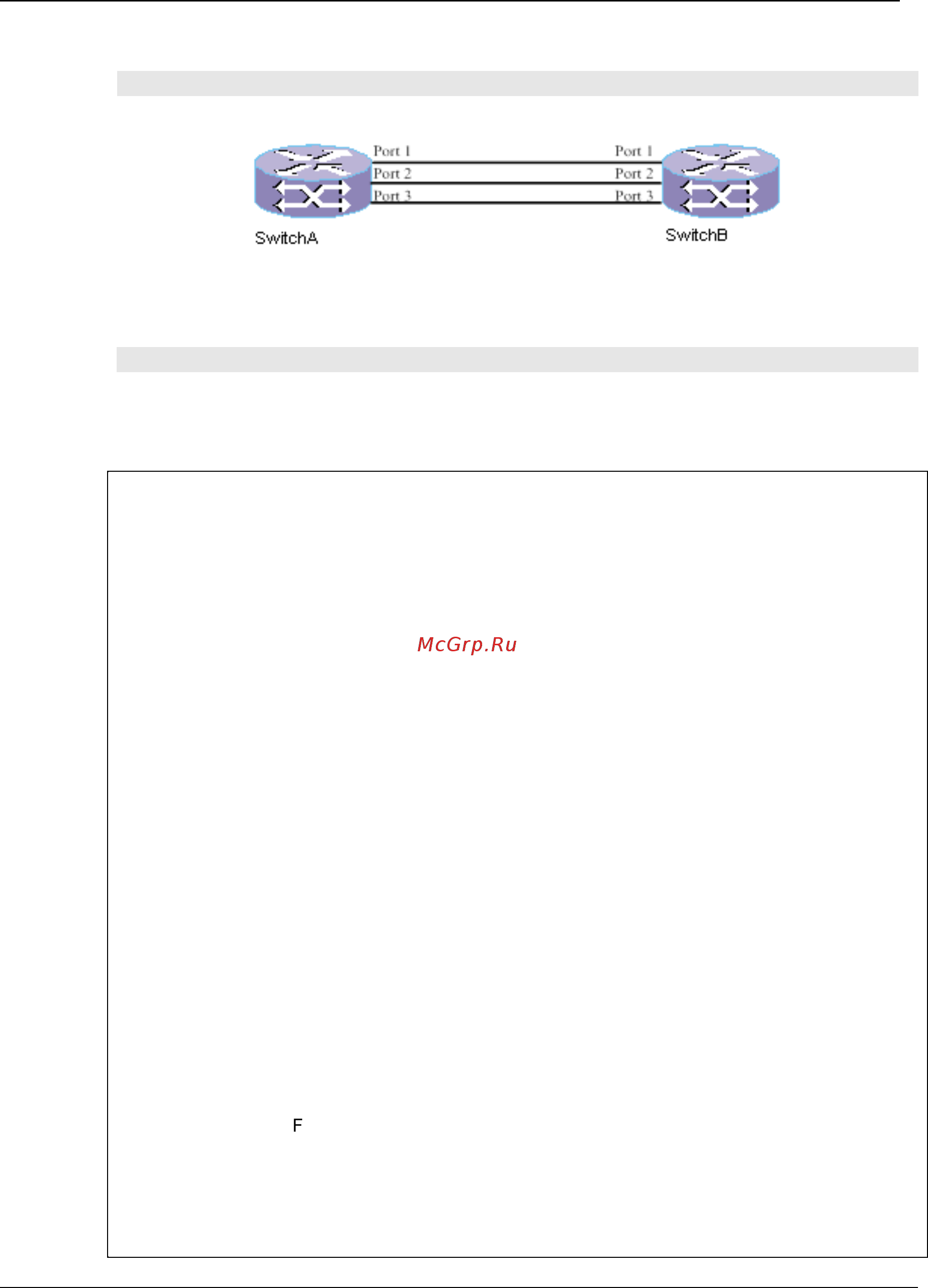

Figure LACP Configuration Topology
Configuration Step
Note: The configuration of two peers is the same and this only display
configuration of one peer.
1. Create LACP aggregation group.
SX(config)#interface trunk 1/1
SX(config-trunk1/1)#no shutdown
SX(config-trunk1/1)#join vlan 1 untagged
SX(config-trunk1/1)#mode –static
2. Add interface 1-3 to the trunk group.
SX(config)#interface fastethernet 1/0/1 to fastethernet 1/0/3
SX(config-ge1/0/1->ge1/0/3)#no shutdown
SX(config-ge1/0/1->ge1/0/3)#join vlan 1 untagged
SX(config-ge1/0/1->ge1/0/3)#join trunk 1/1
3. Configuration finishes and check the trunk group information.
SX#show lacp trunk 1/1
eth-trunk 1:
LACP Status: master Port number: 3
fastethernet-1/0/1
Port Status: Up and bind
Flag: S – Device is sending Slow LACPDUs
F – Device is sending fast LACPDUs
Local information:
Mode Flags Priority AdminKey OperKey PortId State
active
32768
0x19
0x19
0x1 0xa9d7f8
Partner‟s information:
Port Flags SysPri PortPri AdminKey OperKey
1 F 32768 32768 0x0 0x19 0x1
OperPort OperState DevID
0x9dfb6c 0x00046798185d
