Chapter1 Basic Configuration
Serial port setting. Please perform the settings according to Serial Port
Property Setting of QSW-2800 Switch:
Serial Port Property Setting of QSW-2800 Switch

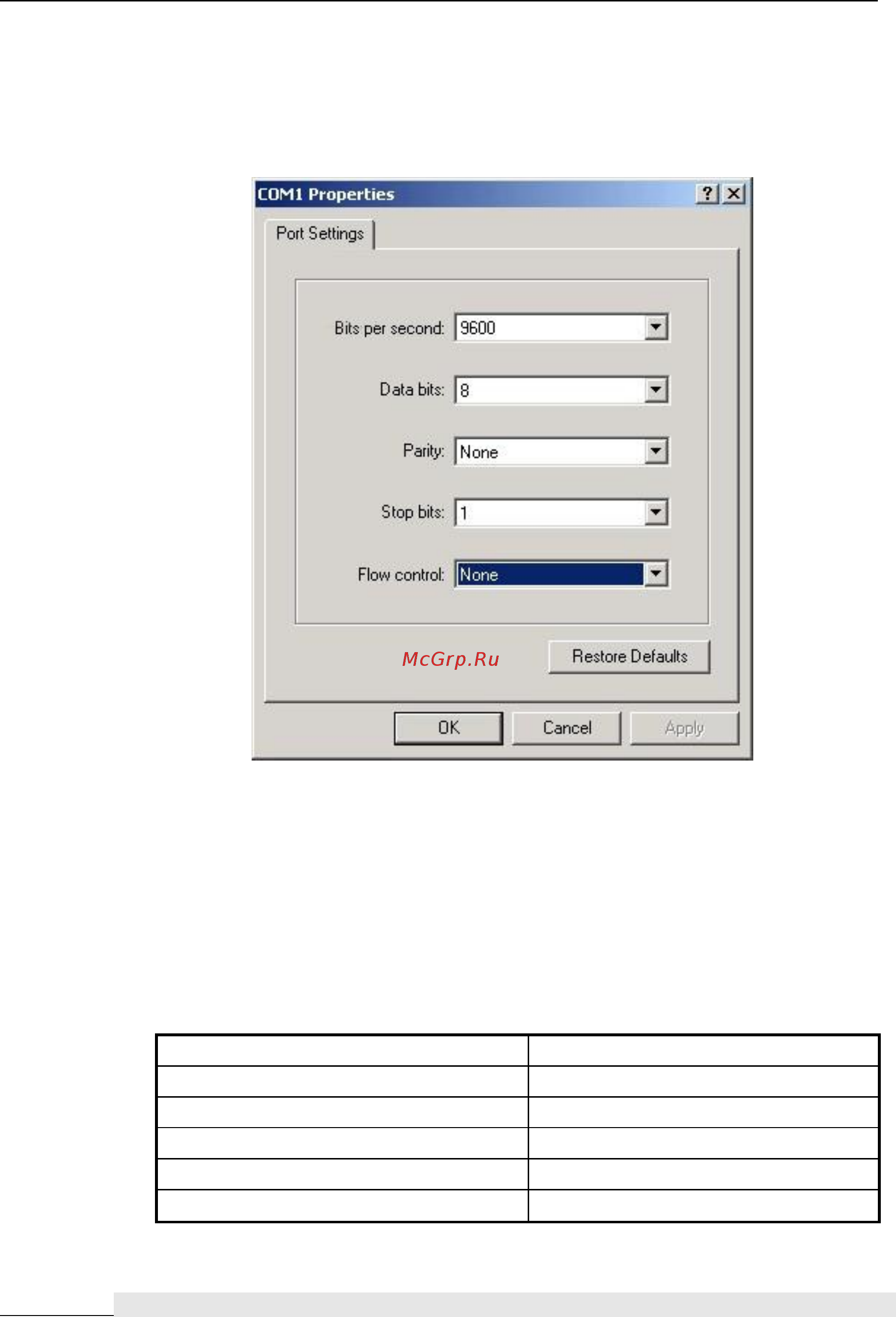

Please set the parameters according to table shown in Table 1-1
Parameter Description when Logging QSW-2800 Switch through Serial
Line:
Table 1-1 Parameter Description when Logging QSW-2800 Switch through Serial Line
Parameter
Value
Bit per second
9600
Data bits
8
Parity
None
Stop bits
1
Flow control
None
Click <OK> to confirm.
Result
