Chapter8 Reliability Configuration
8-8
4. Role Selection Process
The CIST instance calculation process will be introduced briefly as follow with the
Figure 8-1. Supposing that the bridge priority of SwitchA is better than Switch B
and the SwitchB is better than SwitchC. The link path costs are 4, 5 and 10.
SwitchA and SwitchB belong to the same domain and SwitchC belongs to
another domain alone.

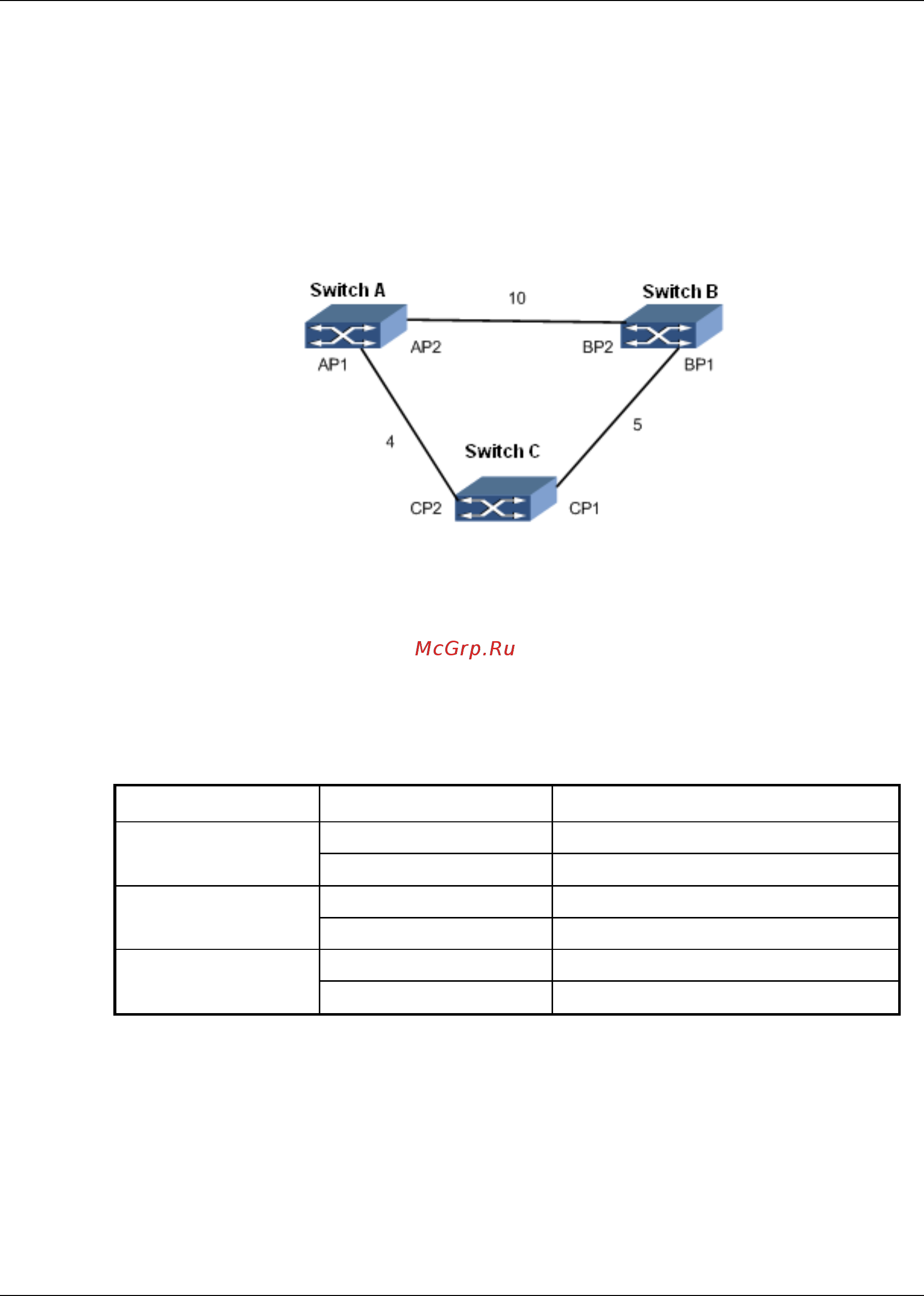

Figure MSTP Algorithm Calculation Process
The message priority vector carried in the message sent out by the device in initial
state of the Figure 8-1 is shown in the Table 8-2.
Table 8-2 Initial State of Every Device
Device
Port
Message Priority Vector
Switch A
AP1
{A:0:A:0:A:AP1:0}
AP2
{A:0:A:0:A:AP2:0}
Switch B
BP1
{B:0:B:0:B:BP1:0}
BP2
{B:0:B:0:B:BP2:0}
Switch C
CP1
{C:0:C:0:C:CP2:0}
CP2
{C:0:C:0:C:CP2:0}
The port priority vector of all ports of device keep the same as the message priority
vector in initial state.
In initial state, the port of every device will be calculated to be the designated port and
will send out the message priority vector which makes it to be the root Bridge.
a) Switch A Role Selection Process
