Qtech QSW-2800v2 [217/230] Example

Chapter8 Reliability Configuration

8-35

Parameter

Description

Value

link change

Link change

all

All information

interface-number

Ethernet interface number

to be1~12/1~48

8.3.6 Example

8.3.6.1 Configure Single Point Uplink

Network Requirements

In single point uplink network environment, configure RLINK function. The master and

slave interfaces are on the same Switch. They are fe1/1 and fe1/2.

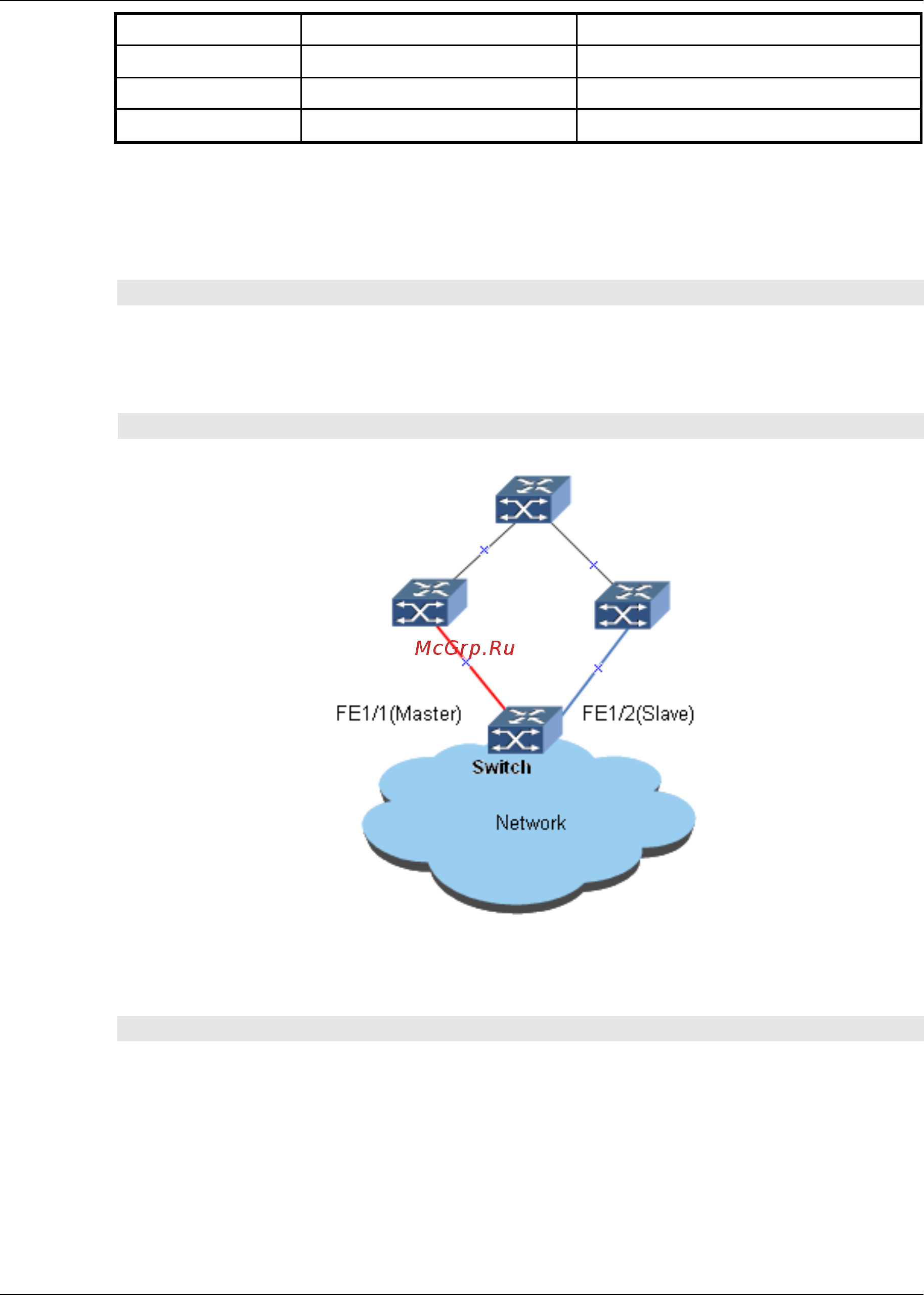

Network Diagram

Figure Single Point Uplink Topology

Configuration Steps

1. Create RLINK group1.

Switch#configure

Switch(config)#rlink group 1

//Optional, default to be single mode

Switch(config-rlink1)#type single

//Configure protection VLAN. (RLINK group based on VLAN)
