Chapter1 Basic Configuration
1-36
„vrpcfg.txt‟ under TFTP server working category, so that to implement config file
backup.
Topology

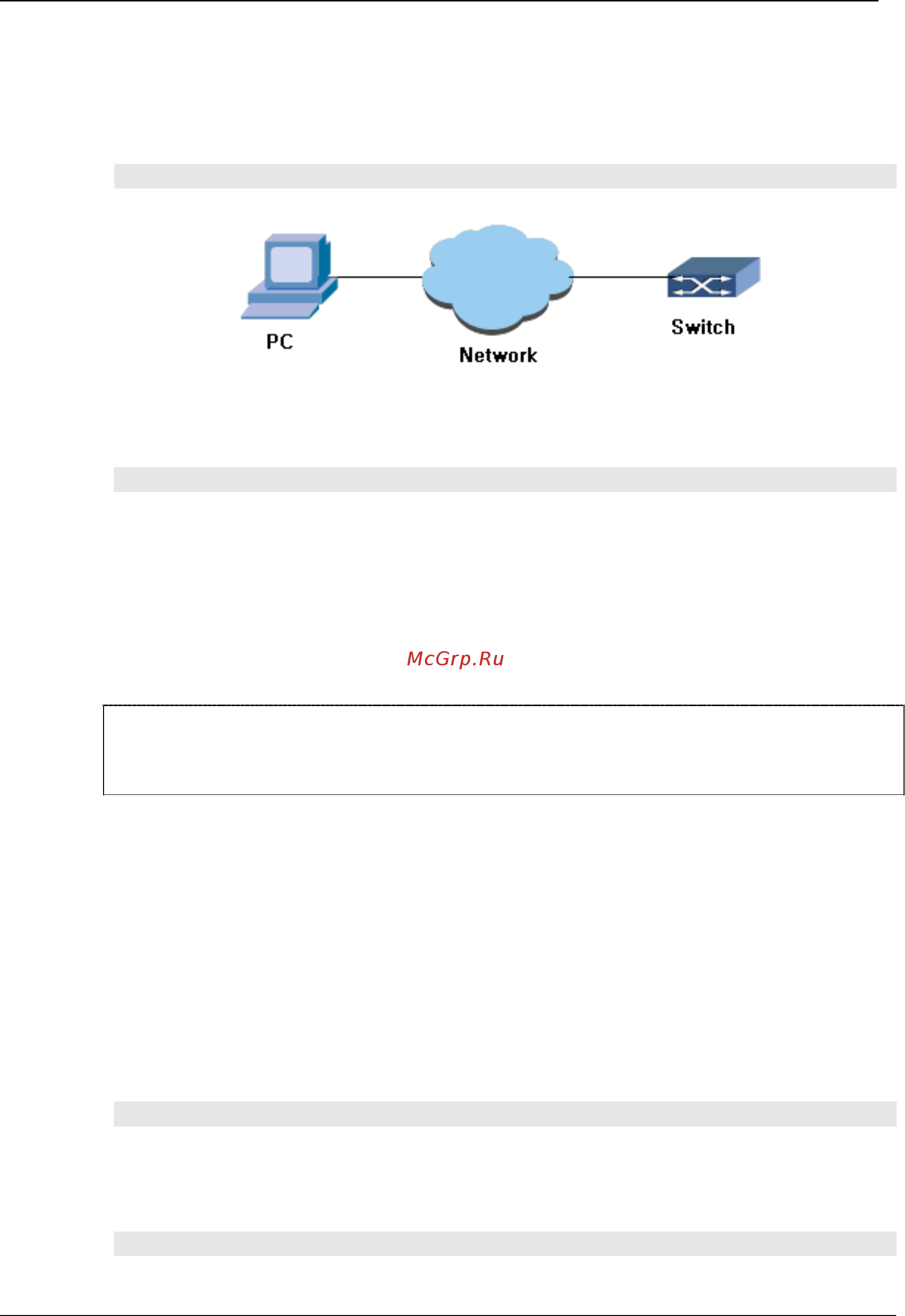

Figure TFTP Configuration Topology (2)
Process
1. TFTP server is started in PC and working category of TFTP server is configured.
2. Configurations at the switch:
#User logs into the switch (the switch login can be implemented through local console
port as well as remote telnet).
1.4.3 Zmodem Configuration
1.4.3.1 Zmodem Introduction
Zmodem is to process file upload/download through switch serial port. It is because of
limited transmission rate to its serial port that the operation with large file transmission
is not suggested.
1.4.3.2 Zmodem Upload File
Background Information
It is not suggested to process operation for file download/upload with large file
transmission, due to its limited serial port transmission rate.
Precondition
QSW-2800#config
QSW-2800 (config)#tftp get 1.1.1.2 switch.z
QSW-2800 (config)#tftp put 1.1.1.2 vrpcfg.txt config
