Qtech QSW-2800v2 [176/230] Example

Chapter7 Security Configuration

7-22

7.2.8 Example

7.2.8.1 Configure Layer2 ACL

Network Requirements

Switch is used as gateway, connecting with user PC. Require to configure ACL to

deny message with source MAC of 0001-0203-0405 and destination MAC of 0102-

0304-0506 to pass.

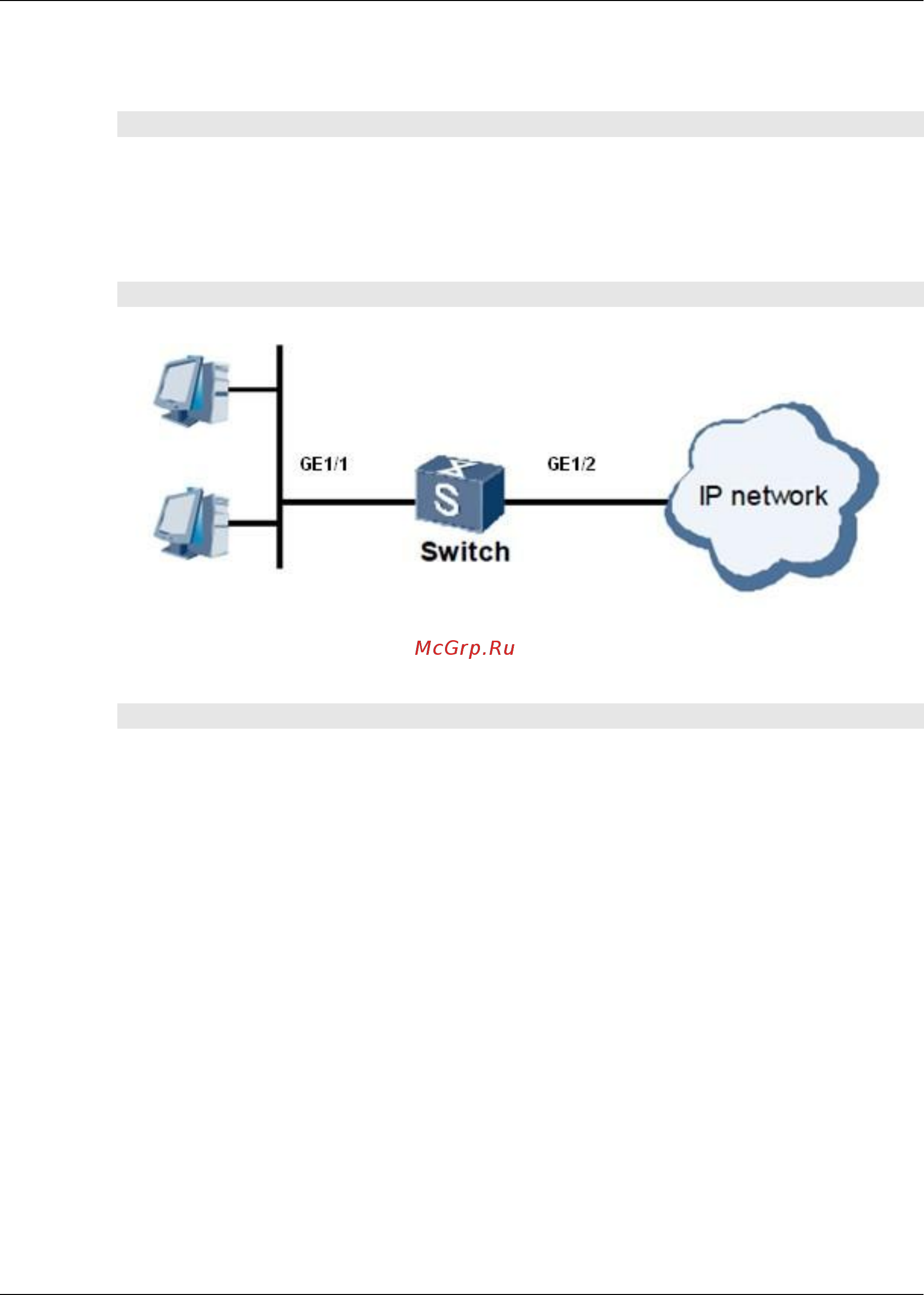

Network Diagram

Figure Layer2 ACL Topology

Configuration Steps

1. Create layer2 ACL.

Switch#configure

Switch(config)#filter-list 1

Switch(configure-filter-l2-1)#

2. Configure layer2 ACL rule.

Switch(configure-filter-l2-1)#filter 1 mac 00:01:02:03:04:05/48 01:02:03:04:05:06/48

3. Configure layer2 ACL action.

Switch(configure-filter-l2-1)#filter 1 action deny

4. Binding ACL to interface.

Switch(configure-filter-l2-1)#quit

Switch(config)#interface fastethernet 1/0/1

Switch(config-ge1/0/1)#filter-list in 1
