Chapter5 QoS Configuration

5-7

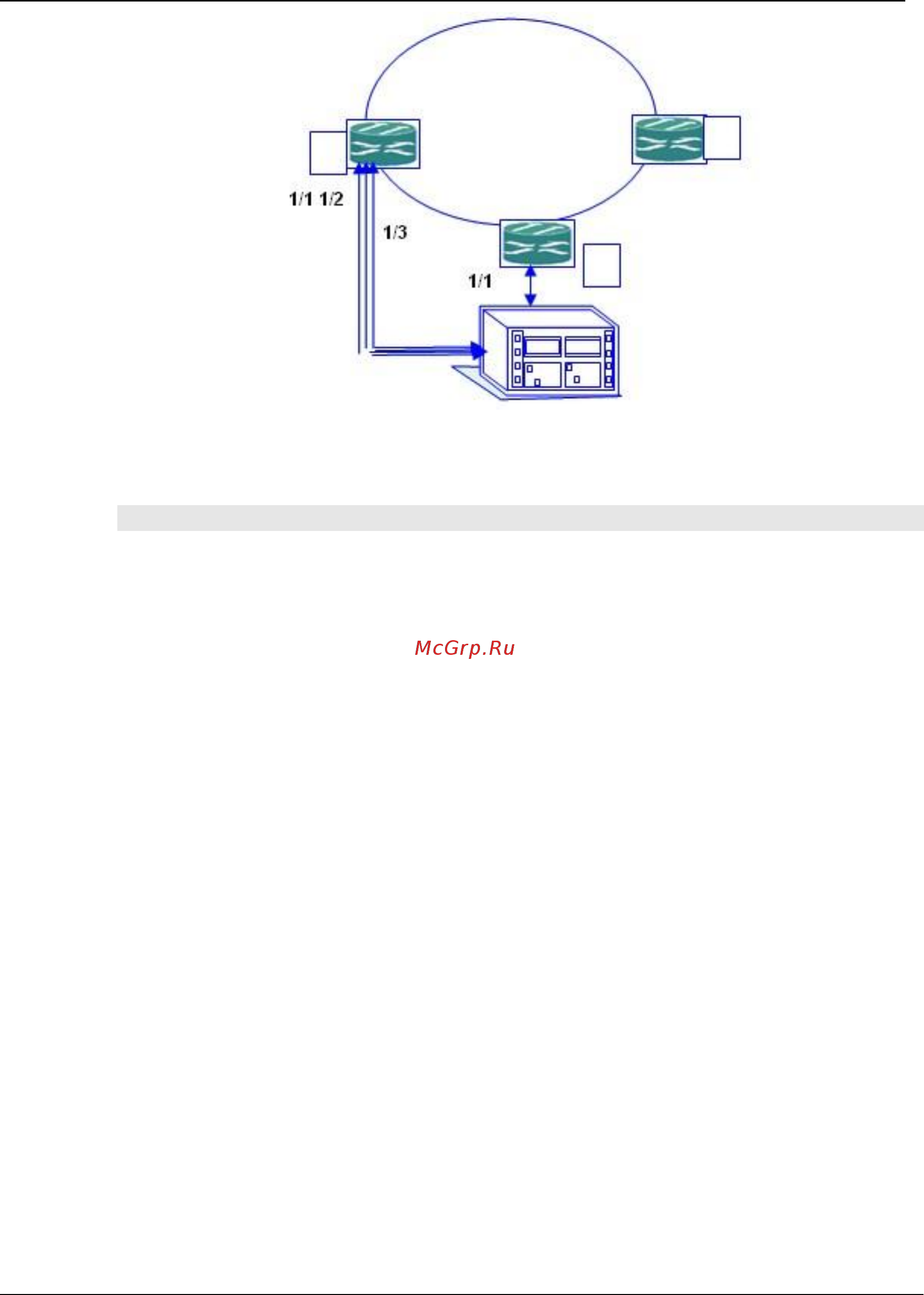

Figure Interface SP Algorithm Topology

Configuration Steps

1. Configure Host1.

//Configure fastethernet 1/0/1.

S1#configure

S1(config)#interface fastethernet 1/0/1

S1(config-ge1/0/1)#priority 1

S1(config-ge1/0/1)#quit

//Configure fastethernet 1/0/2.

S1#configure

S1(config)#interface fastethernet 1/0/2

S1(config-ge1/0/2)#priority 2

S1(config-ge1/0/2)#quit

//Configure fastethernet 1/0/3.

S1#configure

S1(config)#interface fastethernet 1/0/3

S1(config-ge1/0/3)#priority 3

S1(config-ge1/0/3#quit

2. Configure Host2.

//Configure ACL rule.

S2#configure

S2(config)#filter-list 1001
