Chapter7 Security Configuration

7-28

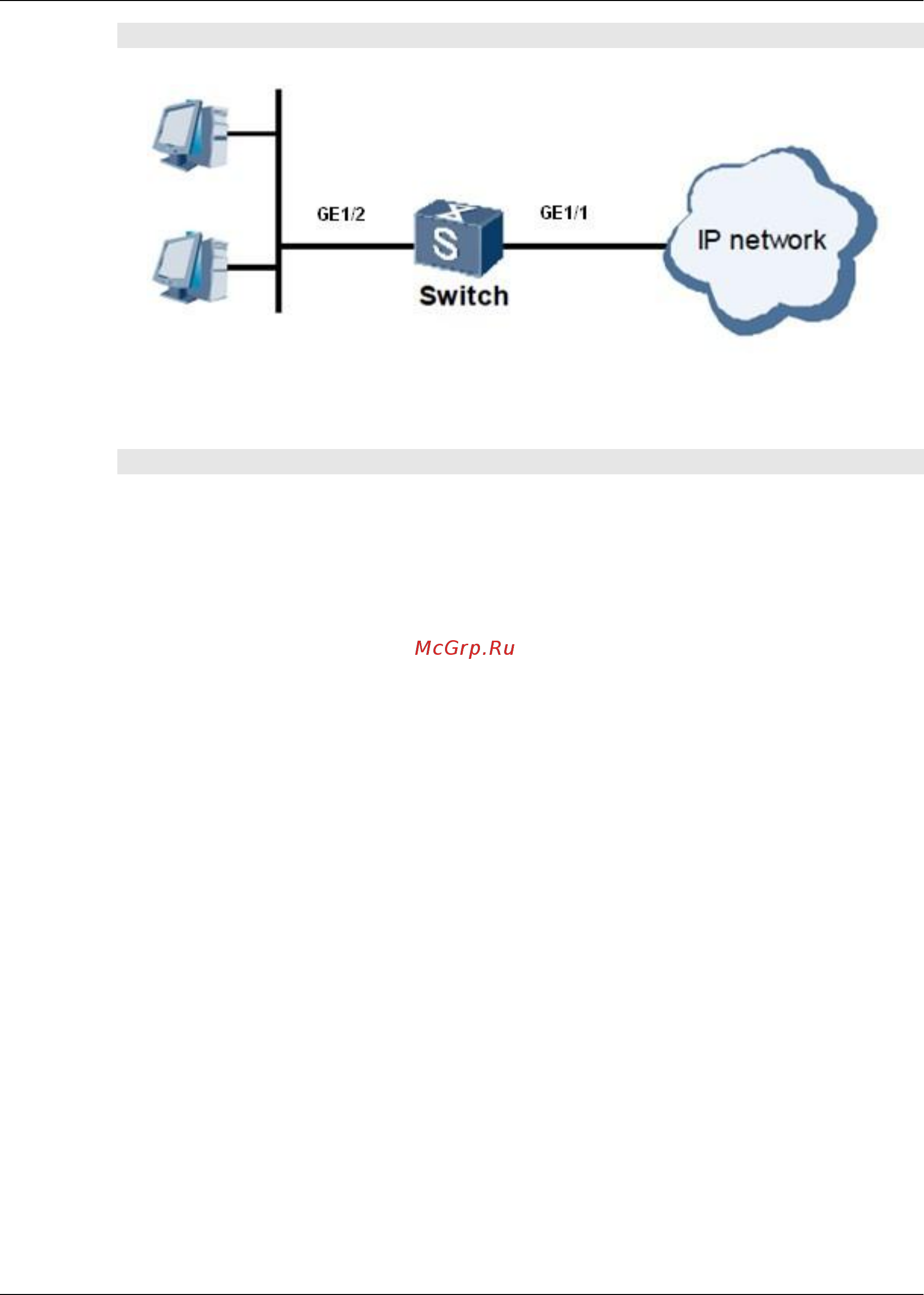

Network Diagram

Figure Counting Template Topology

Configuration Steps

1. Configure counting template.

Switch#configure

Switch(config)# counter 1 packet sort total

2. Create ACL.

Switch(config)#filter-list 1001

Switch(configure-filter-ipv4-1001)#

3. Configure ACL rule.

Switch(configure-filter-ipv4-1001)#filter 1 ip 10.1.1.1/24 any

4. Bind counting template with ACL.

Switch(configure-filter-ipv4-1001)#filter 1 action counter 1

5. Apply ACL to interface.

Switch(configure-filter-ipv4-1001)#quit

Switch(config)#interface fastethernet 1/0/2

Switch(config-ge1/0/2)#filter-list in 1
