Chapter8 Reliability Configuration
8-22
SwitchA and SwitchC are in the same domain, domain name is Domain1 and
craeate instance 1.
SwitchB and SwitchD are in another same domain, domain name is Domain2 and
create instance 1.
SwitchA is CIST root.
In Domain1, SwitchA is CIST domain root and instance 1 domain root. Configure
root protection on interface of fe1/1 and fe1/2 of SwitchA.
In Domain2, SwitchB is CIST domain root and SwitchD is instance 1 domain root.
FE1/1 of SwitchC and SwitchD are configured as edge port and enable BPDU
protection function at the same time.

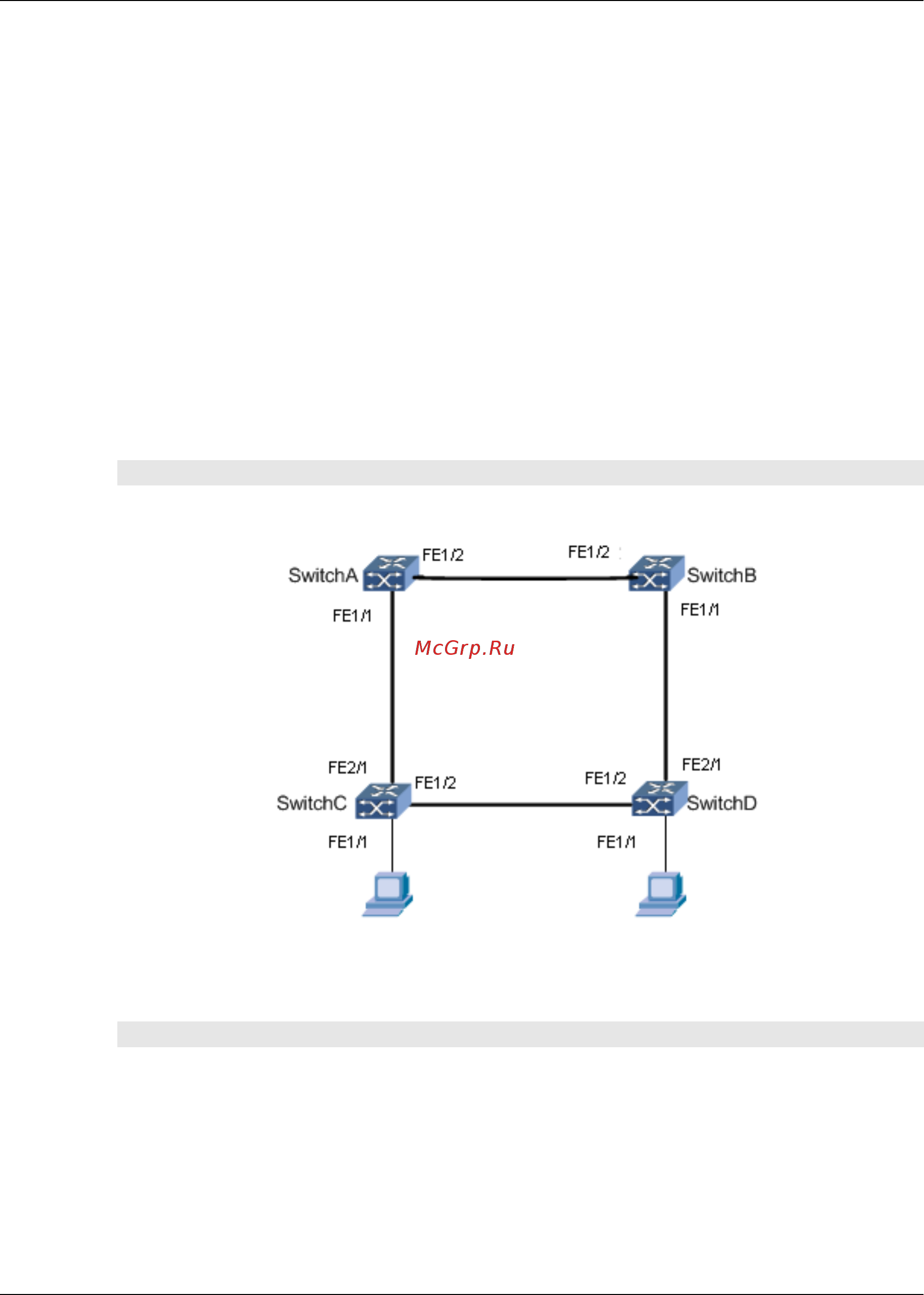

Network Diagram
Figure MSTP Topology
Configuration Steps
1. Configure SwitchA.
//Configure SwitchA to join in Domain1.
SwitchA#configure
%Enter configuration commands.End with Ctrl+Z or command "quit" & "end"
SwitchA(config)#stp
SwitchA(config-stp)#stp mode mstp
