Chapter8 Reliability Configuration
8-37
In double point‟s uplink network environment, configure RLINK function. Master
interface and slave interface are configured separately on M1 and M2. The master
interface is fe1/1 of M1 and slave interface is fe1/2 of M2.

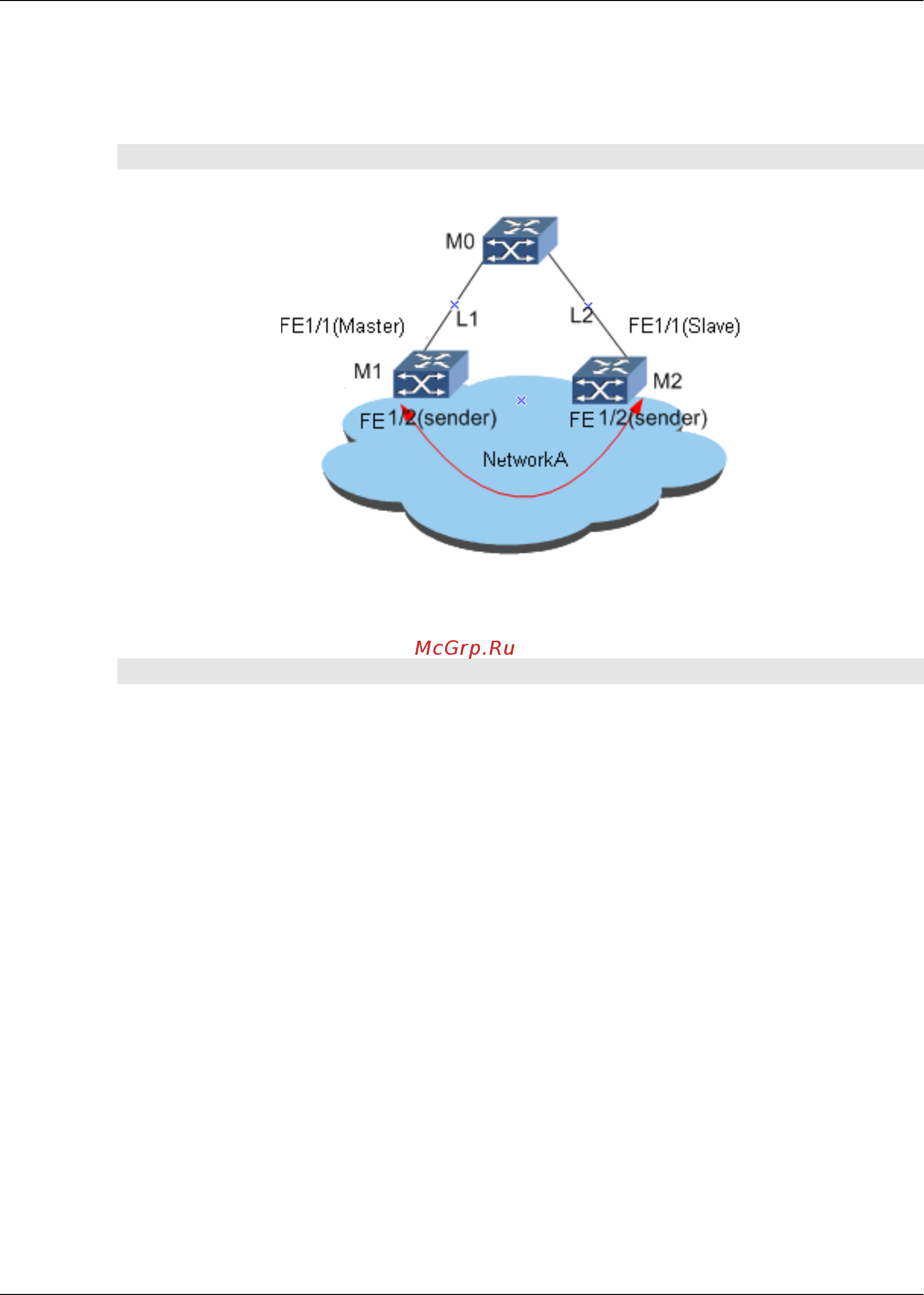

Network Diagram
Figure Double Points Uplink Topology
Configuration Steps
1. Configure device M1.
//Create RLINK group1.
M1#configure
M1(config)#rlink group 1
M1(config-rlink1)#type double
M1(config-rlink1)#active
M1(config-rlink1)#quit
M1(config)#
//Add fe1/1 to RLINK group1 and make it to be master interface.
M1(config)#interface fastethernet 1/1
M1(config-fe1/1)#join rlink group 1 master
M1(config-fe1/1)#rlink enable
M1(config-fe1/1)#quit
M1(config)#
//Add fe1/2 to RLINK group1 and make it to be sender interface.
