Chapter1 Basic Configuration
1-24
1.4.1.6 FTP Server Example
Purpose
This section introduces the example that the switch as a FTP server, to implement
config file backup and software upgrade.
Device
Configuration
Switch
Start FTP Server with configuration of username and password
and so on
PC
Switch login through FTP client program
Network Requirement
Remote PC as the FTP client manipulates configurations to the switch as the FTP
server:
Configuration of FTP with username „switch‟ and password „hello‟, and w/r authority to
switch Flash root is assigned to the user. The inband or outband IP address of the
switch is 1.1.1.1 and PC IP address is 1.1.1.2 that the switch and PC are routing
available. The application program „switch.z‟ of the switch is stored in PC and it is
uploaded from PC to the remote switch through FTP when the switch config file
„config‟ is downloaded to the PC to implement configuration file backup.
Topology

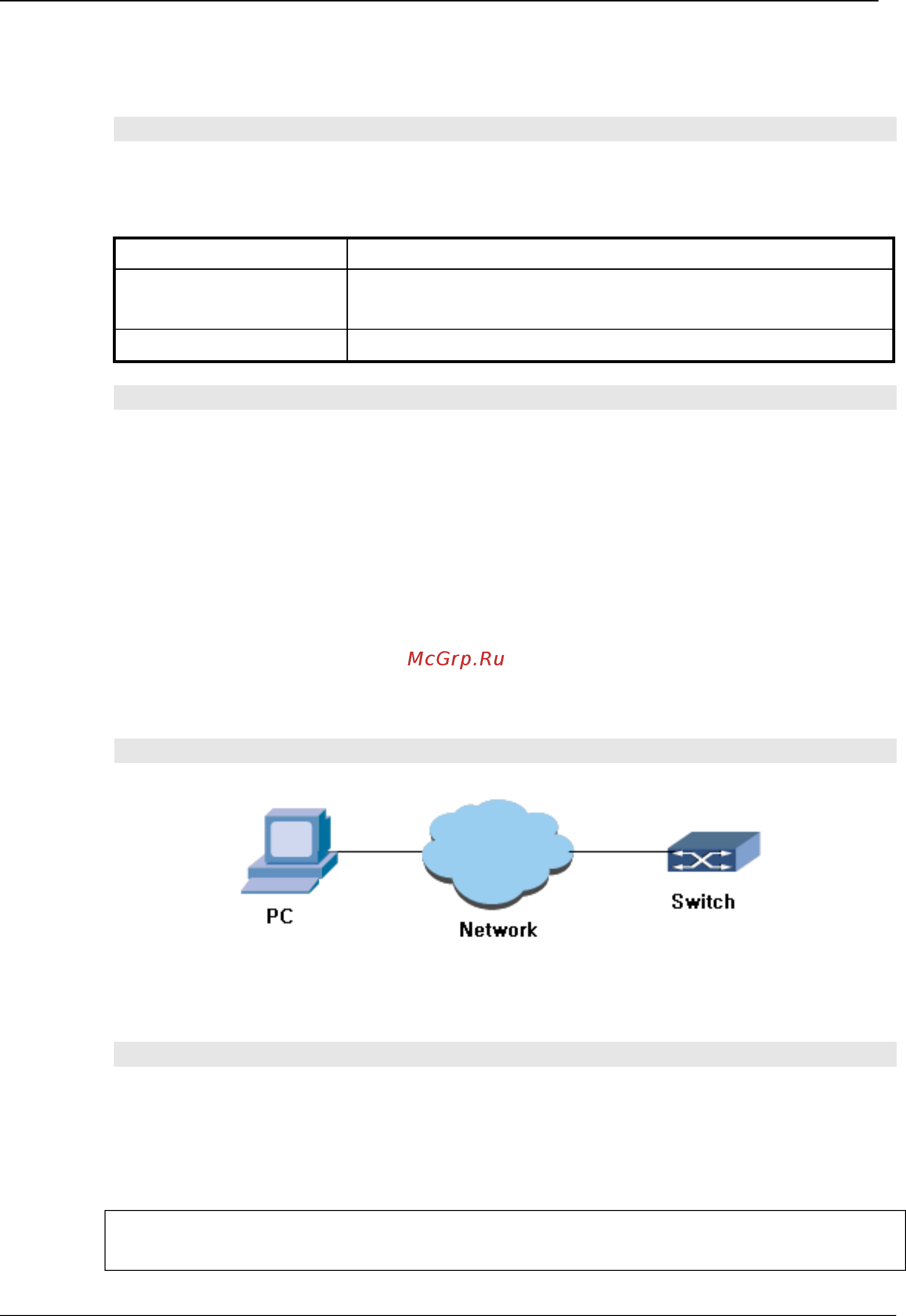

Figure FTP Configuration Topology
Process
Switch configuration:
1. User logs into the switch (local login via Console port or remote login via telnet) and
start the FTP service up:
QSW-2800#config
QSW-2800(config)#ftpd
