Chapter2 Layer 2 Ethernet Configuration
2-35
Divide two VLANs separately to be VLAN 100 and VLAN 200 and configure
VLAN description to be “Development100” and “Market200”.
Add computers of development department and Server1 into VLAN100.
Add computers of market department and Server2 into VLAN200.

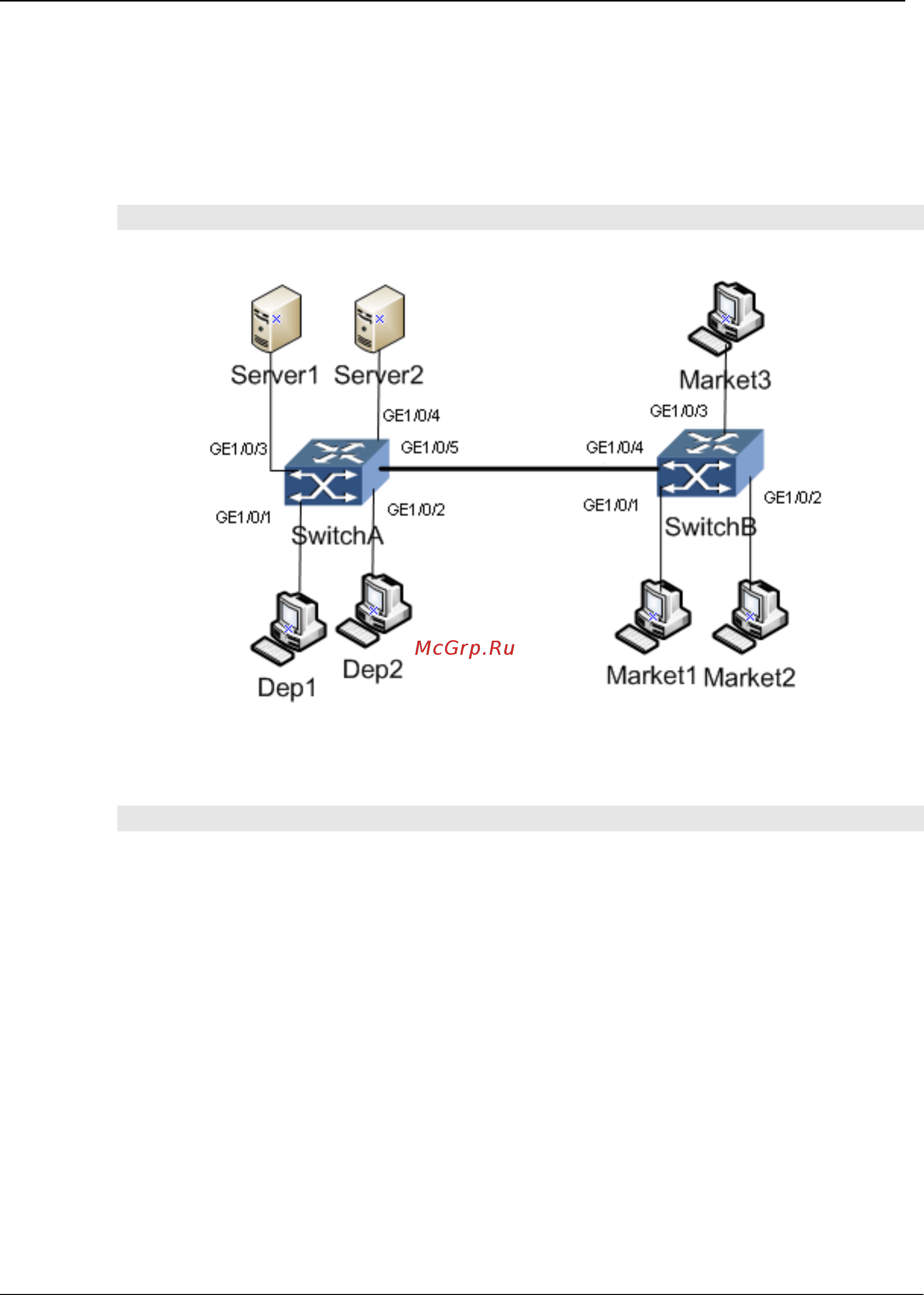

Network Topology
Figure VLAN Configuration Topology
Configuration Step
1. Configure SwitchA.
SwitchA#configure
%Enter configuration commands.End with Ctrl+Z or command “quit” & “end”
//Create VLAN100 and enter its configuration view.
SwitchA(config)#interface vlan 100
SwitchA(config-vlan-100)#
//Confiugre VLAN100 description information to be Development100.
SwitchA(config-vlan-100)#description Development100
//Add interface Ge1/0/1, Ge1/0/2 and Ge1/0/3 into VLAN100 and configure the
VLAN100 to be the PVID of interface Ge1/0/1, Ge1/0/2 and Ge1/0/3.
SwitchA(config-vlan-100)#quit
SwitchA(config)#
