Chapter7 Security Configuration
7-26

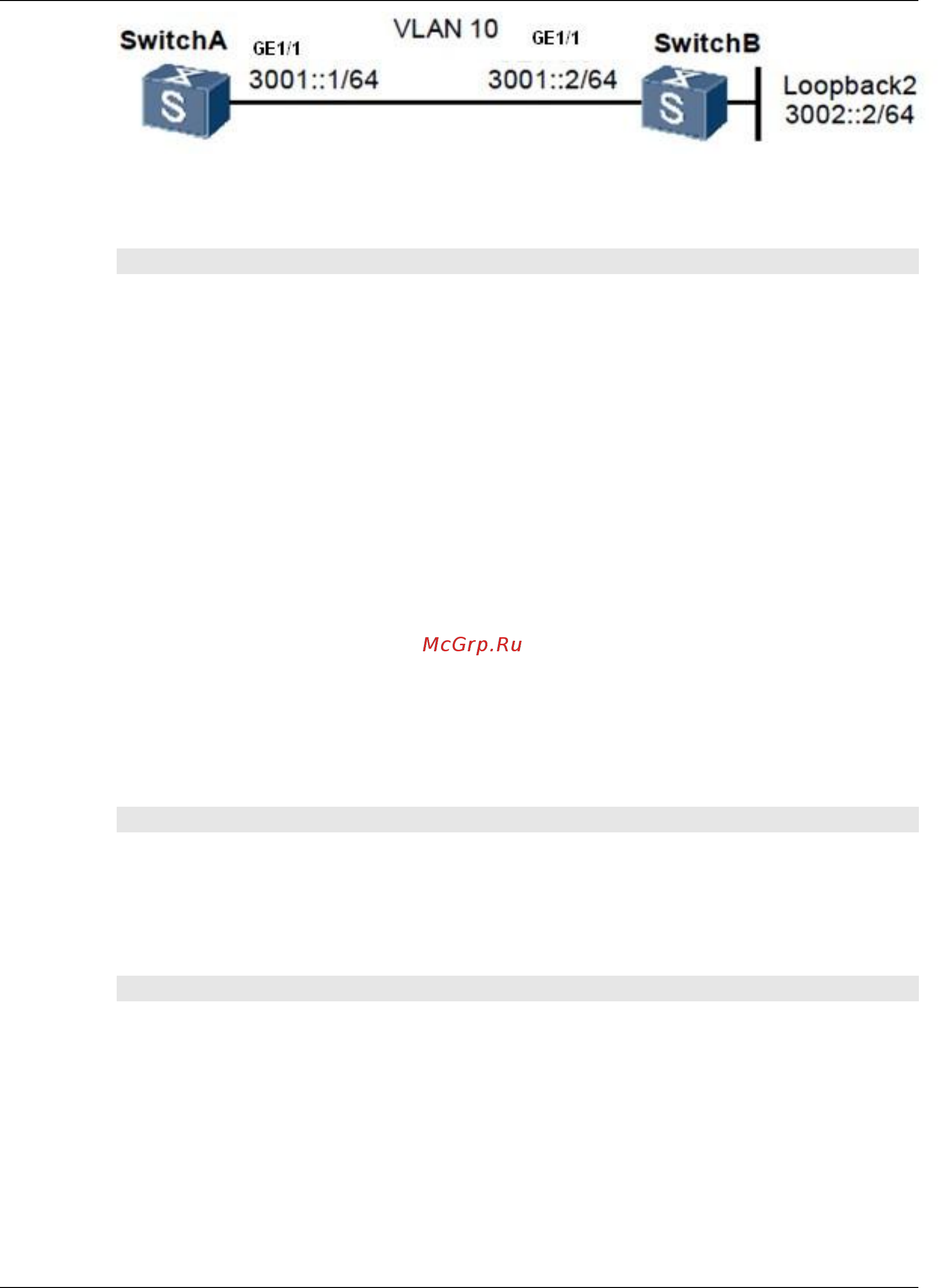

Figure Layer3 ACL6 Topology
Configuration Steps
1. Create layer3 ACL6.
Switch#configure
Switch(config)#filter-list 3001
Switch(configure-filter-ipv6-3001)#
2. Create layer3 ACL6 rule.
Switch(configure-filter-ipv6-3001)#filter 1 ip6 3001::2/64 any
3. Create layer3 ACL6 action.
Switch(configure-filter-ipv6-3001)#filter 1 ac deny
4. Bind ACL to interface GE1/0/1 of SwitchA ingress direction.
Switch(configure-filter-ipv6-3001)#quit
Switch(config)#interface fastethernet 1/0/1
Switch(config-ge1/0/1)#filter-list in 3001
7.2.8.5 Configure Rate Limitation Template
Network Requirements
Switch is used as gateway, connecting with user PC. Require to configure ACL to limit
the rate of message received by Switch of interface GE1/0/2 with source MAC to be
0001-0203-0405, and modify the DSCP value of yellow message to be AF11. .
Network Diagram
