Chapter7 Security Configuration
7-25

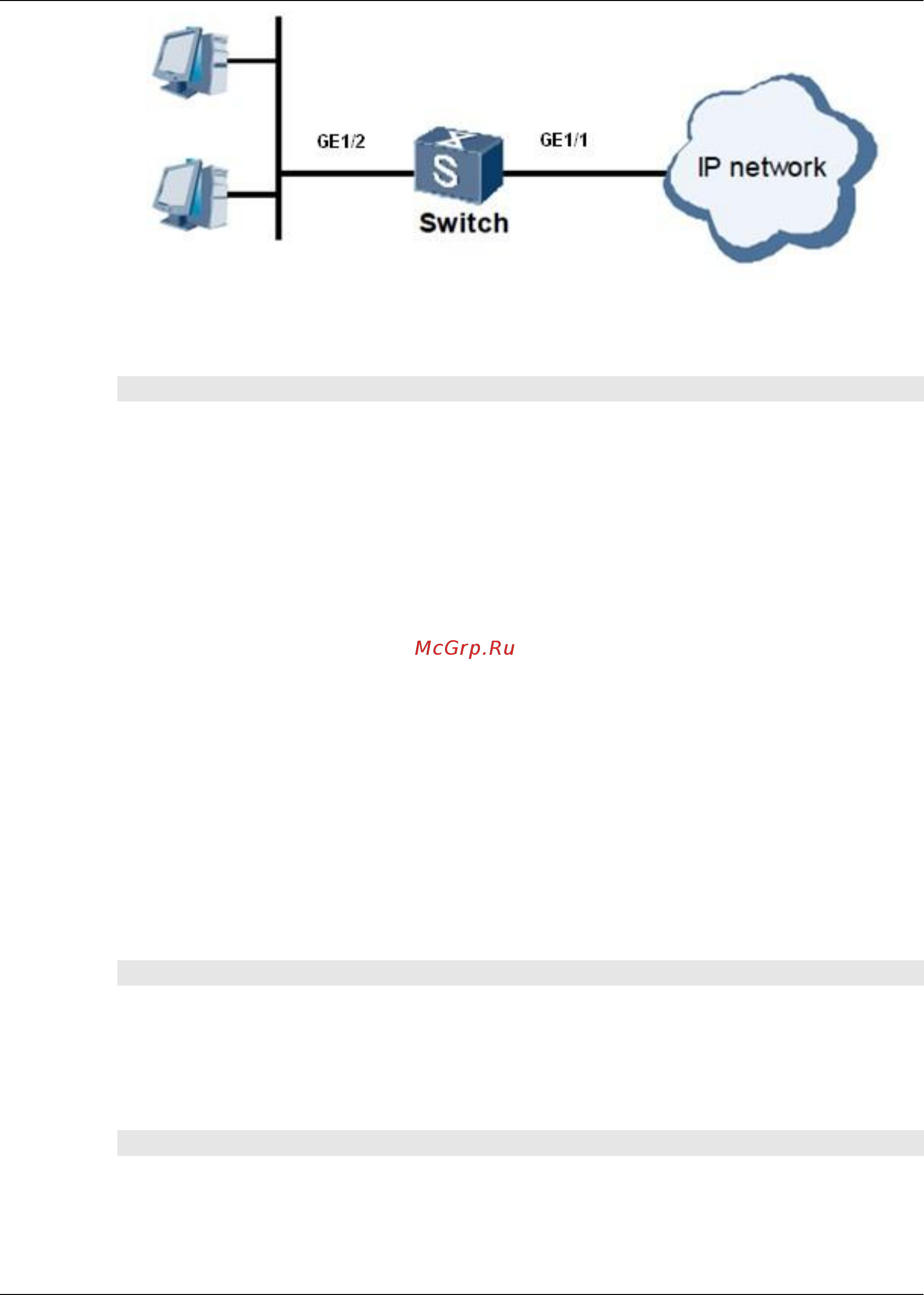

Figure Mixed ACL Topology
Configuration Steps
1. Create mixed ACL.
Switch#configure
Switch(config)#filter-list 2001
Switch(configure-filter-hybrid-2001)#
2. Configuer layer2 ACL rule.
Switch(configure-filter-hybrid-2001)#filter 1 mac 00:01:02:00:00:00/24 any eth-type
any provider any any customer any any ip 1.2.3.1/24 any proto-type any
3. Configure layer2 ACL action.
Switch(configure-filter-hybrid-2001)#filter 1 action cpu
4. Apply ACL to interface.
Switch(configure-filter-hybrid-2001)#quit
Switch(config)#interface fastethernet 1/0/2
Switch(config-ge1/0/2)#filter-list in 2001
7.2.8.4 Configure Layer3 ACL6
Network Requirements
SwitchA is connected with SwitchB by GE interface. Configure ACL6 rule on SwitchA
and deny message with source IPv6 address of 3001::2 to enter GE1/0/1 interface of
SwitchA.
Network Diagram
