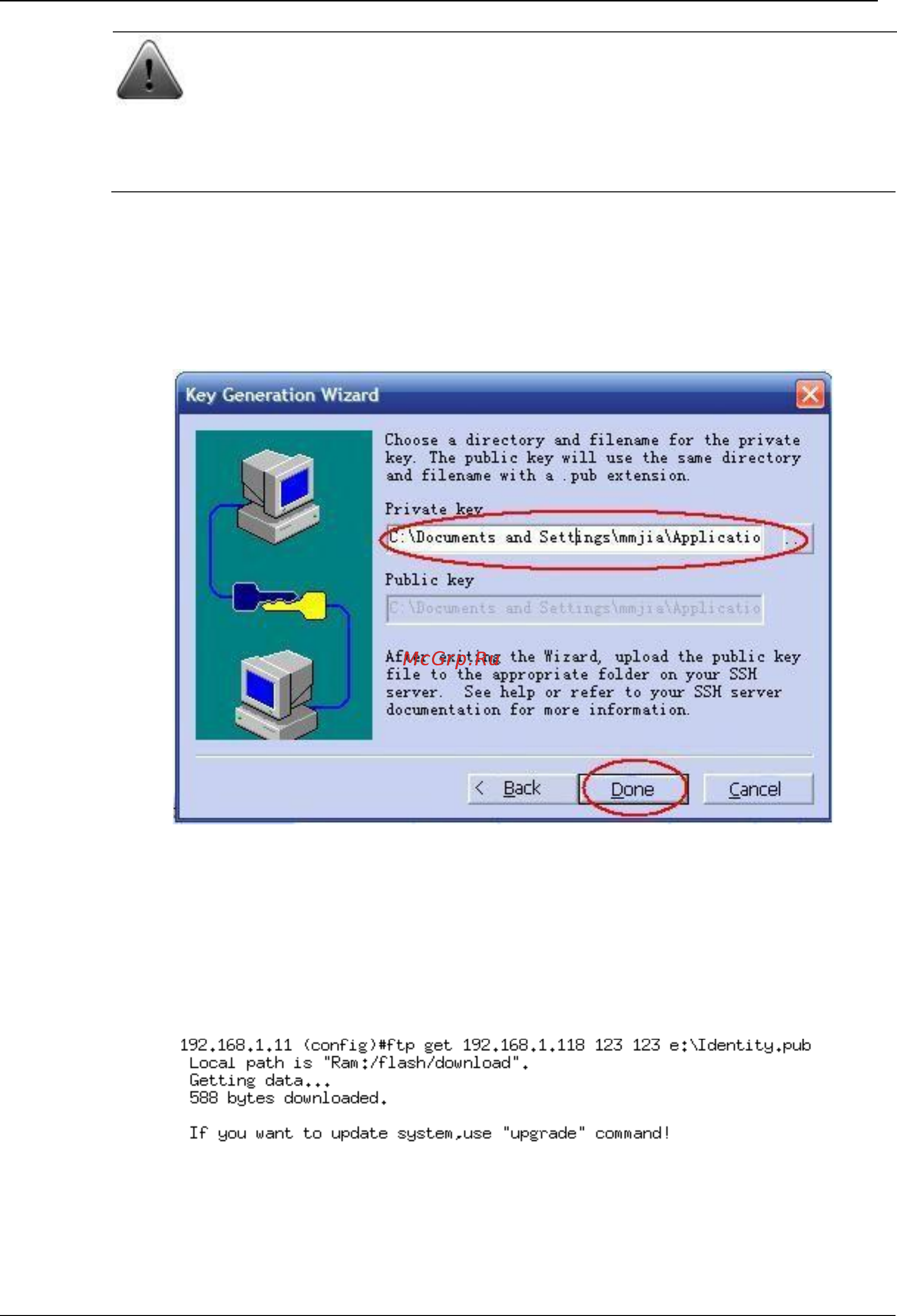

Chapter1 Basic Configuration
1-15
It is suggested to keep moving mouse inside the area of private/public key generation dialog when
the generation is running, otherwise the progress bar will be slow.
7. The saving path of initial public key document that is generated must be
the default one that is recommended by the Secure CRT. Click „Done‟ to
finish the generation, referring to Figure SSH Key Document Saving:
Figure SSH Key Document Saving
8. Modify the generated initial key document „Identity.pub‟ (Please refer to
Appendix A for the modification of initial public key document) and
download it into the device via FTP, referring to Figure FTP Download of
Generated Initial Public Key:
Figure FTP Download of Generated Initial Public Key
9. Copy the downloaded initial public key document to user category of the
device, referring to Figure Copy the Initial Public Key to Designated User
Notice:
