Chapter1 Basic Configuration
1-8
2. Input relative parameters in the pop-up dialog of „Quick Connect‟, where
the „Hostname‟ indicates inband IP address configured in the switch,
while the „Username‟ indicates username of local user that was created in
the device via command „username‟, referring to Figure Input SSH
Parameters:

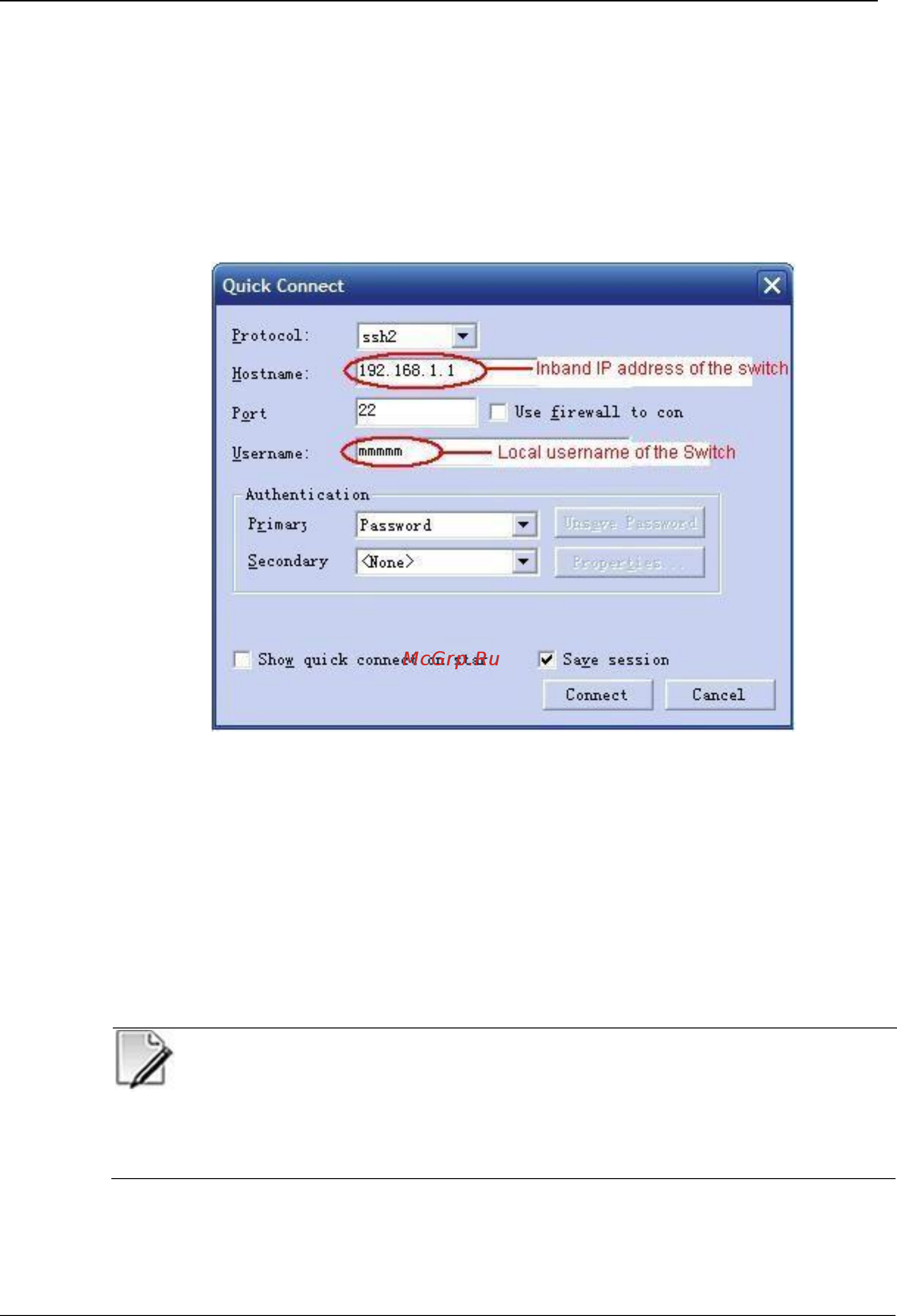

Figure Input SSH Parameters
3. Click the button of [Connect] and wait for a while until the user login
interface appears, that the user is able to perform SSH login by inputting
local user account including username and password. (It is suggested
that to perform „ping‟ command for device connection availability before
the login and connection)
The above step from 1 to 3 is for user‟s first time of SSH login. If the SSH has already
been created, the following steps can be suggested for SSH login.
Notice:
