Chapter1 Basic Configuration
1-9
4. Click the button [Connect] from the Secure CRT interface directly,

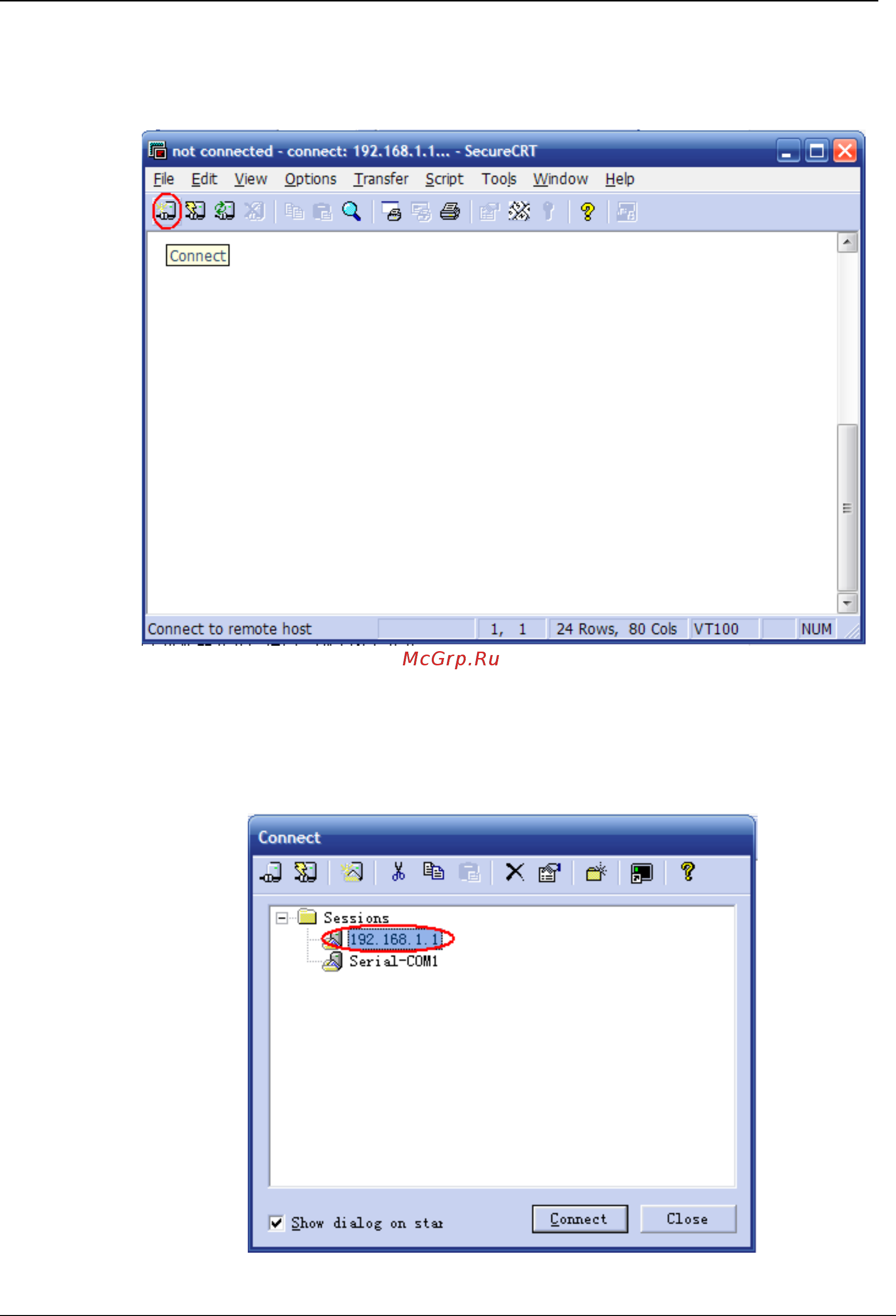

referring to red circle marked in Figure SSH Login (1):
Figure SSH Login (1)
5. Select the area marked in red circle from pop-up [Connect] dialog,
referring to Figure SSH Login (2), and click [Connect].
Figure SSH Login (2)
