COOLING SYSTEM 4-13
Radiator

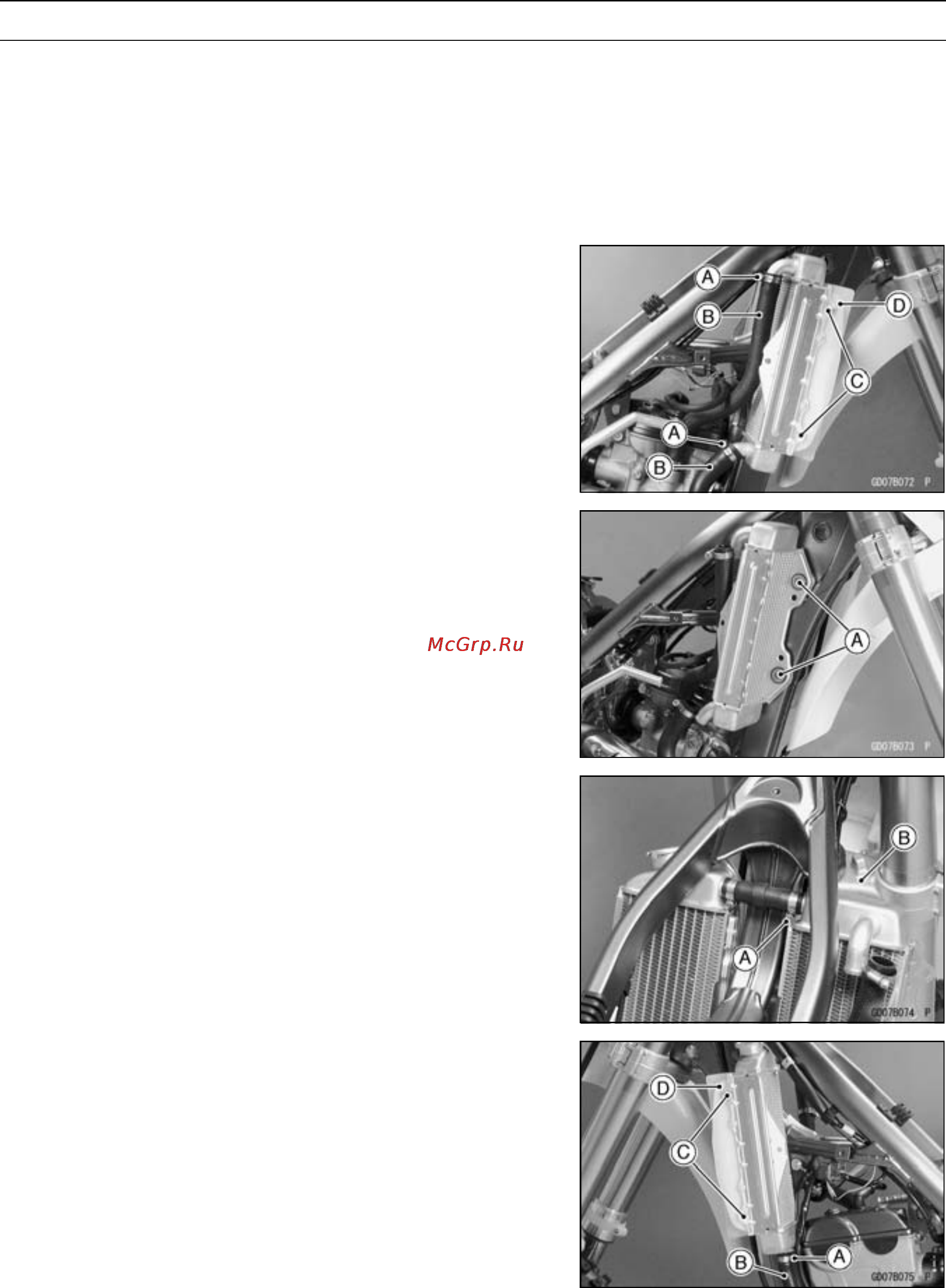

Radiator Removal
•
Drain the coolant (see Coolant Draining)
•
Drain the engine oil from the oil filter oil chamber (see
Water Pump Removal)
•
Remove:
Radiator Shrouds (see Fuel System chapter)
Fuel Tank (see Fuel System chapter)
•
Loosen:
Clamp Screws [A]
•
Remove:
Radiator Hoses [ B]
Bolts [C]
Right Radiator Screen [D]
•
Unscrew the bolts [A].
•
Loosen:
Clamp Screw [A]
•
Remove:
Right Radiator [B]
•
Loosen:
Clamp Screw [A]
•
Remove:
Radiator Hose [B]
Bolts [C]
Left Radiator Screen [D]
