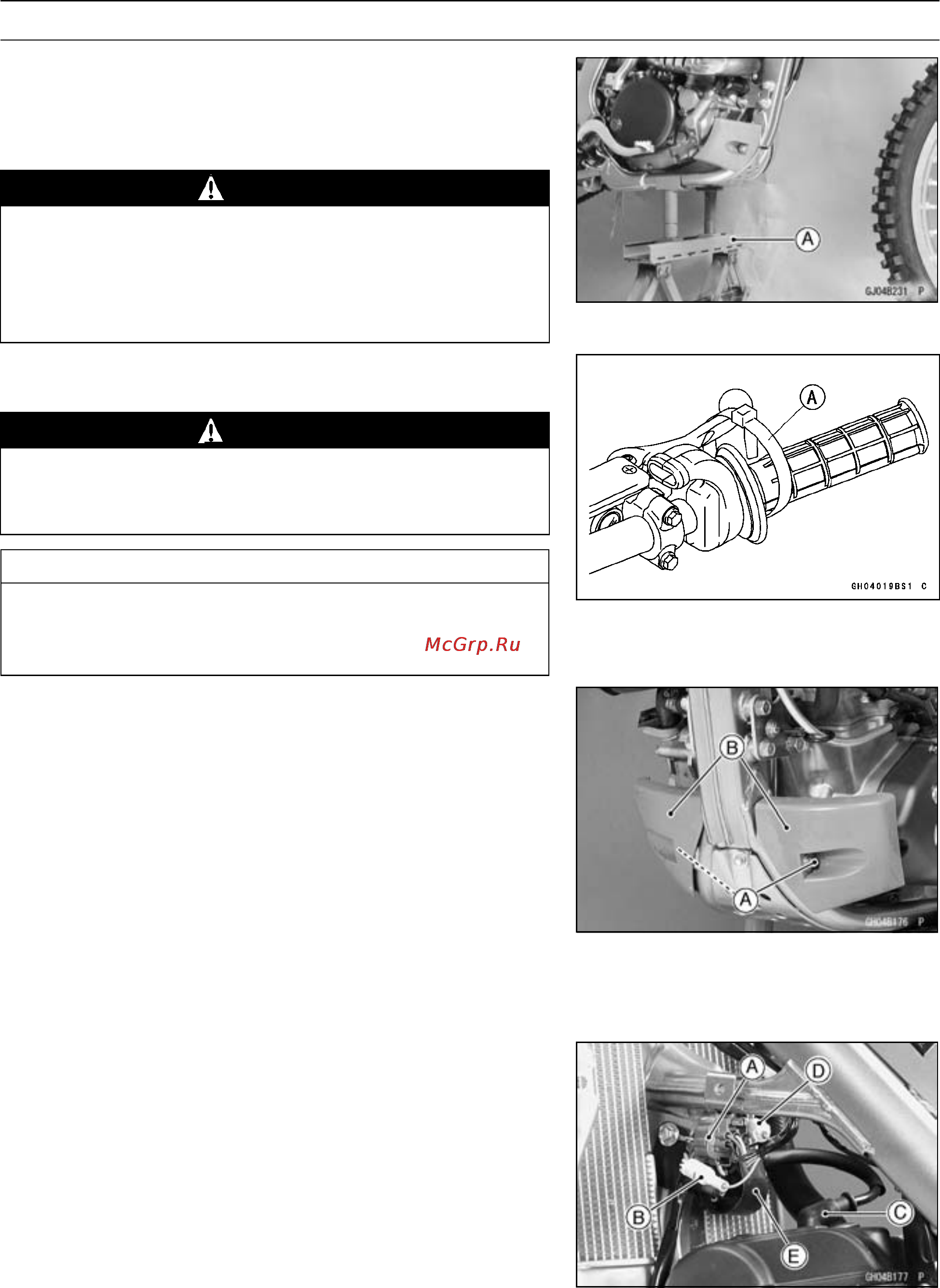

ENGINE REMOVAL/INSTALLATIO N 8-5

Engine Removal/Installation

Engine Removal

•

Place the jack [A] under the frame to support the motor-

cycle.

Special Tool - Jack: 57001–1238

WARNING

For engine removal, the swingarm pivot shaft must

be pulled out, causing the swingarm and rear wheel

assembly to become detached. To prevent the mo-

torcycle from falling, make sure to support the fram

with a jack.

•

Squeeze the brake lever slowly and hold it with a band

[A].

WARNING

Be sure to hold the front brake w hen removing the

engine, or the motorcycle may fall over. It could

cause an accident and injury.

CAUTION

Be sure to hold the front brake w hen removing the

engine, or the motorcycle may fall over. The engine

or the motorcycle could be damaged.

•

Drain:

Engine Oil (see Periodic Maintenance chapter)

Coolant (see Periodic Maintenance chapter)

•

Remove the mounting bolt [A] and remove the engine

guard [B].

•

Remove:

Side Covers, Seat (see Frame chapter)

Fuel Tank (see Fuel System chapter)

•

Disconnect:

Magneto Lead Connector [A]

Neutral Switch Lead Connector [B]

Spark Plug Cap [C]

Ignition Coil Lead Connector [D]

Ignition Coil with Coil Bracket [E]
