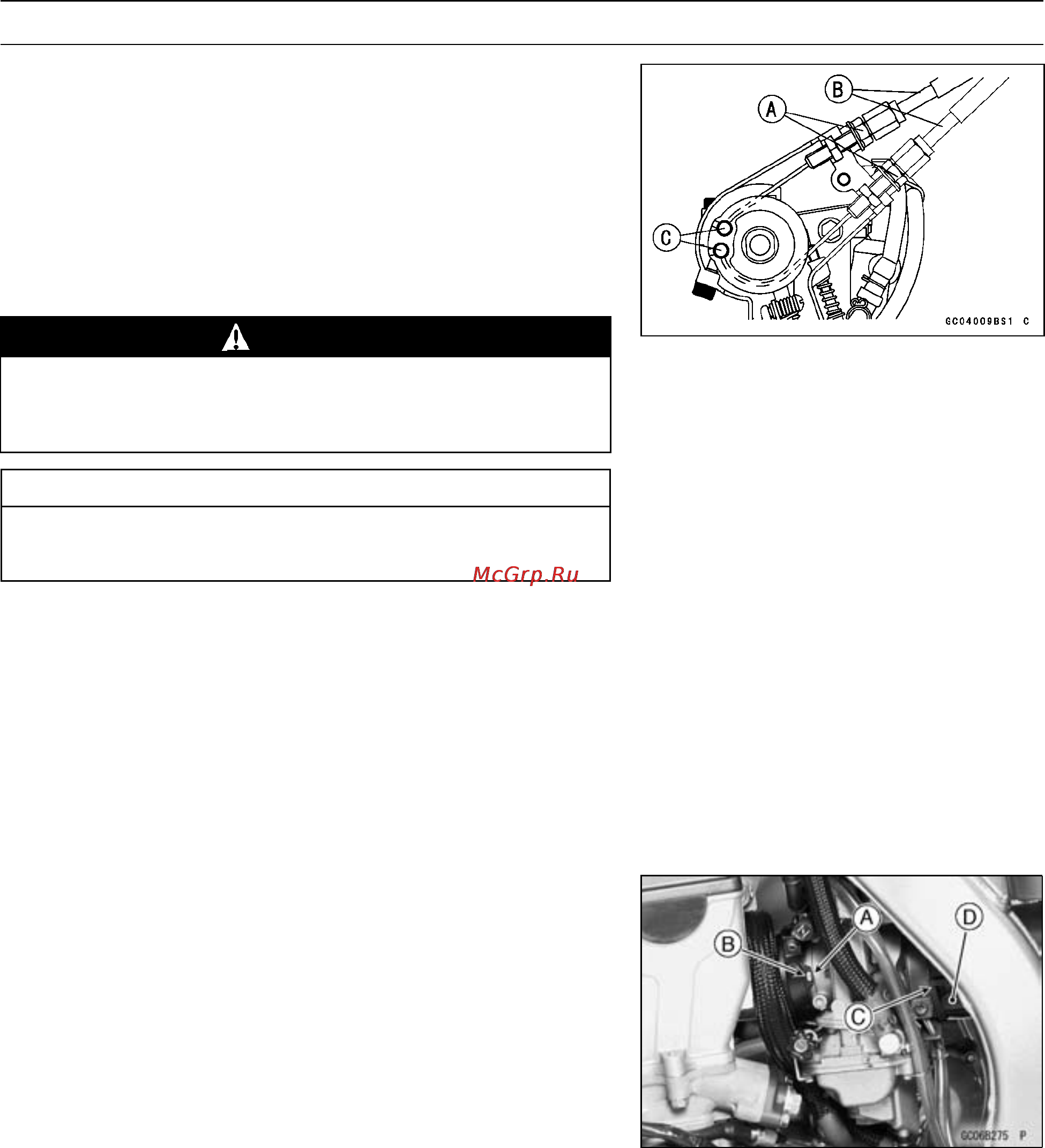

3-16 FUEL SYSTEM
Carburetor
•
Loosen the locknut [A].
•
Pull out the end of the throttle cables [B].
•
Free the tips [C].
•
Remove the carburetor right side of the frame.
•
Drain the fuel from the float bowl by removing the drain
plug. After draining, install the drain plug securely.
•
After removing the carburetor, push a clean, lint-free towel
into the carburetor holder and the air cleaner duct to keep
dirt or other foreign material from entering.
WARNING
If dirt or dust is allowed to pass through into the
carburetor, the throttle may become stuck, possibly
causing an accident.
CAUTION
If dirt gets through into the engine, excessive en-
gine wear and possibly engine damage will occur.
Carburetor Installation
•
Install:
Throttle Cables (see this chapter)
Hot Start Plunger (see this chapter)
•
Tighten:
Torque - Carburetor Throttle Pulle y Cover Bolt: 3.4 N·m
(0.3 kgf·m, 30 in·lb)
Throttle Cable Locknuts: 7.0 N·m (0.7 kgf·m, 61
in·lb)
•
When installing the carburetor into the carburetor holder,
fit the projection [A] of the carburetor with the groove [B]
on the holder.
○
Fit the claw [C] of the clamp onto the groove [D] of the
inlet duct.
•
Tighten the clamps securely.
Torque - Carburetor Holding Clamp Screw : 2.0 N·m (0.2
kgf·m, 17 in·lb)
