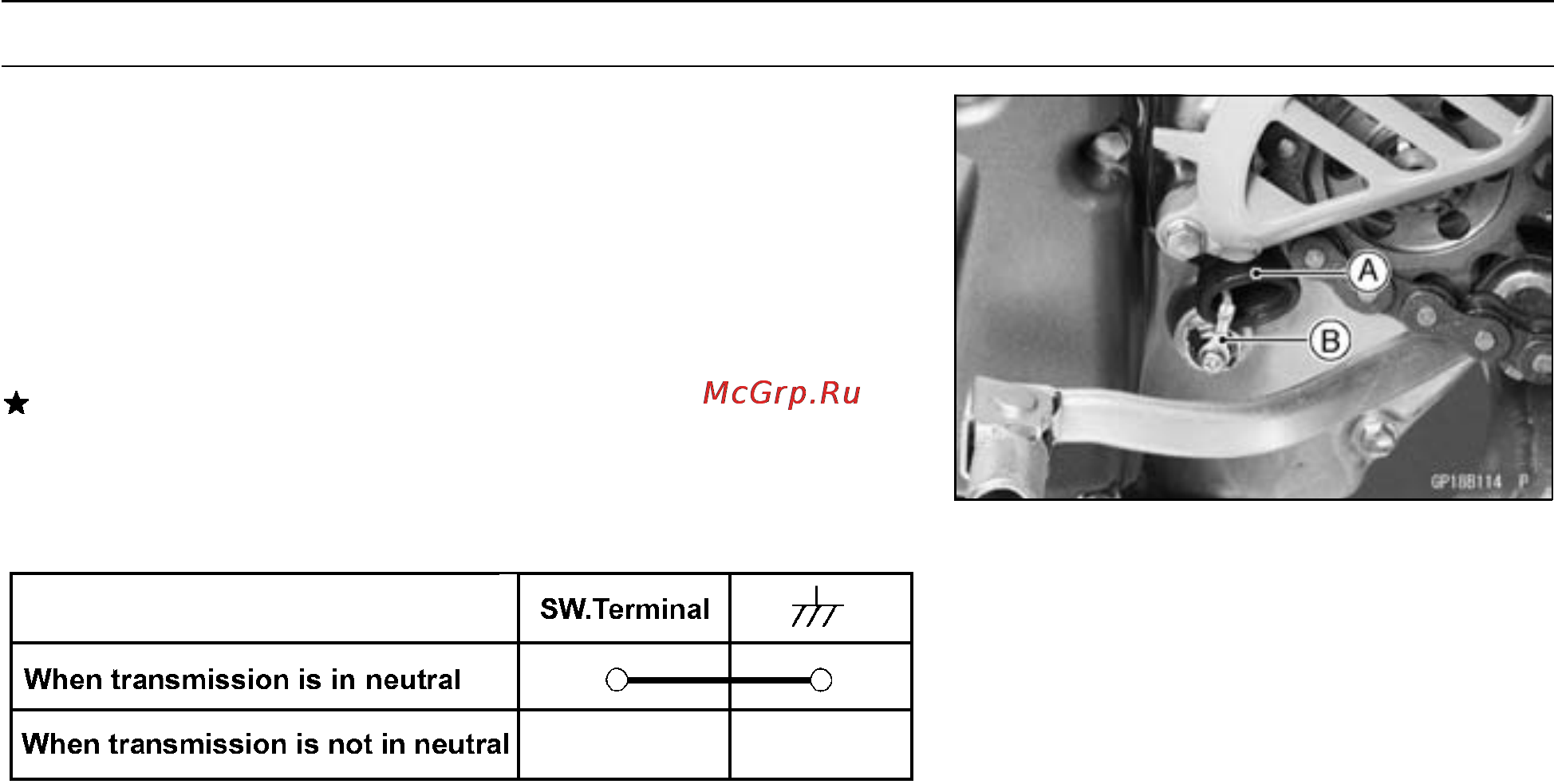

16-24 ELECTRICAL SYSTEM
Neutral Switch
Neutral Switch Inspection
•
Slide out the dust cover [A].
•
Disconnect the connector [B].
○
Unscrew the screw.
•
Using a hand tester, check to see that only the con-
nections shown in the table have continuity (about zero
ohms).
If the switch has an open or short, repair it or replace it
with a new one.
Special Tool - Hand Tester: 57001–1394
Neutral Switch Connections
