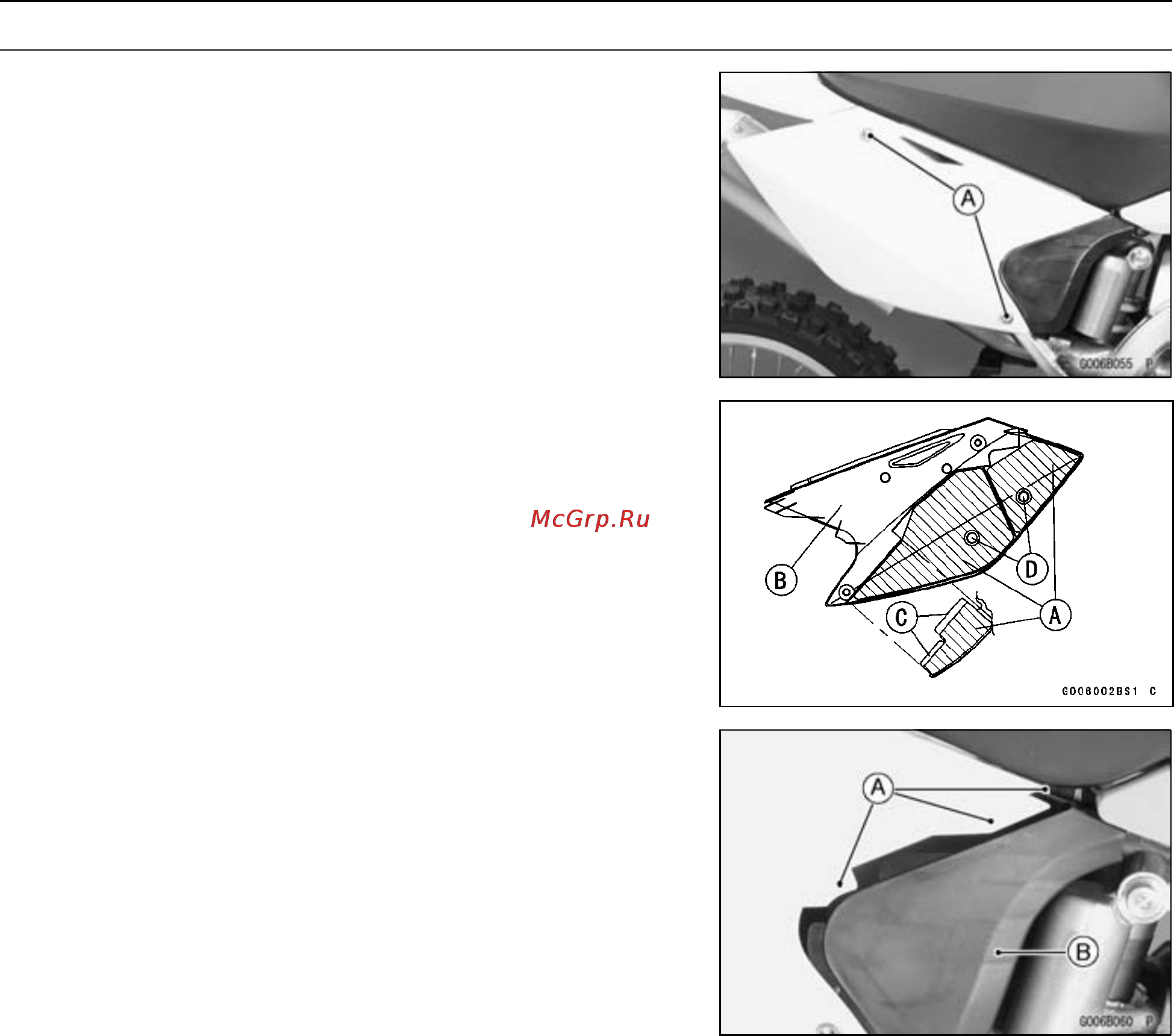

15-6 FRAME
Side Cover
Side Cover Removal
•
Unscrew the bolts [A] and remove the side cover.
Side Cover Installation
•
Stick the pads [A] on the inside of the right side cover [B].
○
Bend this parts [C] and stick it to the upper surface of the
rib.
○
Install the dampers [D].
•
Insert the tabs [A] of the cover into the air cleaner housing
[B].
