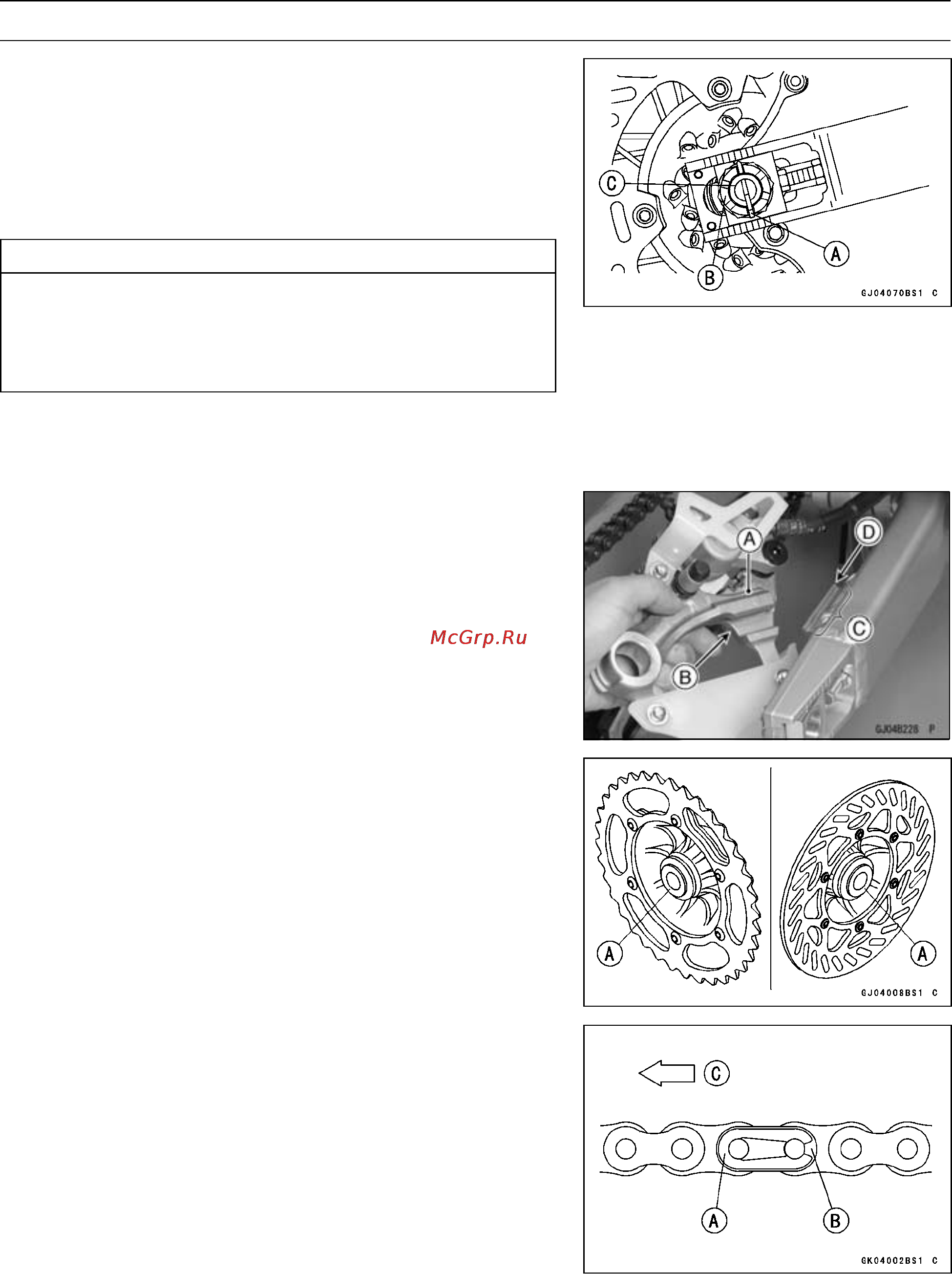

10-8 WHEELS/TIRES

Wheels (Rims)

•

Remove

Cotter Pin [A]

Axle Nut [ B]

•

Pull out the axle [C].

•

Move the rear wheel back with the rear caliper installed.

•

Take off the collar and cap from the each side of the rear

hub.

CAUTION

Do not lay the wheel on the ground with the disc

facing down. This can damage or warp the disc.

Place blocks under the wheel so the disc does not

touch the ground.

•

Insert a wood wedge between the brake pads. This pre-

vents them from being moved out of their proper position,

should the brake pedal be squeezed accidentally.

Rear Wheel Installation

•

Fit the brake holder stop [A] with the stop grooves [B]

against the swingarm stop space [C] with the stop pro-

jection [D].

•

Fit the projection on the cap to the groove on the collar.

•

Install the collars [A] on the left and right side of the hub.

○

The collars are identical.

•

Install the drive chain. Install the master link clip [A] so

that the closed end of the "U" [B] points in the direction of

chain rotation [C].
