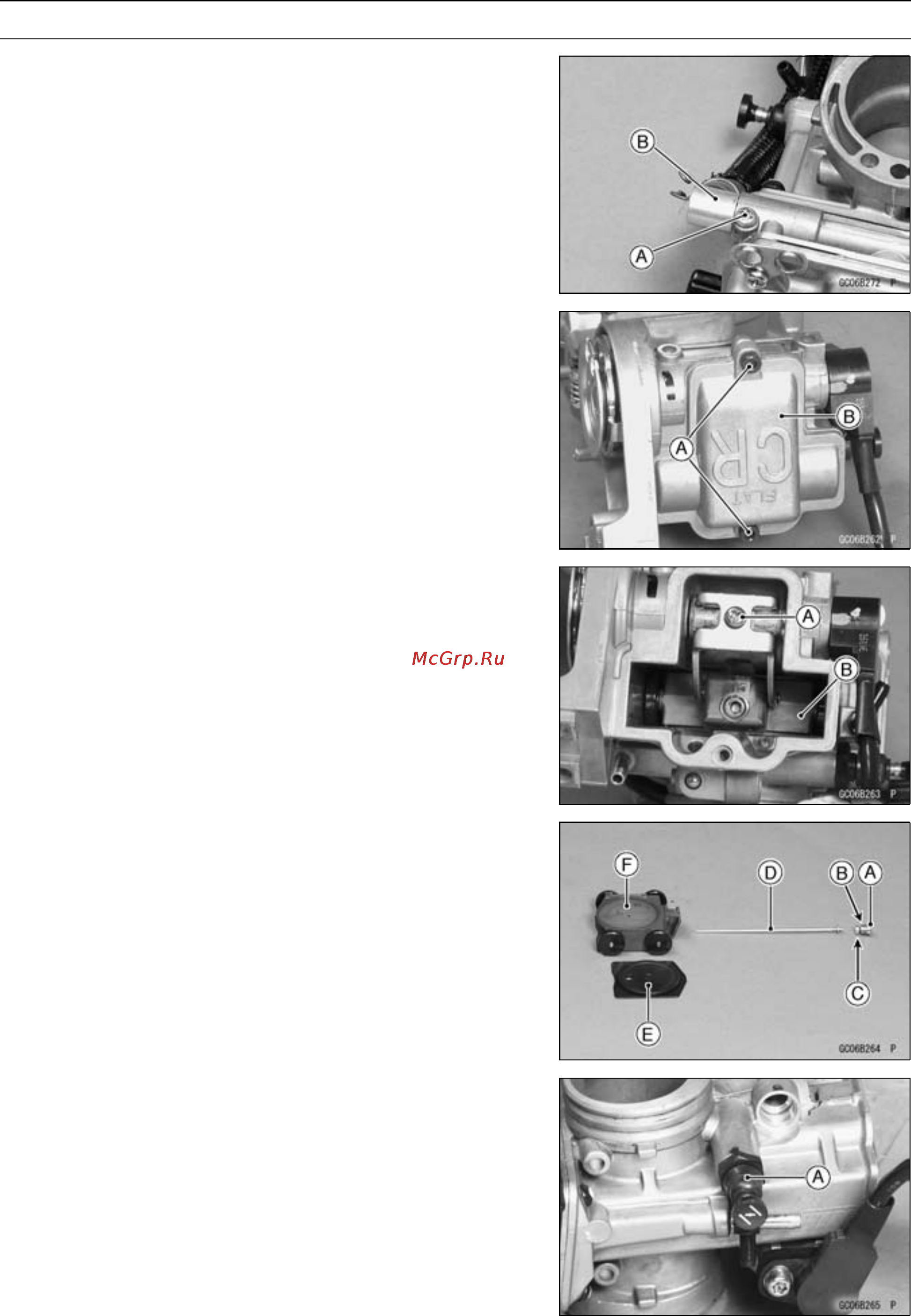

3-18 FUEL SYSTEM
Carburetor
•
Unscrew the screw [A].
•
Pull out the fuel hose f itting [B].
•
Unscrew the carburetor cap bolts [A].
•
Remove the c arburetor cap [B].
•
Unscrew the throttle valve link screw [A].
•
Pull out the throttle valve assembly [B].
•
Disassemble the throttle valve assembly; jet needle
holder [A] (unscrew), spring [B], retainer [C], jet needle
with circlip [D], O-ring with throttle valve plate [E] and
throttle valve [F].
•
Remove the choke knob/starter plunger assembly [A]
from the carburetor.
