PERIODIC MAINTENANCE 2-43
Periodic Maintenance Procedures
•

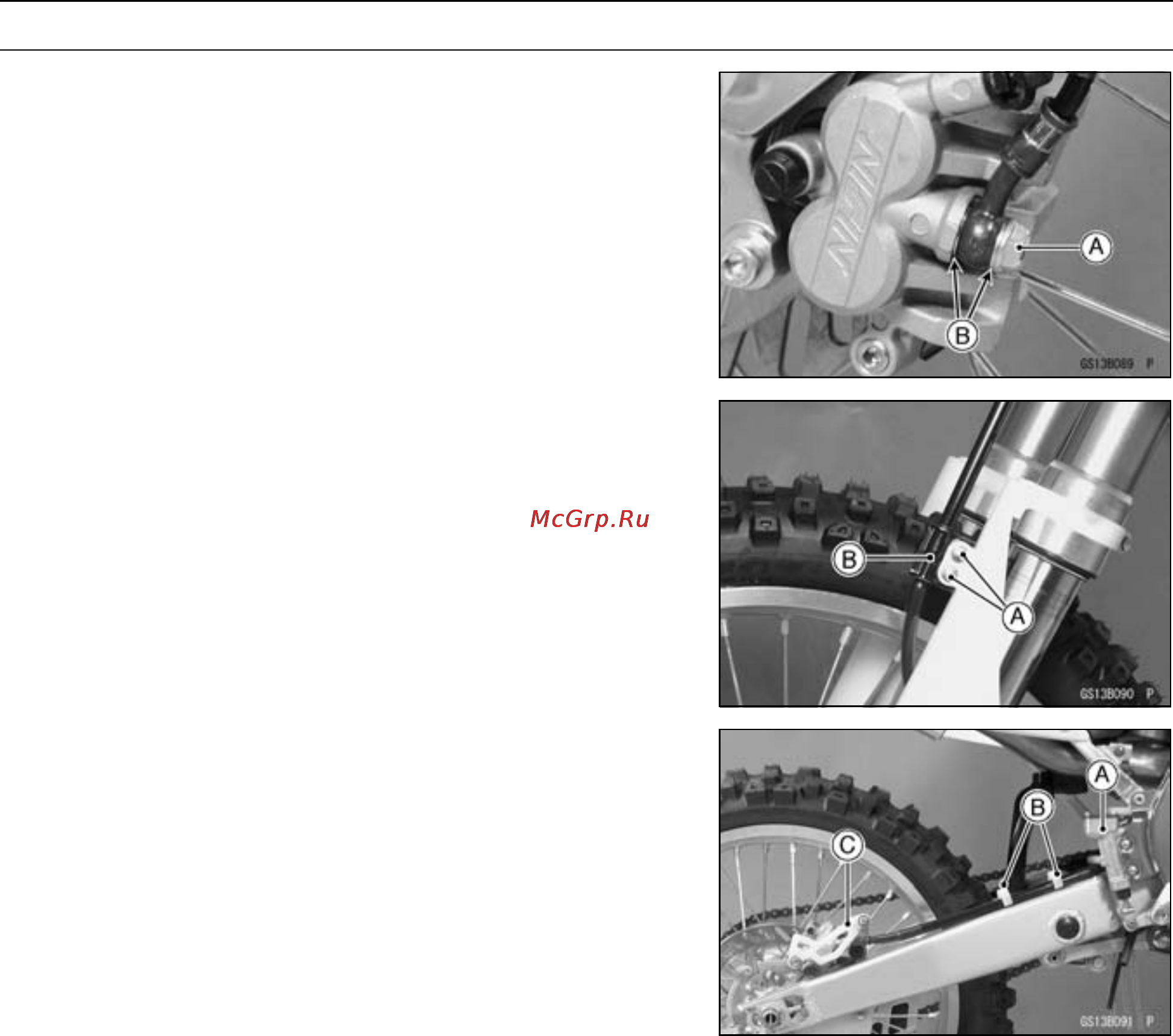

Remove each banjo bolts [A] and washers [B].
•
Replace the washers with new ones.
For Front Brake
•
Remove
Bolts [A]
BrakeHoseClamps[B]
For Rear Brake
•
Remove:
Master Cylinder [A]
Hose Clamps [B]
Caliper Cover [C]
•
When installing the hoses, avoid sharp bending, kinking,
flattening or twisting, and route the hoses according to
Cable, Wire, and Hose Routing section in the Appendix
chapter.
•
Tighten the banjo bolts on the hose fittings.
Torque - Brake Hose Banjo Bolts: 25 N·m (2.5 kgf·m, 18.0
ft·lb)
•
Fill the brake line after installing the brake hose (see
Brake Fluid Changing).
