11-8 FINAL DRIVE
Drive Chain
Drive Chain Remo val
•

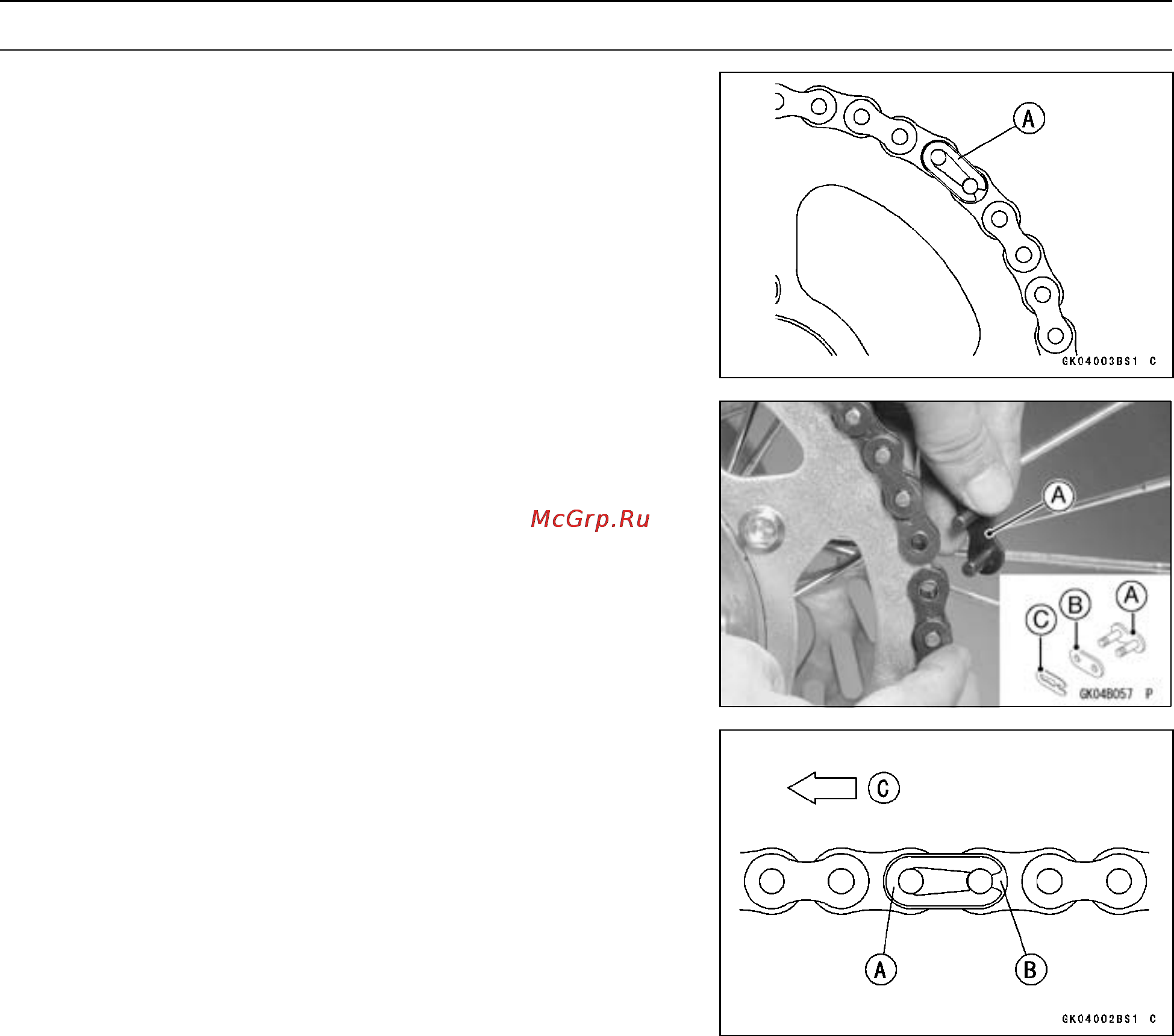

Remove the clip [A] from the master link using pliers, and
free the drive chain from the rear sprocket.
•
Remove the drive chain from the chassis.
Drive Chain Installation
•
Fit the drive chain back onto the sprockets with the ends
at the rear sprocket.
•
Install the master link [A] from the frame side.
•
Install the link plate [B] so that the mark faces out.
Clip [C]
•
Install the clip [A] so t hat the closed end of the "U" [B]
pointed in the direction of chain rotation [C].
•
Adjust the drive chain slack (see Drive Chain Slack Ad-
justment).
•
Check the rear brake (see the Brakes chapter).
