9-14 CRANKSHAFT/TRANSMISSION
Crankshaft
Crankshaft Assembly
Since the assembly of the crankshaft demands exacting
tolerances, the disassembly and reassembly of the crank-
shaft can only be done by a shop having the necessary tools
and equipment.
•
Reassemble the crankshaft according to the standard tol-
erances in Specifications.
○
Connecting rod bend, twist (see Periodic Maintenance
chapter).
○
Connecting rod big end radial clearance (see Periodic
Maintenance chapter).
○
Cold-fitting tolerance between crankpin and flywheels.
○
Side clearance between the connecting rod big end and
one of flywheels (see Periodic Maintenance chapter).
○
Crankshaft runout (see Periodic Maintenance chapter).

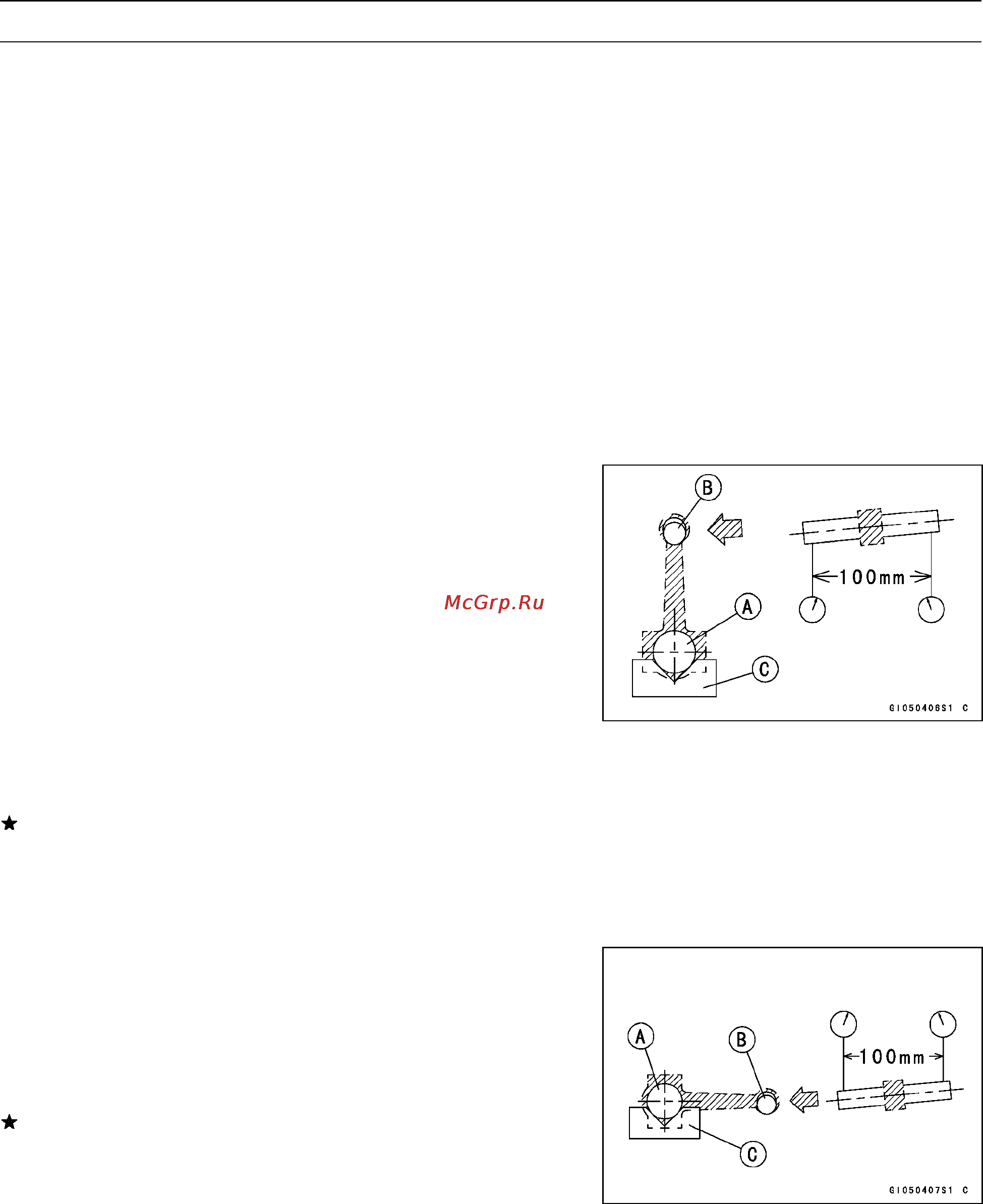

Connecting Rod Bend
•
Remove the connecting rod.
•
Select an arbor [A] of the same diameter as the connect-
ing rod big end, and insert the arbor through the connect-
ing rod big end.
•
Select an arbor of the same diameter as the piston pin and
more than 105 mm long, and insert the arbor [B] through
the connecting rod small end.
•
On a surface plate, set the big-end arbor on a V block [C].
•
With the connecting rod held vertically, use a height
gauge to m easure the difference in the height of the
arbor above the surface plate over a 100 mm length to
determine the amount of connecting rod bend.
If connecting rod bend exceeds the service limit, the con-
necting rod must be replaced.
Connecting Rod Bend
Service Limit: TIR 0.2/100 mm (0.08/3.94 in.)
Connecting Rod Twist
•
With the big-end arbor [A] still on the V block [C], hold the
connecting rod horizontally and measure the amount that
the arbor [B] varies from being parallel with t he surface
plate over a 100 mm length of the arbor to determine the
amount of connecting rod twist.
If connecting rod twist exceeds the service limit, t he con-
necting rod must be replaced.
Connecting Rod Twist
Service Limit: TIR 0.2/100 mm (0.08/3.94 in)
