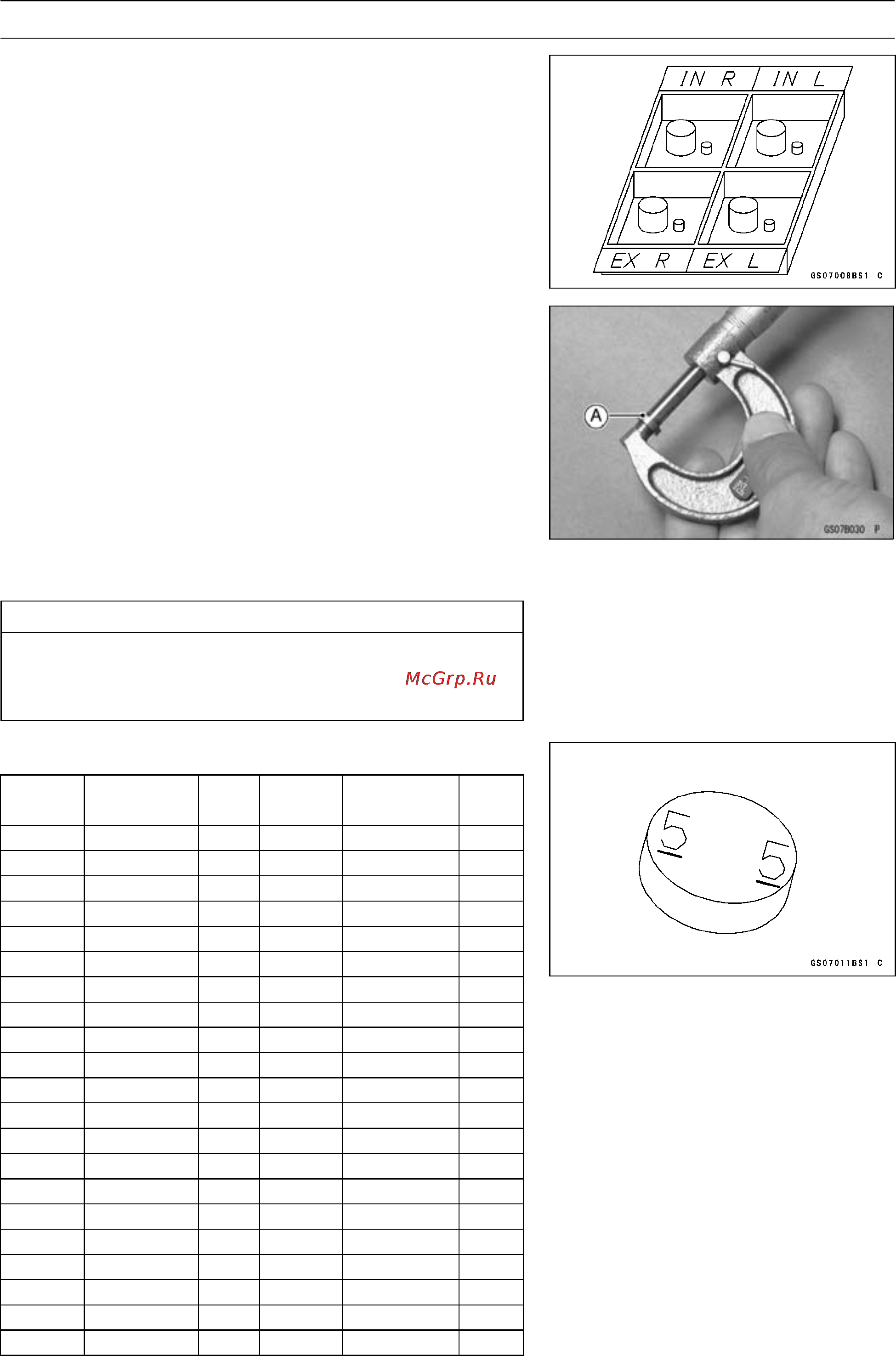

2-18 PERIODIC MAINTENANCE
Periodic Maintenance Procedures
NOTE
○
Mark and record the locations of the valve lifters and
shims so that they can be reinstalled in their original
positions.
•
Clean the shim to remove any dust or oil.
•
Measure the thickness of the removed shim [A].
•
Select a new shim thickness calculation as follows.
A=(B–C)+D
[A] Replace Shim Thickness
[B] Measured Valve Clearance
[C] Specified Valve Clearance
[D] Present Shim Thickness
Example:
(0.31 mm – 0.10 ∼ 0.15 m m) + 2.60 mm =
2.81 ∼ 2.76 mm
○
Exchange the shims for the 2.775 or 2.800 size shim.
CAUTION
Don’t use the shims for another models. This could
cause wear of the valve stem end, and valve stem
damage.
Adjustment shims
Thick-
ness
P/No.
Mark
Thick-
ness
P/No.
Mark
2.500 92180-0023 50 3.025 92180-0044 03
2.525 92180-0024 53 3.050 92180-0045 05
2.550 92180-0025 55 3.075 92180-0046 08
2.575 92180-0026 58 3.100 92180-0047 10
2.600 92180-0027 60 3.125 92180-0048 13
2.625 92180-0028 63 3.150 92180-0049 15
2.650 92180-0029 65 3.175 92180-0050 18
2.675 92180-0030 68 3.200 92180-0051 20
2.700 92180-0031 70 3.225 92180-0052 23
2.725 92180-0032 73 3.250 92180-0053 25
2.750 92180-0033
75
3.275 92180-0054 28
2.775 92180-0034 78 3.300 92180-0055 30
2.800 92180-0035 80 3.325 92180-0056 33
2.825 92180-0036 83 3.350 92180-0057 35
2.850 92180-0037 85 3.375 92180-0058 38
2.875 92180-0038 88 3.400 92180-0059 40
2.900 92180-0039 90 3.425 92180-0060 43
2.925 92180-0040 93 3.450 92180-0061 45
2.950 92180-0041 95 3.475 92180-0062 48
2.975 92180-0042 98 3.500 92180-0063 50
3.000 92180-0043 00
