PERIODIC MAINTENANCE 2-33
Periodic Maintenance Procedures
Brakes

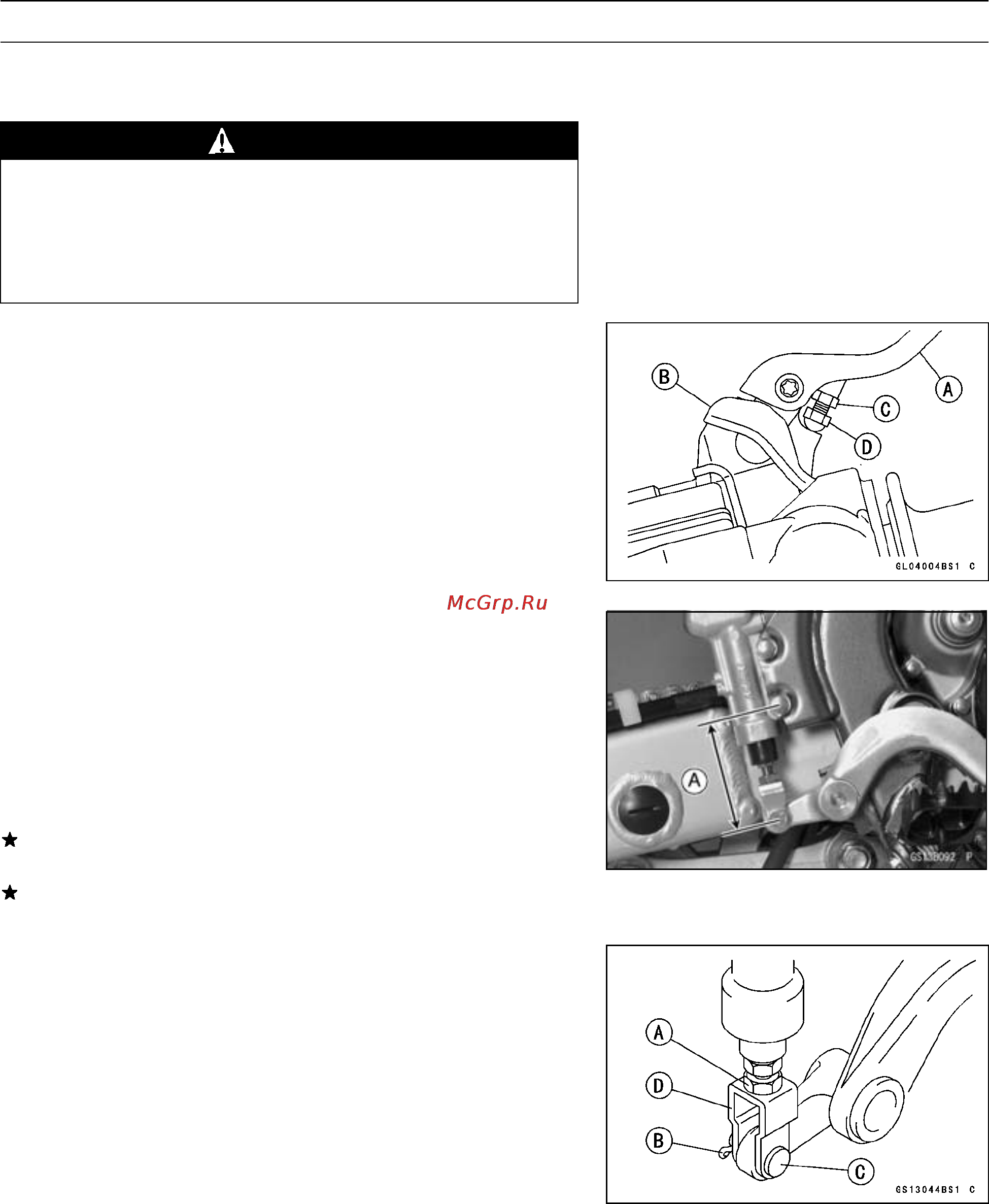

Brake Lever and Pedal Adjustment
WARNING
Always maintain proper brake adjustment. If ad-
justment is improper, the brake could drag and
overheat. This could damage the brake assembly
and possibly lock the wheel resulting in loss of
control.
•
Adjust the front brake lever [A] to suit you.
•
Slide the brake lever dust cover [B] out of place.
•
Loosen the adjuster locknut [C] and turn the adjuster [D]
to either side.
•
After adjustment, tighten the locknut.
NOTE
○
Usually it is not necessary to adjust the pedal position,
but always adjust it when the master cylinder is disas-
sembled or pedal position is incorrect.
•
Measure the length indicated in the figure.
Length [A]
Standard: 68.5 ± 1 mm (3.09 ± 0.04 in.)
If it is not specified length, the brake pedal may be de-
formed or incorrectly installed.
If it is not within the specified length, adjust the push rod
in the master cylinder as following.
○
Loosen the push rod locknut [A].
○
Replace the cotter pin with a new one.
○
Remove:
Cotter Pin [B]
Washer
Joint Pin [C]
○
Turn the bracket [D] to obtain the specified length.
○
Tighten the locknut.
Torque - Rear Ma ster Cylinder P ush Rod Locknut: 17 N·m
(1.7 kgf·m, 12.5 ft·lb)
