ENGINE TOP END 5-13

Camshaft

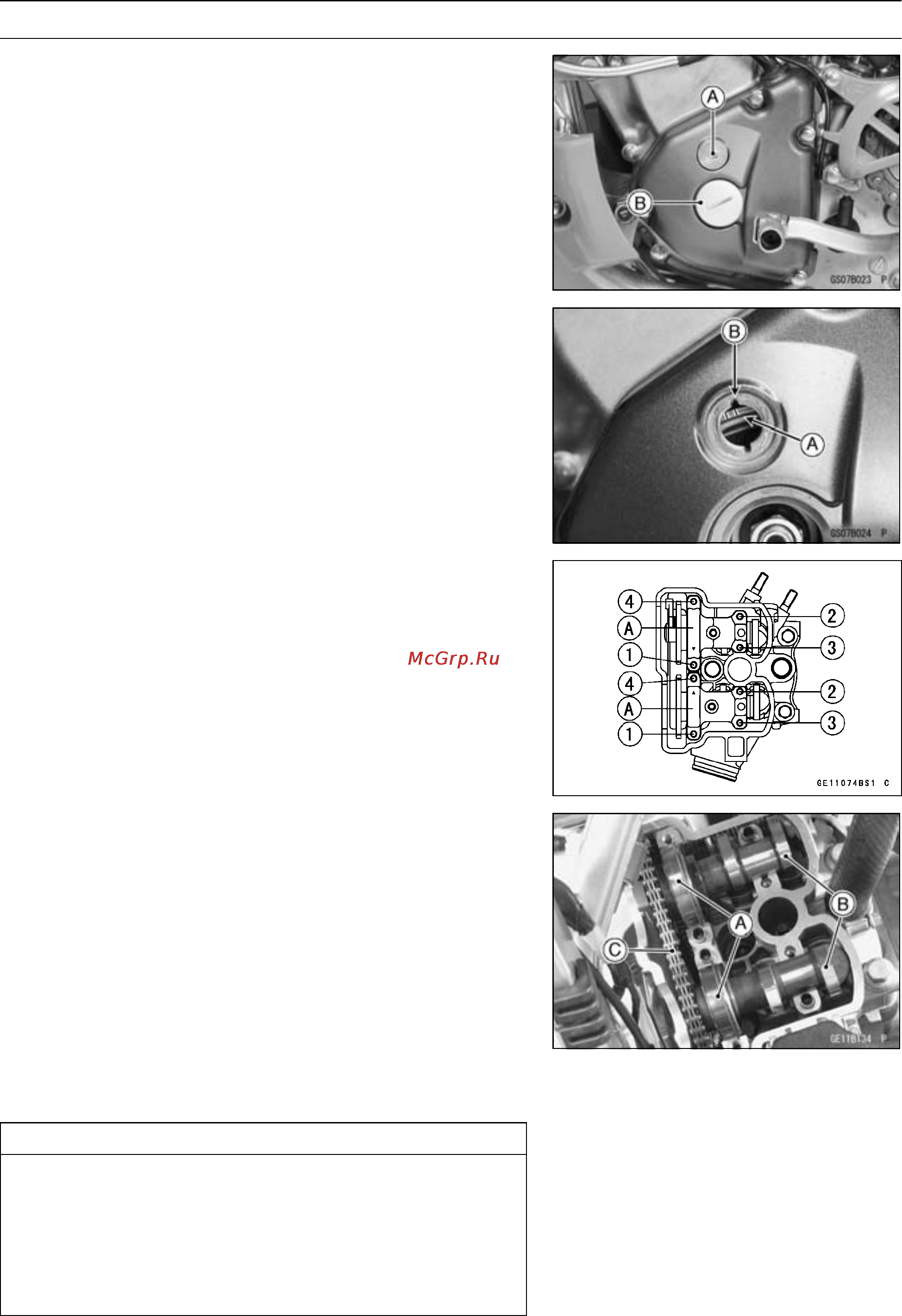

Camshaft Removal

•

Remove:

Cylinder Head Cover (see Cylinder Head Cover Re-

moval)

Timing Inspection Cap [A]

Flywheel Cap [B]

•

First, bring the piston to the TDC (of either the compres-

sion or exhaust stroke).

○

Place a wrench over the flywheel nut and turn it counter-

clockwise to align the TDC mark [A] with the center of the

groove [B] of the inspection hole.

•

Remove:

Camshaft Chain Tensioner (see Camshaft Chain Ten-

sioner Removal).

Camshaft Cap Bolts [1 ∼ 4] (sequence numbers)

Camshaft Caps [A]

•

Remove:

Positioning Rings [A]

•

Disengage the C amshafts [B] from camshaft chain [C].

•

Staff a clean cloth into the camshaft chain t unnel to keep

any parts from dropping into the crankcase.

CAUTION

The crankshaft may be turned while the camshafts

are removed.

Always pull the chain taut while turning the crank-

shaft. This avoids kinking the chain on the lower

(crankshaft) sprocket. A kinked chain could dam-

age both the chain and the sprocket.
