12-8 BRAKES

Brake Lever, Brake Pedal

Brake Lever Play Adjustment

•

Refer to the Brake Lever Play Adjustment in Periodic

Maintenance chapter.

Brake Pedal Position/Pedal Play Adjustment

•

Refer to Brake Pedal Position/Pedal P lay Adjustment in

Periodic Maintenance chapter.

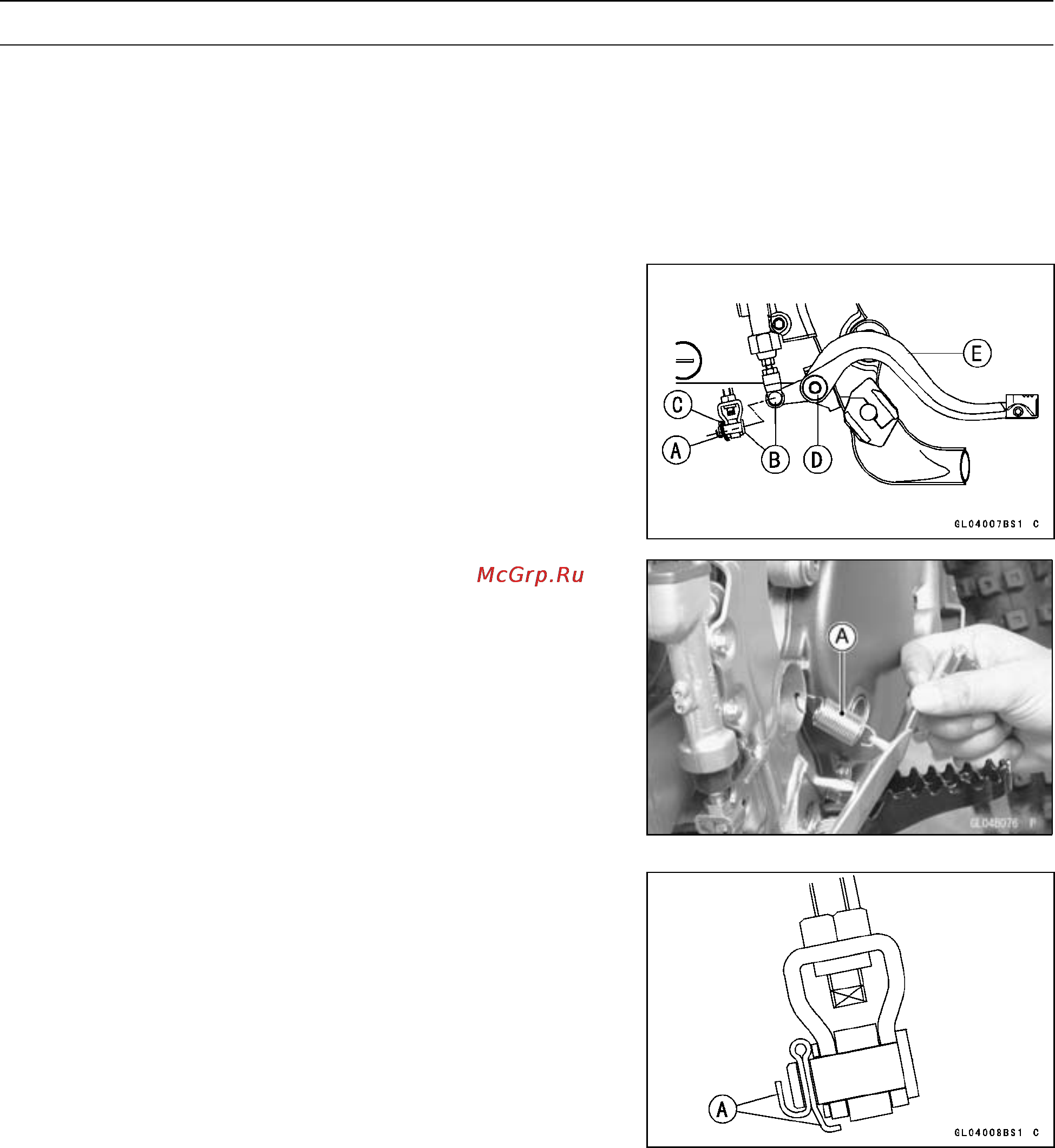

Brake Pedal Removal

•

Remove:

Cotter Pin [A]

Joint Pin [B]

Washer [C]

•

Remove the mounting bolt [D] and take off the brake pedal

[E] and return spring.

Brake Pedal Installation

•

Replace O-rings with new one and apply high tempera-

ture grease to the O -rings.

•

Apply high temperature grease to the shaft portion of the

brake pedal, and install the pedal with return spring onto

the frame.

○

Install the return spring direction [A] as shown.

Torque - Brake Pedal M ounting Bolt : 2 5 N·m (2.5 kgf·m, 18

ft·lb)

•

Check the brake pedal position.

•

Install the joint pin, washer and a new cotter pin.

○

Bend the ends [A] of t he cotter pin.
